Aluminum Alloy CD Stud Insulation Welding Pins With Self Locking Washers

Large Image : Aluminum Alloy CD Stud Insulation Welding Pins With Self Locking Washers

Product Details:

Place of Origin:	china
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	CD Stud Insulation Welding Pins

Payment & Shipping Terms:

Minimum Order Quantity:	20000 pcs
Packaging Details:	500pcs/1000 per bag in carton ,then on pallet
Delivery Time:	10 days after confirm the order
Payment Terms:	L/C, T/T
Supply Ability:	100,000 pcs per week

Contact Now

Aluminum Alloy CD Stud Insulation Welding Pins With Self Locking Washers

Description

Name:	CD Stud Insulation Welding Pins	Materia:	Aluminum Alloy ,stainless Steel ,mild Steel
Surface Treatment:	Polished, Galvanized,copper Coated	Pin Dia:	2.7mm,3mm In Common ,other To Be Request
Pin Length:	10mm-500mm	Pin End:	Sharp,flat To Be Request
Sample:	Support	Install:	Self Locking Washer ,dome Cap Washer
Highlight:	aluminum alloy stud welding pins , self locking washers welding pins , CD stud insulation welding pins

Aluminum Alloy CD Stud Insulation Welding Pins With Self Locking Washers

Quick Details Of Aluminum Alloy CD Stud Insulation Welding Pins:

Product name :CD stud insulation welding pins ,CD weld pins ,weld stud pins
Material treatment :aluminum alloy ,mild steel and stainless steel
Material choose :must be anneaded mild steel wire , anneaded stainless steel wire, copper wire is for specifical order
Pin diameter: usually 2.7mm,3.0mm in common,other 1mm-5mm to be request
Pin length : 65mm,100mm in common ,10mm-500mm to be request
Surface treatment :polished for aluminum alloy and stainless steel , copper plated , zinc coated for mild steel
Accessories :self locking washer , dome cap washer
Usage: fixing insulation material on board for marine
Features: easy welding, easy bending, easy installing
Fixing part :square self locking washer,round self locking washer ,dome cap washer , PE cap with speed clips

Specification Of Aluminum Alloy CD Stud Insulation Welding Pins:

Aluminum Stud Welding Pins

Material :aluminum alloy

Pin dia :2.7mm,3.0mm in common

Pin length :70mm, 100mm ,other to be request

Accessories :self locking washer ,dome cap washer

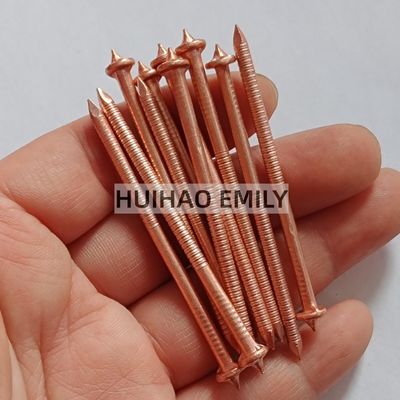

Copper coated Stud Welding Pins

Material :mild steel

Pin dia :1.0mm,1.5mm,2.0mm,

2.7mm,3.0mm,3.4mm,4mm,5mm

Pin length :10mm-500mm

Accessories :self locking washer ,dome cap washer

Galvanzied Stud Welding Pins

Material :mild steel

Pin dia :1.0mm,1.5mm,2.0mm,

.7mm,3.0mm,3.4mm,4mm,5mm

Pin length :10mm-500mm

Accessories :self locking washer ,dome cap washer

Stainless steel Stud Welding Pins

Material :stainless steel 304,316,316L

Pin dia :2.7mm,3.0mm in common

Pin length :45mm-500mm

Accessories :self locking washer ,dome cap washer

Accesories Of Aluminum Alloy CD Stud Insulation Welding Pins:

Aluminum Alloy CD Stud Insulation Welding Pins With Self Locking Washers 5

HUIHAO COMPANY not only product customized CD stud welding pins ,but also supply install accessories :square self locking washer ,round self locking washer ,metal dome cap washer ,PE+METAL speed clips ,the material can be stainless steel ,galvanized steel ,copper coated ,aluminum ,the size can be make according your request ,if you have inquiry ,pls contact ms emily by :emily2huihaomesh.com

Package Of Aluminum Alloy CD Stud Insulation Welding Pins:

Package of aluminum alloy CD stud insulation welding pins

>> Package
1. 1000/5000pcs per carton. 64 cartons per pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO COMAPNY :

HUIHAO company is a insulation

fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :

1.perforated base insulation pins

2.self adhesive pins

3.CD weld pins

4.Bimetallic pin

5.Cup head weld pins

6.Lacing Anchors&Quilting pins &lacing hooks washer

7.all kinds of self locking washers, Dome caps.
