High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin

High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin
High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin

Large Image :  High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO
Model Number: Bi-metallic stud welding pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1)20-25kgs/CTN, 2)50lb/CTN, 3)30lb/Bucket, 4)5kgs/Box, 4)1kg/Bag etc.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union , paypal
Supply Ability: 300Ton/Tons per Month

High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin

Description
Product Name: Bimetal Capacitor Discharge (CD) Pins, Weld Stud Pin Material: Aluminum 5000 Series
Pin Diameter: 12ga 3mm 10ga 4mm 5mm 6mm Base Size: 8mmx12mm
Base Material: Aluminum 5000 Series Length: 25mm-110mm
High Light:

copper plated insulation pins

,

cd weld pins

                                      Bimetal Capacitor Discharge (CD) Pins, Weld Stud



>>>>>> Introduction

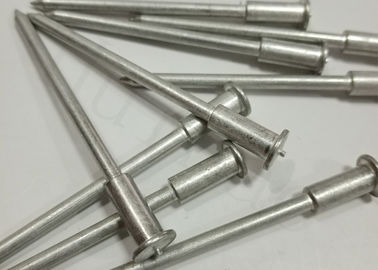

1. Aluminum 5000 Series Bimetal Insulation Pins



High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin 0

Pin Material:Aluminum 5053

Pin Diameter:3mm 4mm 5mm 6mm

Pin Material:Aluminum 5053

Base Size:8mmx12mm

Weld Point:1mm

Flange Thickness:1mm

Length:25mm-110mm



Note: Aluminum 5053 grade material is with enough hardness and good welding performance.



Material Pin Diameter Insulated Head Size Total length
Aluminum 5000 Series 3mm 4mm 5mm 6mm 8mmx12mm 25mm-300mm





2. Annular Groove (Navy) Bi-Metallic Pins



High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin 1

Pin Material:Stainless Steel

Pin Diameter:12GA Or 10GA

Base Size:5/16" x 1/2"

Bsee Material:Aluminum 5000 series










Material Pin Diameter
Pin is stainless steel, Base is aluminum 10 GA (0.135 Dia)  Or 12 GA (0.105 Dia)
Length of Bi-Metallic Pins packages details
7/8" 1000pcs per bag/5bags per carton
1" 1000pcs per bag/5bags per carton
1-7/8" 1000pcs per bag/3bags per carton
2-7/8" 1000pcs per bag/3bags per carton
3-7/8" 1000pcs per bag/2bags per carton

3. Bimetal Capacitor Discharge (CD) Pins, Weld Stud

High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin 2

Pin Material:stainless steel or copper coated steel or zinc coated steel

Pin Diameter: 10GA (0.135" Dia)

Base Material:Aluminum

Base Size: 6mmx15mm

Length:25mm-110mm

High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin 3

Pin Material:stainless steel or copper coated steel or zinc coated steel

Pin Diameter: 3mm

Base Material:Aluminum

Base Size: 6mmx15mm

Length:25mm-110mm



Material Pin Diameter
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum 10 Ga, 0.135 (3.4mm)  3mm
length of Bi-Metallic Pins package details
1-1/2" 1000pcs per bag/3bags per carton
2" 1000pcs per bag/3bags per carton
2-1/2" 1000pcs per bag/2bags per carton
3" 1000pcs per bag/2bags per carton
3-1/2" 1000pcs per bag/2bags per carton
4" 1000pcs per bag/2bags per carton
4-1/2" 1000pcs per bag/2bags per carton
5" 500pcs per bag/3bags per carton
6" 500pcs per bag/3bags per carton



>>>>>> Related Products



Self - Extinguishing Insulation Pins And Clips With Or Without Plastic CoatedSelf - Extinguishing Insulation Pins And Clips With Or Without Plastic Coated



Item Clip without plastic coated
Material Galvanized steel, Stainless Steel
d1 38mm,60mm etc.
d2 2mm, 2.7mm, 3mm, 4mm, 5mm, 6mm etc.



Self - Extinguishing Insulation Pins And Clips With Or Without Plastic CoatedSelf - Extinguishing Insulation Pins And Clips With Or Without Plastic Coated



Item Clip with plastic coated
Material Galvanized steel, Stainless Steel
d1 40mm etc.
d2 2mm, 2.7mm, 3mm, 4mm, 5mm, 6mm etc.




>>>>>> Package And Delivery



Packing:

500 or 1000 units per plastic bag and then put the bags into carton , also could be packed as request .



Delivery methods:

Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.

3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads
