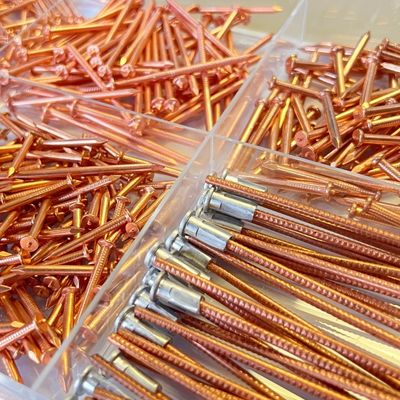

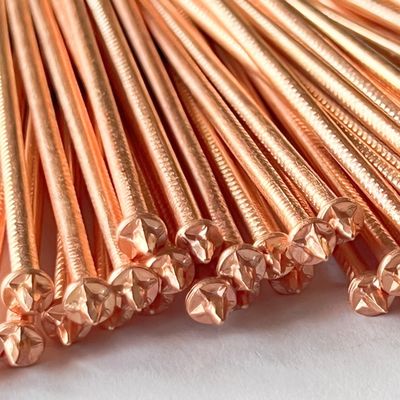

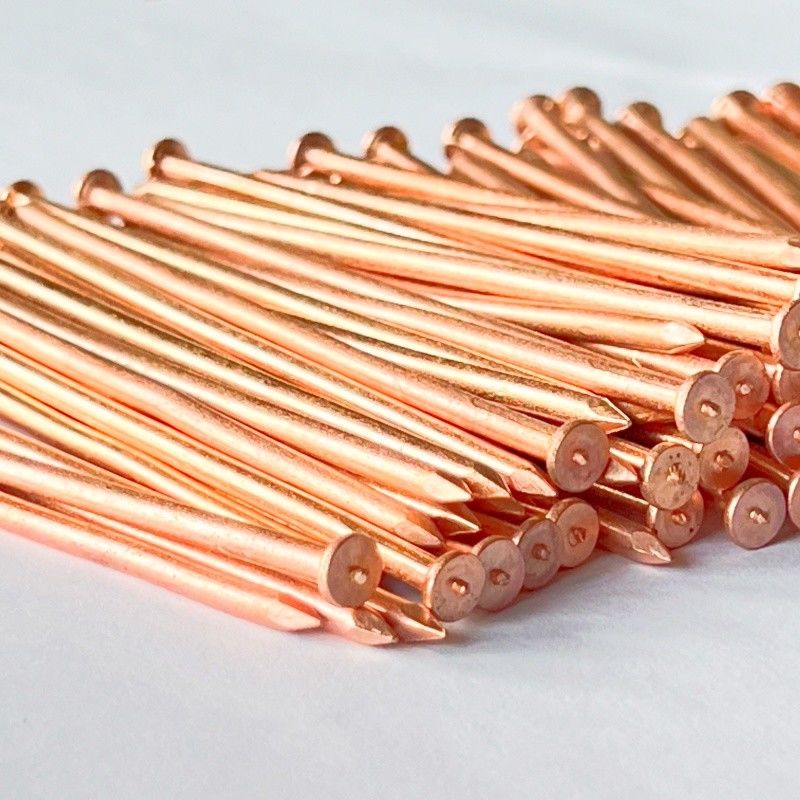

Different length Soft CD Weld Pin For Marine Insulation

Large Image : Different length Soft CD Weld Pin For Marine Insulation

Product Details:

Place of Origin:	CHINA
Certification:	ISO9001:2015
Model Number:	cd weld pin

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pcs
Packaging Details:	carton + pallet
Delivery Time:	within 7 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000000 pcs

Contact Now

Different length Soft CD Weld Pin For Marine Insulation

Description

Name:	CD Insulation Weld Pin	Material:	Carbon Steel
Pin Dia:	2.7mm, 3mm, 3.4mm	Pin Length:	15mm - 350mm
Finished:	Copper Coated	Application:	Attach Insulation To Ducts, Ovens, Boilers And Hot ,cold Equipment
Highlight:	Marine Insulation Weld Pin , Soft CD Weld Pin , Marine Insulation CD Weld Pin

Type: CD Weld Pins

Material:Stainless Steel , Mild Steel , Aluminum

Sizes Length : 1/2" - 15.8"

Diameter: 10GA, 11GA,12GA, 14GA

Application:CD weld pins Used to attach insulation to ducts, ovens, boilers and hot or cold equipment .

Diameter	Flange Diameter	Flange Diameter	Length
	(Steel)	(Aluminum)
14 GA	.218	.255	As Required
12 GA	.218	.255	As Required
11 GA	.218	.255	As Required
10 GA	.218	.255	As Required

Marine Galvanized CD Weld Pin

Marine Galvanized CD Weld Pins are specialized fasteners designed for marine applications. These marine galvanized cd weld pins are made from galvanized steel, which provides enhanced corrosion resistance, making them suitable for use in marine environments where exposure to moisture and saltwater is prevalent.

Aluminum CD Weld Pin

The Aluminum CD Weld Pin is a specialized fastener designed for various applications that require lightweight and corrosion-resistant properties.

for the material we usually choose different series aluminum to ensure the welding. include 1100 aluminum and 6050 aluminum. the length is from 40mm to175mm.

Marine steel CD Weld Pin

Marine Copper CD Weld Pin find widespread application in the securement of insulation, fabrication of sheet metal assemblies, and attachment of components onto metal surfaces. it is most popular in mild east market. and the weld pin length can be get to 350mm. the most thickness of weld pin diameter is 5mm in common.

Stainless Steel Marine CD Weld Pin

The Stainless Steel Marine CD Weld Pin is a specialized fastener designed for marine applications requiring exceptional corrosion
resistance. These stainless steel marine cd weld pins are making them highly durable and able to withstand the harsh marine environment, including exposure to moisture, saltwater, and corrosive elements.

Package Details of Cd Weld Pin

According to the weld pin length and materials to choose different package, the common package as follows:

WELD PIN LENGTH	ALUMINUM	STAINLESS STEEL	STEEL
25MM-50MM	1500PCS /BOX, 6 BOXES PER CARTON	1500 PCS PER BOX	1500PCS PER BOX
65MM-75MM	1000PCS/BOX, 6 BOXES PER CARTON	1000PCS/BOX	1000PCS/BOX
85MM-100MM	800 PCS /BOX, 6 BOXES PER CARTON	800PCS/BOX	800PCS/BOX
110MM-130MM	500 PCS /BOX 6 BOXES PER CARTON	500PCS /BOX	500PCS/BOX
