Aluminum Alloy Capacitor Discharge (CD)Stud Welding Pins For Marine Insulation

Large Image : Aluminum Alloy Capacitor Discharge (CD)Stud Welding Pins For Marine Insulation

Product Details:

Place of Origin:	china
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	CD stud welding pins

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	500pcs/1000 per bag in carton ,then on pallet
Delivery Time:	10 days after confirm the order
Payment Terms:	L/C, T/T
Supply Ability:	100,000 pcs per week

Contact Now

Aluminum Alloy Capacitor Discharge (CD)Stud Welding Pins For Marine Insulation

Description

Name:	CD Stud Welding Pins	Material:	Aluminum Alloy ,stainless Steel ,mild Steel
Surface Treatment:	Polish	Pin Dia:	M4,other To Be Request
Pin Lenght:	To Be Request	Accessories:	Self Locking Washer ,dome Cap Washer
Sample:	Support	Service:	DDP By Sea Or By Air
Highlight:	aluminum alloy stud welding pins , marine insulation stud pins , CD stud welding pins

Aluminum Alloy Capacitor Discharge (CD)Stud Welding Pins For Marine Insulation

Quick details of Capacitor Discharge (CD)Stud Welding Pins :

Material treatment :Galvanized steel ,mild steel and stainless steel
Pin dia: 1mm-5mm to be request
Pin length : 10mm-500mm
Surface treatment :polished for aluminum alloy and stainless steel , copper plated , zinc coated for mild steel
Accessories :self locking washer , dome cap washer
Application: On marine/boat for fixing board material,fixing rock woool in power plant etc
Features: easy welding, easy bending, easy installing

HUIHAO company has been worked for insualtion fasteners more than 10 years ,we suppor

customized service for the pin type and size ,at the same time we also supply self locking

washer and fome cap washer to install the CDpin ,if you have inquiry ,pls contact ms emily :

emily2huihaomesh.com .we will qupote you competitive price based on good quality

Specification of Capacitor Discharge (CD)Stud Welding Pins :

M4X70mm(CD)Stud Welding Pins

Material :aluminum alloy ,stainless steel to be request

Pin dia :M4,other to be request

Pin length :70mm, other to be request

Accessories :self locking washer ,dome cap washer

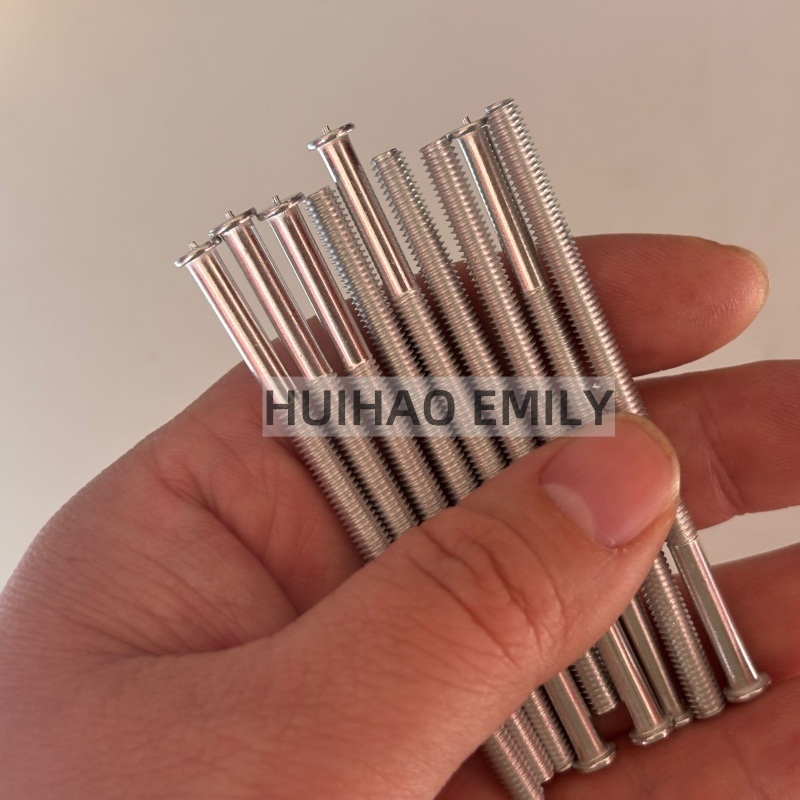

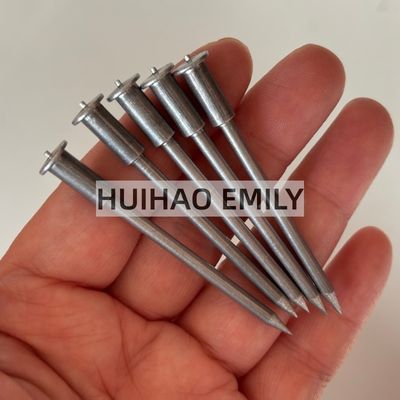

Aluminum CD Stud Welding Pins

Material :aluminum alloy ,stainless steel ,galvanized steel ,copper coated

Pin dia :1mm-5mm to be request

Pin length :10mm-500mm

Accessories :self locking washer ,dome cap washer

Aluminun Stud Welding Gun

Material :aluminum alloy

Base size :5mmx12mm

Pin length :3mmx60mm ,other to be request

Accessories :self locking washer ,dome cap washer

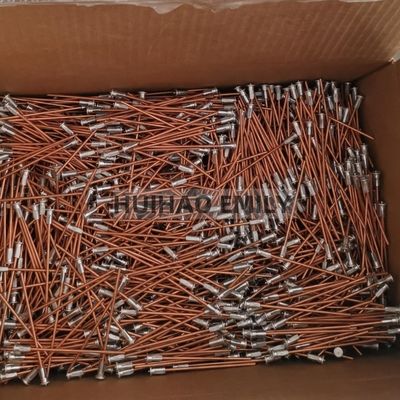

Bimetallic (CD)Stud Welding Pins

Base Material :aluminum alloy

Pin material :stainless steel ,galvanized steel

BaseSize:6mmx13mm

Pin dia :2.7mm,3.0mm

Pin length :45mm-200mm

Accessories :self locking washer ,dome cap washer

Accessories of Capacitor Discharge (CD)Stud Welding Pins :


Round self locking washer Material :stainless steel ,galvanzied steel ,copper coated Size :15mm,25mm,32mm,38mm,50mm Center hole :for fixing 2.0mm,2.7mm,3.0mm insulation fasteners	Square self locking washer Material :stainless steel ,galvanzied steel ,copper coated Size :32mm,40mm,50mm,64mm Center hole :for fixing 2.7mm,3.0mm,3.4mm ,4mm,5mm insulation fasteners

Metal dome cap washer Material :stainless steel ,galvanzied steel , aluminum-stainless steel Size :22mm,28mm,30mm,32mm,38mm Center hole :for fixing 2.0mm,2.7mm,3.0mm insulation fasteners	PE+Metal dome cap washer Cap material :PE Cap color :white ,black ,other to be request Washer :stainless steel ,galvanzied steel Size :42mm Center hole :for fixing 2.7mm,3.0mm,3.4mm ,4mm ,5mm insulation fasteners

Package of Capacitor Discharge (CD)Stud Welding Pins :

Package of Capacitor Discharge (CD)Stud Welding Pins

>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO COMPANY :

HUIHAO company is a insulation

fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :

1.perforated base insulation pins

2.self adhesive pins

3.CD weld pins

4.Bimetallic pin

5.Cup head weld pins

6.Lacing Anchors&Quilting pins &lacing hooks washer

7.all kinds of self locking washers, Dome caps.

Tag:

Contact Person: emily

Tel: 86-18032788121

Fax: 86-1336-3891298
