3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder

Large Image : 3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO
Model Number:	CD Stud Welding Pin

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pcs
Packaging Details:	300pcs per bag or 500 pcs per bag, then put into cartons, or packed as request
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500000 PCS per 20 Days

Contact Now

3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder

Description

Product Name:	CD Stud Welding Pin	Application:	Fasten Insulation Material On Metal Surface
Material:	Copper Coated Steel, Galvanized Steel, Stainless Steel, Aluminium	Diameter:	1-5mm
Package:	Carton Box	Length:	10-475mm
Customization:	Support	Small Orders:	Support
Door To Door Service:	Support	Samples:	Support
Highlight:	3mm Stud Welding Pin , Copper Coated Stud Welding Pin , Insulation Fastening Stud Welding Pin

3mm SS & Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder

Product Description Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

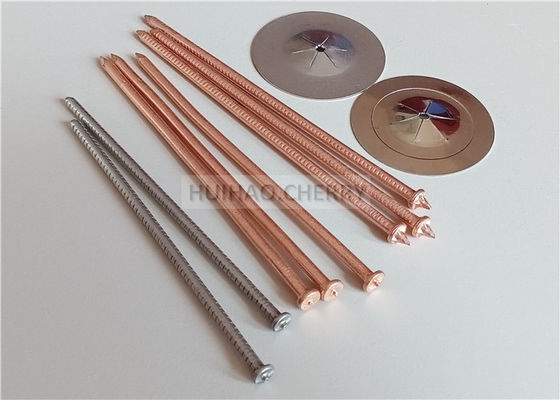

CD Stud Welding Pin made from stainless steel or copper coated steel or aluminum, are widely used for insulation fastening work on metal surfaces. A Capacitor Discharge Stud Welder is needed for this insulation fastening work. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.

If you are in need of CD Stud Welding Pin, please feel free to ask me a price or a sample, our weld pins are with well welding performance and good price, and my email is cherry@huihaomesh.com

Thank you for your valuable time, and hope you have a nice day.

Item	CD Stud Welding Pin For Insulation Fastening Work
Material	Stainless Steel, Copper Coated Steel, Galvanized Seel, Aluminum
Length	As your request (length could be 10-475mm)
Diameter	As your request (diameter could be 1-5mm)
Features	Standard weld points, easy welding Pins soft, easy bending over Sharp points,easy going through any insulation blanket
Supply capability	10000 Pcs/hour
Remark	Technical parameters are available upon request

Accessories Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

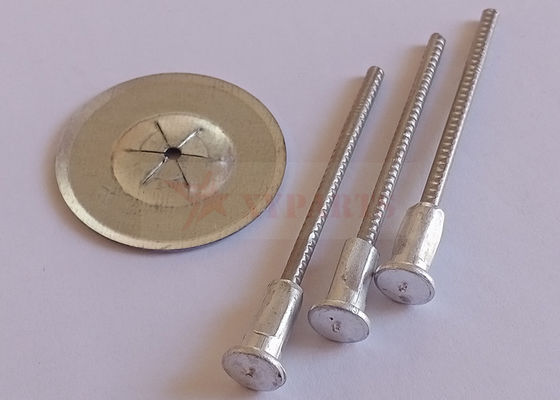

We offer all different kind of self-locking washers/clips to fasten the insulation material on metals surface with CD Stud Welding Pins.

Item	Material	Diameter
Square Self-Locking Washers	Stainless Steel	32mm, 38mm, 50mm, 60mm, 63.5mm
	Galvanized Steel	32mm, 38mm, 50mm, 60mm, 63.5mm
	Aluminum	32mm, 38mm, 50mm, 60mm, 63.5mm
Round Self-Locking Washers	Stainless Steel	25mm, 30mm, 38mm, 50mm
	Galvanized Steel	25mm, 30mm, 38mm, 50mm
	Aluminum	25mm, 30mm, 38mm, 50mm
Self-Locking Caps	Stainless Steel	22mm, 28mm, 30mm, 38mm, 40mm
	Galvanized Steel	22mm, 28mm, 30mm, 38mm, 40mm
	Aluminum	22mm, 28mm, 30mm, 38mm, 40mm

Applications Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

Step 1. Welding the CD Stud Welding Pin in to place
Step 2. Hang the insulation on the weld pins
Step 3. Press washers on the weld pins to secure the insulation

Step 4. Either clip off the weld pins at washer or bend the weld pins over washer

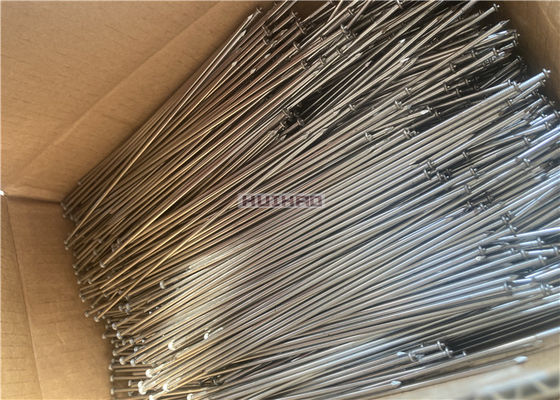

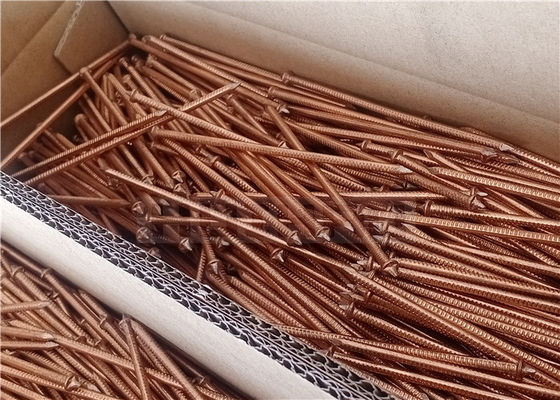

Package Of CD Stud Welding Pin For Insulation Fastening Work Use With A Capacitor Discharge Stud Welder:

1. 500pcs, 800pcs, 1000 pcs per box (according the pin length ),

2. 6 boxes in one carton,

3. then in one pallet

4. the package can be according your request

Certificate Of Huihao Hardware Mesh Product Limited:

3mm SS Copper Coated CD Stud Welding Pin For Insulation Fastening Work Use With Capacitor Discharge Stud Welder 4
