12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation

12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation
12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation
12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation

Large Image :  12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation

Product Details:
Place of Origin: China
Brand Name: HUIHAO CUSTOM
Certification: ISO
Model Number: Cup Head Weld Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD0.03-0.10/PC
Packaging Details: 2000 pcs / 3000 pcs/ 5000 pcs per carton or according to requirement.
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T,
Supply Ability: 5,000,000pcs per 30 days
Contact Now

12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation

Description
Product Name: Insulation Cupped Head Weld Pins Material: Galvanized Steel For The Pin And Plate
Pin Diameter: 2.0 Mm, 2.7 Mm,3.0 Mm,3.4 Mm Etc Head Type: With Or Without Insulated Paper/film
Cup Diameter: 30 Mm(1 3/16'') Pin Length: 15 Mm, 25 Mm,38 Mm,63 Mm,90 Mm,110 Mm, Etc
Usage: Duct Liner Insulation Packing: Boxes Or Plastic Buckets , Then Onto Pallet
Highlight:

HVAC Insulation weld pins

,

12 Ga weld pins

,

38 mm weld pins

12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation

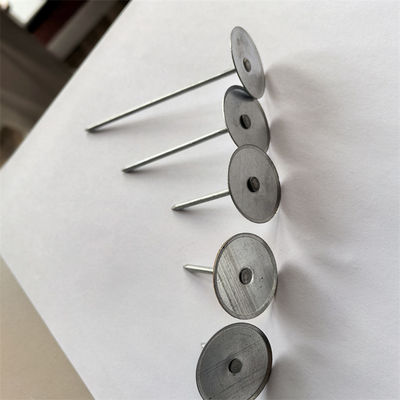

Introduction Of Insulation Cupped Head Weld Pins

Insulation cupped head pins are made of a weld pin with a retaining head that are used in commercial and industrial applications to secure insulation material in place. They can also be used as a hookless lacing anchor to secure insulation inside fabricated blankets.

  • Name:Cupped head weld pins also  named cup head weld pins and self sealing pins

  • Head Material: Galvanized steel

  • Pin material :Galvanized steel , Copper steel , also could be stainless steel .

  • Head Edge: Beveled edge washer to prevent cutting of insulation material.

  • Head Diameter: 30mm cup base

  • Head Base: 0.4mm/0.5mm

  • Head Type: With or without insulated paper / insulated film

  • Pin Diameter: 2.7mm, 3.0mm, 3.4mm etc.

  • Pin Length: 15mm, 25mm, 38mm, 50mm, 63mm, 75mm, 100mm, 120mm ,200mm etc.

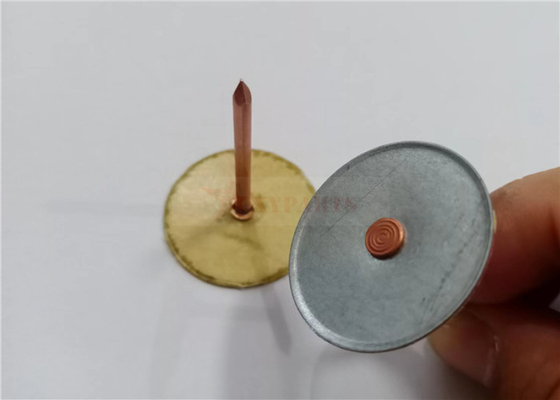

Cup Head Type for the Insulation Cupped Head Weld Pins
Without insulated  With insulated paper With insulated film
12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 0



12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 1


The Specifications Of Insulation Cupped Head Weld Pins

       Specs of the Insulation Cupped Head Weld Pins
Material Length Pin Diameter  Cup Head Diameter
Galvanized Steel 3/8" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1/2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 3/4" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 7/8" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1-1/8" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1-1/4" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1-1/2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1-5/8" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 1-7/8" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 2-1/8" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 2-1/4" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 2-1/2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 3" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 3-1/2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 4" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 4-1/2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 5" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 5-1/2" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Galvanized Steel 6" 10Ga,11Ga,12Ga,14Ga,etc 1 3/16''
Note The pins length /pin diameter /head diameter could be customized for big order .




Application of the Insulation Cupped Head Weld Pins



12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 2

Item: Insulation Cupped Head Weld Pins

Application: used for fastening insulation material on metal surface

Step:

1. Hanging the insulation
2. Directly weld the weld pins through the insulation materials
Recommended for Pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1" insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2" insulation(1-1/2"-2" ib density) 37.95mm
2" insulation(3ib densities) 48.77mm
3" insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

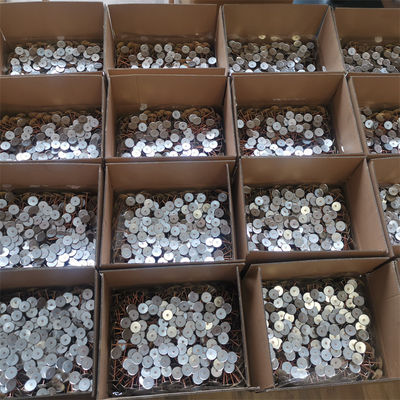

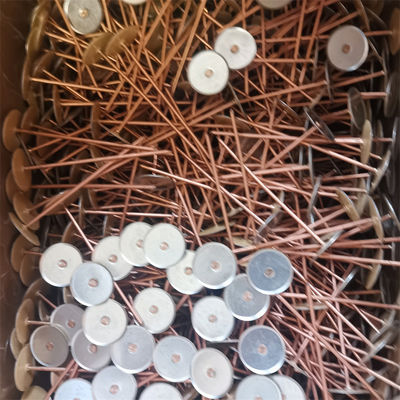

Package Of The HUIHAO CUSTOM Insulation Cupped Head Weld Pins

  •  Packing with Boxes and Pallets.
  • Pin quantity in each box is via the pin length .
  • Box could print or stick the labels as request for big order .
  • The pin could also be packed with plastic bucket for safety.

12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 312 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 4

Certificate Of Hardware Mesh Product Limited:



12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation 5



1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material and the size all could be customized.

3. Can i get samples?
Yes, we have free samples for you to check the quality.

4. How do you control and ensure product quality?

1) Confirm with you every details before quoting.

2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.

4) We will send you videos and pictures during the production and shipment process.

5. What's your advantages?

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.
