Galvanized Steel Self Sealing Pins With Cup Head Base For HVAC Insulation

Large Image : Galvanized Steel Self Sealing Pins With Cup Head Base For HVAC Insulation

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO
Model Number:	Cup Head Weld Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD0.03-0.10/PC
Packaging Details:	2000 pcs / 3000 pcs/ 5000 pcs per carton or according to requirement.
Delivery Time:	8-15 work days
Payment Terms:	L/C,T/T,
Supply Ability:	5,000,000pcs per 30 days

Contact Now

Galvanized Steel Self Sealing Pins With Cup Head Base For HVAC Insulation

Description

Product Name:	Self Sealing Pins	Material:	Galvanized Steel In Normal
Pin Diameter:	10Ga,11Ga,12Ga,14Ga, Etc	Cup Diameter:	30 Mm(1 3/16'')
Pin Length:	15 Mm-300 Mm Etc	Usage:	Duct Liner Insulation
MOQ:	10000 Pcs	Packing:	Boxes Or Plastic Buckets , Then Onto Pallet
Highlight:	Galvanized Steel Self Sealing Pins , HVAC Insulation Self Sealing Pins , Cup Head Base Self Sealing Pins

Galvanized Steel Self Sealing Pins With Cup Head Base For HVAC Insulation

Product Specifications

Attribute	Value
Product name	Self Sealing Pins
Material	Galvanized steel in normal
Pin Diameter	10Ga,11Ga,12Ga,14Ga, etc
Cup diameter	30 mm(1 3/16'')
Pin Length	15 mm-300 mm etc
Usage	Duct liner insulation
MOQ	10000 pcs
Packing	Boxes or plastic buckets, then onto pallet

Product Description

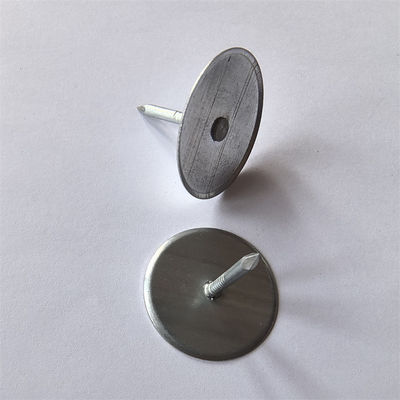

HUIHAO Self Sealing Pins are mild steel fabricated parts consisting of a weld pin and a stacked speed clip or retaining washer. The head diameter is 1-3/16″. These pins are typically applied using a capacitor discharge (CD) welder and are made from galvanized steel (both head and plate) as standard.

Name: Self Sealing Pins, also named cup head weld pins
Material: Galvanized steel (standard for both pins and plates)
Head: 30 mm(1 3/16'') Beveled edge washer
Head Base: 0.4-0.5mm
Pin Diameter: 12Ga(2.7mm) common, also available in 14Ga,11Ga,10 Ga, etc

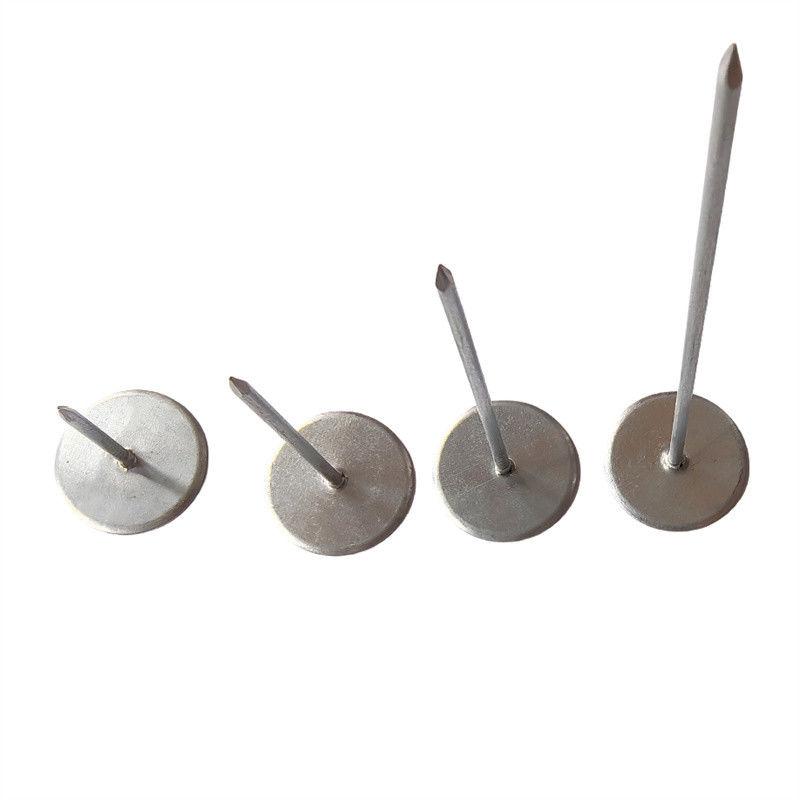

Pin Length: Customizable from 15mm -300 mm

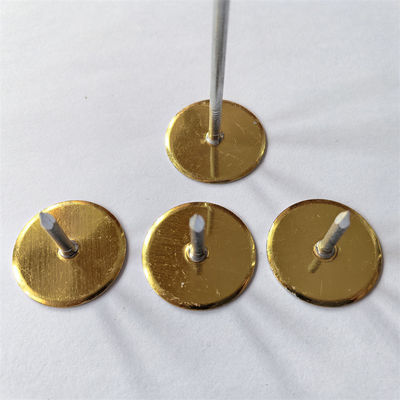

Head type: Without insulated, with insulated paper, or with insulated film

Cup Head Types

From left: Without insulated, With insulated paper, With insulated film

Detailed Specifications

Material	Length	Pin Diameter	Cup Head Diameter
Galvanized Steel	3/8"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1/2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	3/4"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	7/8"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1-1/8"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1-1/4"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1-1/2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1-5/8"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	1-7/8"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	2-1/8"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	2-1/4"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	2-1/2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	3"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	3-1/2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	4"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	4-1/2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	5"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	5-1/2"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''
Galvanized Steel	6"	10Ga,11Ga,12Ga,14Ga,etc	1 3/16''

Note: The pins length, pin diameter, and head diameter can be customized for large orders.

Application

Item: Self Sealing Pins / cup head weld pins

Application: Used for fastening insulation material on metal surface

Installation Steps:

Hanging the insulation
Directly weld the weld pins through the insulation materials

Recommended for	Pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1" insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2" insulation(1-1/2"-2" ib density)	37.95mm
2" insulation(3ib densities)	48.77mm
3" insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm

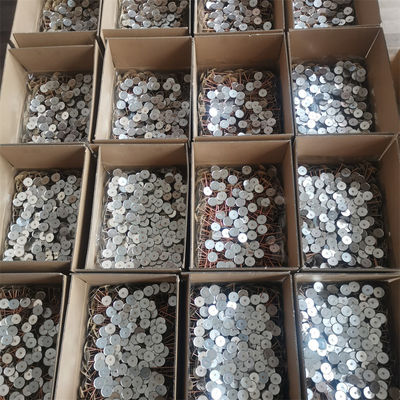

Packaging

Packed in boxes and on pallets
Pin quantity per box varies by pin length
Custom labeling available for large orders
Optional plastic bucket packaging for safety

Certifications

Frequently Asked Questions

1. Are you a manufacturer or a trader?

We are a manufacturer, located in Hebei province, China.

2. Do you support product customization?

Yes, the material and the size can be customized.

3. Can I get samples?

Yes, we provide free samples for quality evaluation.

4. How do you control and ensure product quality?

Confirm all details before quoting
Reconfirm all details before production
Implement "IATF 16949 Quality Management System" standards
Provide production and shipment updates with videos and photos

5. What are your advantages?

Competitive pricing as direct manufacturers
Automated production ensures on-time delivery
Products meet international quality standards
Comprehensive after-sale service

For pricing inquiries, sample requests, or product details, please contact us at david@huihaomesh.com
