Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation

Large Image : Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO
Model Number:	Cup Head Weld Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD0.03-0.10/PC
Packaging Details:	2000 pcs / 3000 pcs/ 5000 pcs per carton or according to requirement.
Delivery Time:	8-15 work days
Payment Terms:	L/C, T/T,
Supply Ability:	5,000,000pcs per 30 days

Contact Now

Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation

Description

Product Name:	Cup-head CD Weld Pins	Material:	Galvanized Steel
Pin Diameter:	2mm,2.7mm,3.0mm,3.4mm,etc	Cup Diameter:	30 Mm(1.18'')
Pin Length:	15 Mm,19 Mm, 25 Mm,38 Mm, 63 Mm, 80 Mm, 100 Mm Etc	Usage:	Duct Liner Insulation
MOQ:	10000 Pcs	Packing:	Carton Then Pallet Or Packing As Request
Highlight:	Cup Head CD Weld Pins , Insulated Base CD Weld Pins , Duct Liner Insulation CD Weld Pins

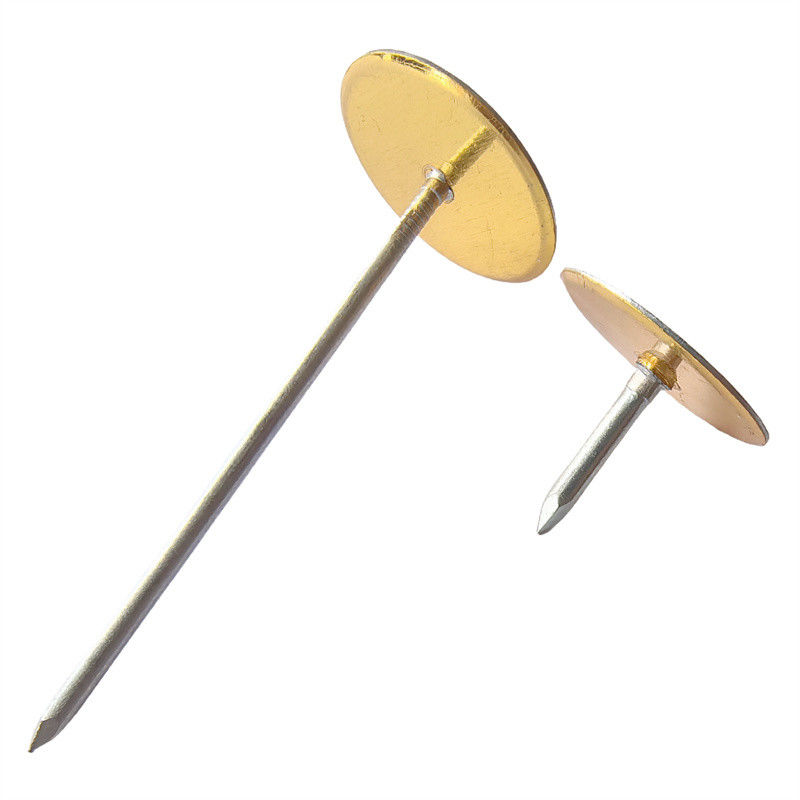

Cup-Head CD Weld Pins With Insulated Base For Duct Liner Insulation

Introduction Of Cup-Head CD Weld Pins:

HUIHAO Cup head CD Weld Pins are manufactured to attach insulation layers to metal surface, involved a lot in HVAC duct lining, air ducts, shipbuilding and maintenance, and various removable or reusable insulation covers and jackets on heating equipments.

Name:Cup-head CD weld pin, Cup head insulation pin, cup head pin,
Material: Galvanized steel pin
Head : 30 mm(1.18'') Beveled edge washer
Head Base: 0.4-0.5mm
Pin Diameter: 12Ga(2.7mm) in common , also could be 14Ga,11Ga,10 Ga, etc
Pin Length: 3/8''-12'', length could be customized.

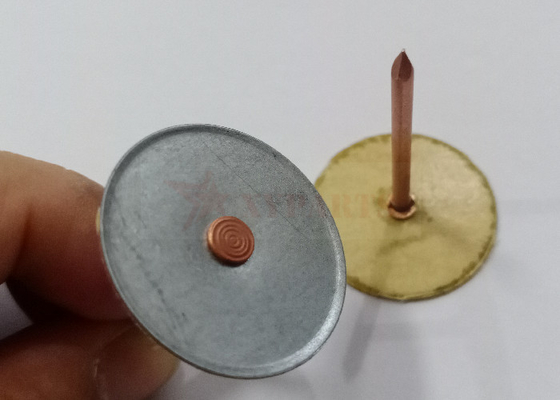

Head type:without insulated ,with insulated paper, with insulated film

Cup Head Type
Without insulated	With insulated paper	With insulated film

Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation 1

The Specifications Of Cup-Head CD Weld Pins

Specs of the Cup-Head CD Weld Pins
Material	Length	Pin Diameter	Head Diameter
Galvanized Steel	3/8"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1/2"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	3/4"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	7/8"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1-1/8"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1-1/4"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1-1/2"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1-5/8"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	1-7/8"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	2"	12Ga (2.7mm)	1.18‘’
Galvanized Steel	2-1/8"	12Ga (2.7mm)	1.18''
Galvanized Steel	2-1/4"	12Ga (2.7mm)	1.18''
Galvanized Steel	2-1/2"	12Ga (2.7mm)	1.18''
Galvanized Steel	3"	12Ga (2.7mm)	1.18''
Galvanized Steel	3-1/2"	12Ga (2.7mm)	1.18''
Galvanized Steel	4"	12Ga (2.7mm)	1.18''
Galvanized Steel	4-1/2"	12Ga (2.7mm)	1.18''
Galvanized Steel	5"	12Ga (2.7mm)	1.18''
Galvanized Steel	5-1/2"	12Ga (2.7mm)	1.18''
Galvanized Steel	6"	12Ga (2.7mm)	1.18''
Note	The pins length /pin diameter /head diameter could be customized for big order .

Application of the Cup-Head CD Weld Pins

Item: Cup Head Weld Pins

Application: used for fastening insulation material on metal surface

Step:

1. Hanging the insulation
2. Directly weld the weld pins through the insulation materials

Recommended for			Pin length before welding
1/2" insulation(all densities)			12.67mm
1" insulation(1-1/2"ib density)			17.63mm
1" foam			25.55mm
1" insulation(3ib densities)			23.72mm
1-1/2" insulation(all densities)			28.42mm
2" insulation(1-1/2"-2" ib density)			37.95mm
2" insulation(3ib densities)			48.77mm
3" insulation(all densities)			69.85mm
4" insulation(all densities)			95.00mm

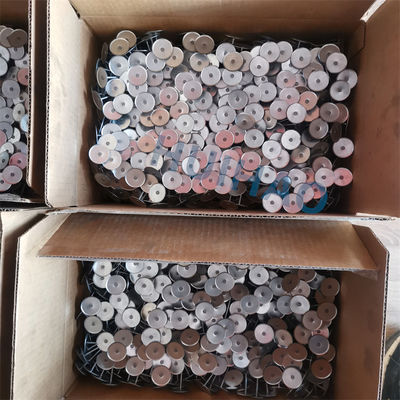

Package Of The HUIHAO CUSTOM Cup-Head CD Weld Pins

Packing with Boxes and Pallets.
Pin quantity in each box is via the pin length .
Box could print or stick the labels as request for big order .
The pin could also be packed with plastic bucket for safety.

Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation 3

Certificate Of Hardware Mesh Product Limited:

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material and the size all could be customized.

3. Can i get samples?
Yes, we have free samples for you to check the quality.

4. How do you control and ensure product quality?

1) Confirm with you every details before quoting.

2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.

4) We will send you videos and pictures during the production and shipment process.

5. What's your advantages?

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.
