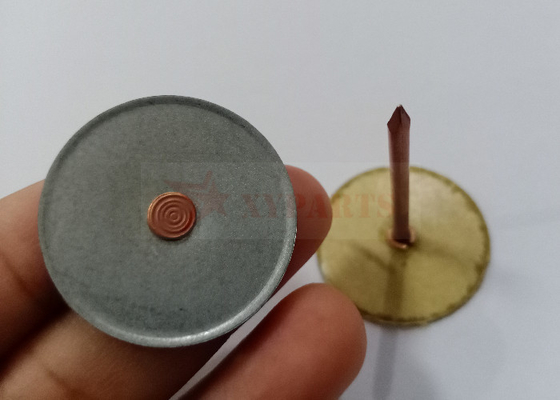

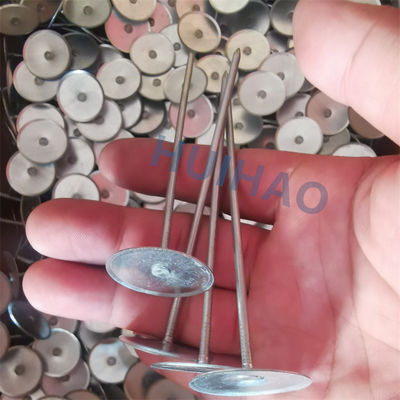

Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation

Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation
Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation
Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation

Large Image :  Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation

Product Details:
Place of Origin: China
Brand Name: HUIHAO CUSTOM
Certification: ISO
Model Number: Cup Head Weld Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD0.03-0.10/PC
Packaging Details: 2000 pcs / 3000 pcs/ 5000 pcs per carton or according to requirement.
Delivery Time: 8-15 work days
Payment Terms: L/C,T/T,
Supply Ability: 5,000,000pcs per 30 days
Contact Now

Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation

Description
Product Name: Cup Head Insulation Welded Pins Material: Galvanized Steel
Pin Diameter: 2.7mm (12Ga) Cup Diameter: 30 Mm(1.18'')
Pin Length: 1'', 1.5'',2'',2.5'',4'' Etc Usage: Duct Liner Insulation
Samples: Supported Packing: Carton Then Pallet Or Packing As Request
Highlight:

HVAC Duct Insulation Welded Pins

,

Cup Head Insulation Welded Pins

,

30 Mm Round Base Insulation Welded Pins

Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation
Product Specifications
Product Name Cup Head Insulation Welded Pins
Material Galvanized steel
Pin Diameter 2.7mm (12Ga)
Cup Diameter 30 mm (1.18")
Pin Length 1", 1.5", 2", 2.5", 4" etc
Usage Duct liner insulation
Samples Supported
Packing Carton then pallet or packing as request
Product Overview

Cup head insulation weld pins are fasteners designed for fixing insulation material on sheet metal in HVAC systems (air ducts) in a single operation. Our welding process ensures high quality welds on sheet metal up to several centimeters thick.

Key Features
  • Available in multiple names: Cup head insulation pin, cup head pin, weld god seal pins
  • Material: Galvanized steel (standard)
  • Head: 30 mm beveled edge washer
  • Head Base: 0.4-0.5mm thickness
  • Pin Diameter: 12Ga (2.7mm)
  • Pin Length: Customizable from 3/8" to 12"
  • Head Type Options: Without insulation, with insulated paper, or with insulated film

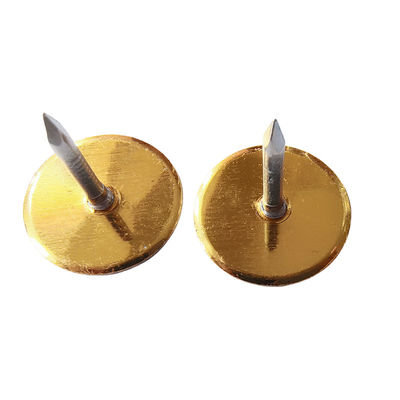

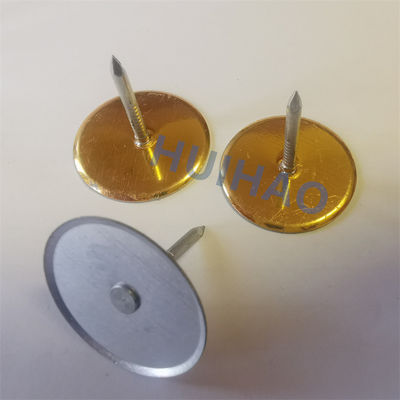

Head Type Variations
Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 0 Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 1 Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 2
Standard Specifications
Material Length Pin Diameter Head Diameter
Galvanized Steel 3/8" 12Ga (2.7mm) 1.18"
Galvanized Steel 1/2" 12Ga (2.7mm) 1.18"
Galvanized Steel 3/4" 12Ga (2.7mm) 1.18"
Galvanized Steel 7/8" 12Ga (2.7mm) 1.18"
Galvanized Steel 1" 12Ga (2.7mm) 1.18"
Note: All specifications can be customized for large orders
Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 3 Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 4
Applications
Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 5

These pins are used for fastening insulation material on metal surfaces in HVAC systems. The installation process involves:

  1. Hanging the insulation material
  2. Directly welding the pins through the insulation materials
Recommended Pin Lengths
Insulation Type Recommended Pin Length
1/2" insulation (all densities) 12.67mm
1" insulation (1-1/2"ib density) 17.63mm
1" foam 25.55mm
1" insulation (3ib densities) 23.72mm
1-1/2" insulation (all densities) 28.42mm
Packaging Options

Available in quantities of 1000, 1500, 2000, 3000, or 5000 pieces per package. Custom packaging options available upon request.

Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 6 Cup Head Insulation Welded Pins With 30 Mm Round Base For HVAC Duct Insulation 7
Quality Assurance

Manufacturer Advantages:

  • Competitive pricing as direct manufacturer
  • On-time delivery guaranteed with automated production
  • Products meet international quality standards
  • Comprehensive after-sales service

Quality Control Process:

  1. Detailed confirmation before quoting
  2. Pre-production specification verification
  3. IATF 16949 Quality Management System compliance
  4. Production progress updates with photos/videos
For pricing inquiries or samples, please contact: david@huihaomesh.com
