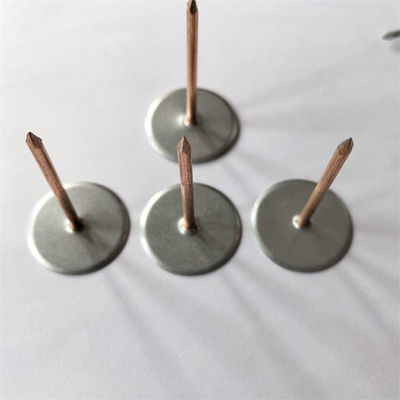

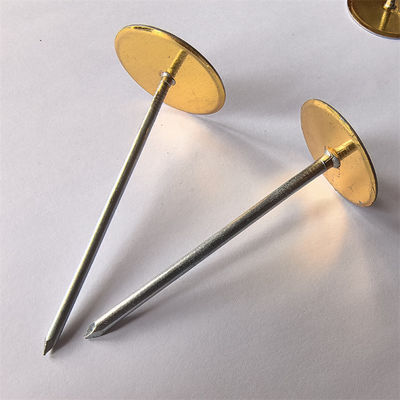

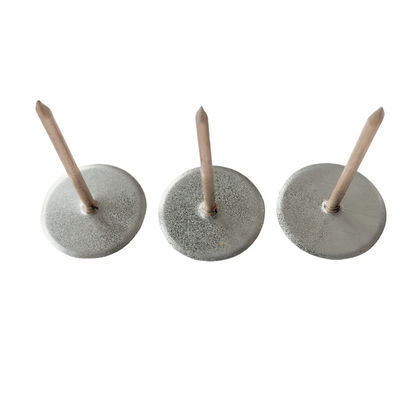

12Ga X 70 Mm Galvanized Steel Cup Head Welded Pins For HVAC Duct Insulation

Large Image : 12Ga X 70 Mm Galvanized Steel Cup Head Welded Pins For HVAC Duct Insulation

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO
Model Number:	Cup Head Weld Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD0.03-0.10/PC
Packaging Details:	2000 pcs / 3000 pcs/ 5000 pcs per carton or according to requirement.
Delivery Time:	8-15 work days
Payment Terms:	L/C, T/T,
Supply Ability:	5,000,000pcs per 30 days

Contact Now

12Ga X 70 Mm Galvanized Steel Cup Head Welded Pins For HVAC Duct Insulation

Description

Product Name:	Cup Head Welded Pins	Material:	Mild Steel
Pin Diameter:	2.7mm, 3.0mm, 3.4mm	Pin Length:	25mm, 38mm, 50mm, 75mm, 100mm Etc.
Cup Diameter:	30 In Common	Usage:	Duct Liner Insulation
Samples:	Supported	Packing:	Carton Then Pallet Or Packing As Request
Highlight:	HVAC Duct Insulation Welded Pins , 12Ga cup head pins for insulation , Welded cup head pins for insulation

12Ga X 70 Mm Galvanized Steel Cup Head Welded Pins For HVAC Duct Insulation

Introduction Of Cup Head Weld Pins:

Cupped head weld Pin is a kind of insulation fasteners, it simplify the permanent installation of "duct Liner" or other insulation material to duct work or to other heating, ventilating or air conditioning sheet metal and housings. They are also effective when used to attached insulation material to architectural panels for an array of commercial and industrial uses, including curtain wall and sound control applications.

Item: Cup Head Welded Pins Designed To Weld Through And Secure Wraps Insulation To HVAC Ducts

Name:Cup head weld pins ,Self sealing pins , etc
Material: Mild steel
Head : 30 mm Beveled edge washer
Head Base: 0.4-0.5mm
Pin Diameter: 14Ga,12Ga,11Ga,10Ga, etc
Pin Length: 19mm,25mm, 38mm, 50mm, 63mm, 75mm, 80mm,100mm, 120mm etc.
Head type:without insulated ,with insulated paper, with insulated film

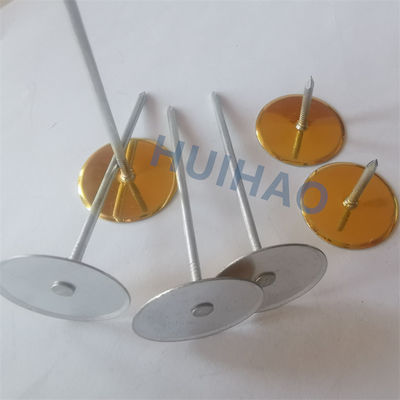

Cup Head Type
Without insulated	With insulated paper	With insulated film

The Advantages Of Cup Head Weld Pins

1. Excellent insulation fastening solution
2. Suitable for wide range of insulation products
3. Made of mild steel
4. Applied with welding equipment
5. Once the pin is welded in place, insulation is impaled over the pin and held in place with an insulation washer.

Application of the Cup Head Weld Pins

Item: Cup Head Weld Pins

Application: used for fastening insulation material on metal surface

Step:

1. Hanging the insulation
2. Directly weld the weld pins through the insulation materials

Recommended for			Pin length before welding
1/2" insulation(all densities)			12.67mm
1" insulation(1-1/2"ib density)			17.63mm
1" foam			25.55mm
1" insulation(3ib densities)			23.72mm
1-1/2" insulation(all densities)			28.42mm
2" insulation(1-1/2"-2" ib density)			37.95mm
2" insulation(3ib densities)			48.77mm
3" insulation(all densities)			69.85mm
4" insulation(all densities)			95.00mm

Package Of The HUIHAO CUSTOM Cup Head Weld Pins:

1000 pcs / 1500 pcs / 2000 pcs / 3000 pcs/ 5000 pcs per package, or packing quantity as request .

It could be carton or plastic bucket, then put on the pallets

Packing method of the Cup Head Weld Pins
Packing the cup head weld pins by Caron	Packing the cup head weld pin by Bucket

Certificate Of Hardware Mesh Product Limited:

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material and the size all could be customized.

3. Can i get samples?
Yes, we have free samples for you to check the quality.

4. How do you control and ensure product quality?

1) Confirm with you every details before quoting.

2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.

4) We will send you videos and pictures during the production and shipment process.

5. What's your advantages?

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.
