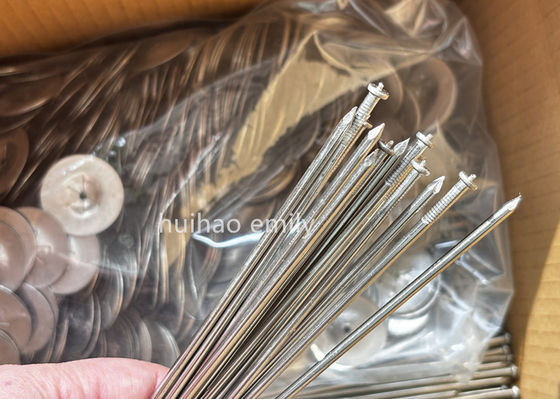

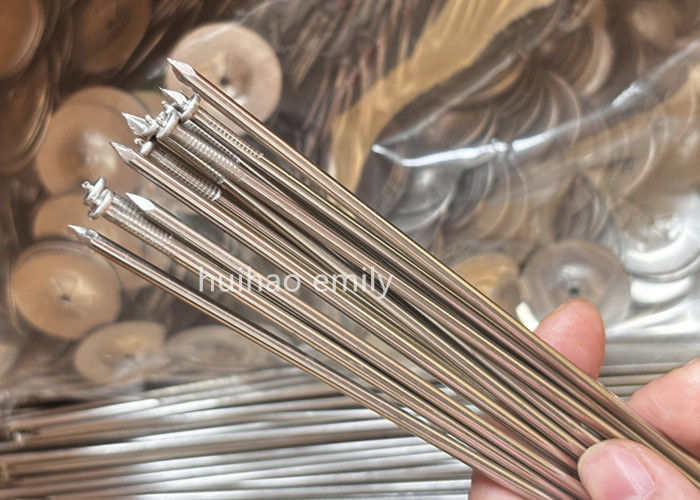

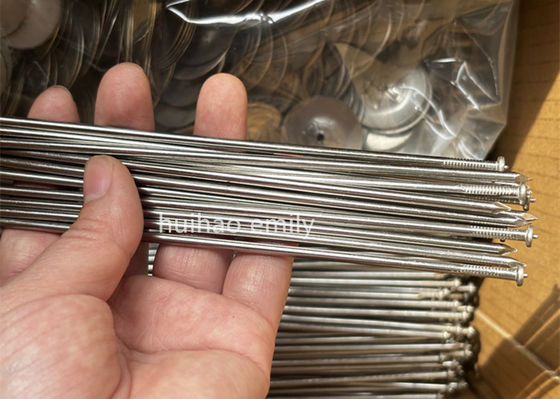

11Ga stainless steel 316L insulation CD weld stud pins with self locking washer
Details of Stainless Steel 316L insulation CD weld stud pins :
Product name:stainless steel capacitor discharge(CD)weld pins ,insulation CD weld pins
Material:stainless steel 316L ,galvanized steel ,copper coated ,aluminum alloy
Pin diameter:2.7mm,3.0mm in common ,other to be request
Pin length:10mm-450mm
Accessories: round self locking washers,square self locking washers ,dome cap washer
Application: On marine/boat for fixing board material , fixing rock woool in power plant, etc
- Features: easy welding
- easy bending
- easy installing
- and much more competitive than bimetallic pins
Specification of Stainless Steel 316L insulation CD weld stud pins :
10 Ga. (0.135") insulation CD weld stud pins
| Material |
Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter |
10 Ga. (0.135") |
| Length |
1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") insulation CD weld stud pins
| Material |
Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter |
12 Ga. (0.105") |
| Length |
3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") insulation CD weld stud pins
| Material |
Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter |
14 Ga, |
| Length |
3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm insulation CD weld stud pins
| Material |
Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter |
3mm |
| Length |
25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
Type of insulation CD weld stud pins :
Choose a washer to lock insulation CD weld stud pins :
|
|
|
Self locking washer
type :round or square
material :galvanized steel ,stainless steel
Size:20mm,25mm,30mm,32mm,38mm,40mm,
50mm
Center hole :for fxing 2.0mm,2.7mm 3.0mm pins
|
Speed clips
material :galvanized steel ,stainless steel
Size:38mm
Center hole :for fxing 2.7mm,3.0mm 3.4mm pins,4mm,5mm
|
|
|
|
metal dome cap washer
material :galvanized steel ,stainless steel,aluminum+stainless steel
Size:22mm,27mm,32mm,40mm,42mm,52mm
Center hole :for fxing 2.0mm,2.7mm 3.0mm pins
|
Pe dome cap washer
material :galvanized steel clip+PE cap ,stainless steel clip+PE cap
Size:42mm
Center hole :Center hole :for fxing 2.7mm,3.0mm 3.4mm pins,4mm,5mm
|
Package Of insulation CD weld stud pins ::
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
HUIHAO company FAQ :
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
