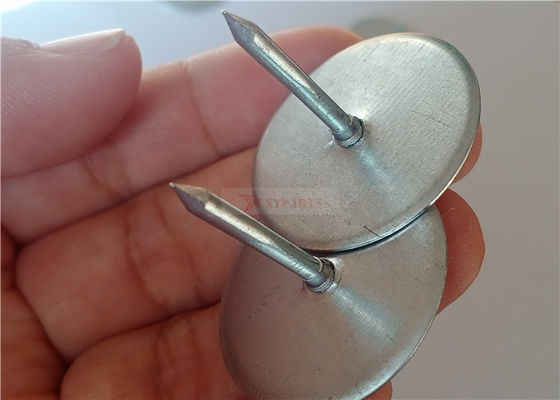

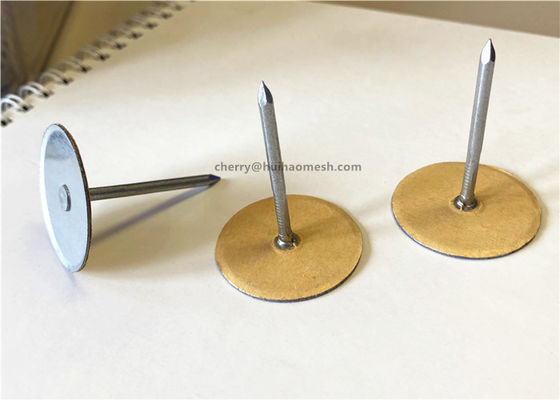

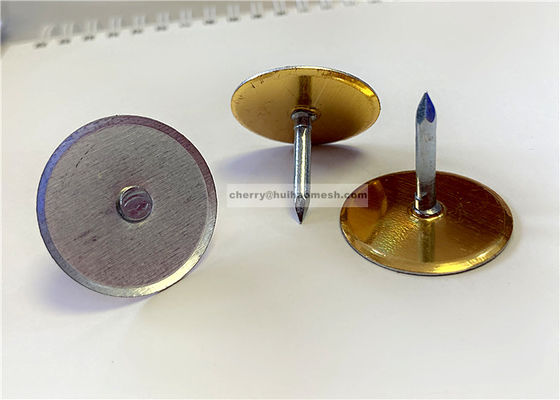

2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation

2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation

Large Image :  2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation

Product Details:
Place of Origin: China
Brand Name: HUIHAO CUSTOM
Certification: ISO
Model Number: Capacitor Discharge Cup Head Weld Pin
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: 1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 1,000,000pcs per 30 days
Contact Now

2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation

Description
Product Name: Capacitor Discharge Cup Head Weld Pin Material: Galvanized Steel
Brand: HUIHAO CUSTOM Head Dia: 30mm
Usage: Weld Through And Secure Wraps Insulation To HVAC Ducts Pin Diameter: 2.7mm, 3.0mm, 3.4mm
Samples: Supported Pin Length: 25mm, 38mm, 50mm, 75mm, 100mm Etc.
Highlight:

Thermal And Acoustical Insulation Weld Pin

,

Insulated Paper Washer Weld Pin

2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation
Product Specifications
Attribute Value
Product name Capacitor Discharge Cup Head Weld Pin
Material Galvanized Steel
Brand HUIHAO CUSTOM
Head Dia 30mm
Usage Weld Through And Secure Wraps Insulation To HVAC Ducts
Pin Diameter 2.7mm, 3.0mm, 3.4mm
Samples supported
Pin Length 25mm, 38mm, 50mm, 75mm, 100mm etc.
Product Description

Capacitor Discharge Cup Head Weld Pin is produced out of a mild steel weld nail with a galvanized-coated mild steel retaining washer.

Capacitor Discharge Cup Head Weld Pin will be applied with a capacitor discharge stud welder.

Capacitor Discharge Cup Head Weld Pins are widely accepted as labor-saving fasteners in the thermal and acoustic insulation markets for use in industrial and commercial applications.

If you are in need of cup head weld pins for duct insulation work, please feel free to ask me a price or sample, our cup head weld pins are with good quality, any my email address is cherry@huihaomesh.com
  • Item: Capacitor Discharge Cup Head Weld Pin For Thermal And Acoustical Insulation
  • Head Material: Galvanized steel
  • Head Edge: Beveled edge washer to prevent cutting of insulation material.
  • Head Diameter: 30mm
  • Head Thickness: 0.5mm
  • Head Type: With or without insulated paper or insulated film
  • Nail Material: Galvanized steel or copper plated steel
  • Nail Diameter: 2.7mm, 3.0mm, 3.4mm etc.
  • Nail Length: 25mm, 38mm, 50mm, 63mm, 75mm, 100mm, 120mm etc.
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 0
Product Advantages
  • Beveled Edge Cap: Prevents tearing of duct liner
  • Faster Welds: Forged diamond point design creates more electrical resistance for faster welds.
  • Better Plating: Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
  • Reduced Down Time: Consistent point quality reduces frequency of machine adjustments.
  • Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
  • Applied with Standard Equipment: Easily applied with Gripnail's Automatic Pin Welder or most standard hand held or hopper fed resistance welders.
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 1
Product Application
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 2

Item: Capacitor Discharge Cup Head Weld Pin For Thermal And Acoustical Insulation

Application: used for fastening insulation material on metal surface

Step:

  1. Hanging the insulation
  2. Directly weld the weld pins through the insulation materials
Packaging Information
  • 1000 pcs / 2000 pcs / 3000 pcs per carton
  • 48 cartons per pallet
  • or according to your requirement.
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 3 2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 4
Company Information
2" Capacitor Discharge Cup Head Weld Pin With Insulated Paper Washer For Thermal And Acoustical Insulation 5

1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material and the size all could be customized.

3. Can i get samples?
Yes, we have free samples for you to check the quality.

4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.

5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
