Product Details:
|
| Product Name: | Bi-metallic Pins/ Blunt Headed Pins | Material Of The Shaft: | Carbon Steel Or Stainless Steel |
|---|---|---|---|
| Pin Diameter: | 3mm In Common | Base Material: | Aluminum Base |
| Base Size: | 6 X 15 Mm | Total Length: | 75 Mm , Or Customized Length |
| Surface Treatment: | Copper Coated Or Polished | Application: | Ship Building Industry |
| Highlight: | 3 X 75mm cd weld pins,cd weld pins with aluminum base,Blunt Headed cd weld pins |
||
Bi-metallic Pins , The studs and raw material specifications mentioned conform with EN ISO 13918 and EN ISO 14555.
The Bi-metallic wedl pins is widely used for ship building industry .ti could connect the different metal material together .
Specificatons of the Bi-metallic blunt headed pins
Material | Pin Diameter | Insulated Head Size | Common length |
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 3 mm in common | 6mm*15mm | 50 mm |
| Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 3.0 mm in common | 6mm*15mm | 60 mm |
| Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 3.0 mm in common | 6mm*15mm | 65 mm |
| Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 3.0 mm in common | 6mm*15mm | 75 mm |
| Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 3.0 mm in common | 6mm*15mm | 90 mm |
| Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 3.0 mm in common | 6mm*15mm | 120 ,mm |
| Note | Both the pin diameter and legnth could be customized | ||

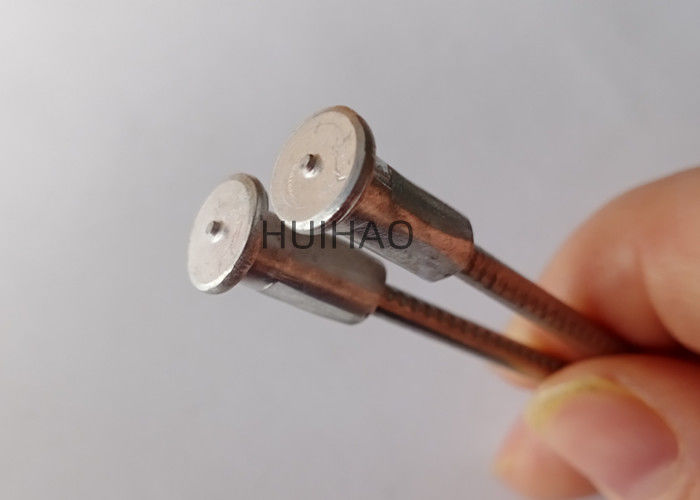

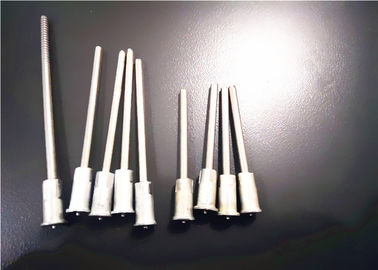

Detail images of the Bi-metallic blunt headed pins
Washers of the Bi-metallic blunt headed pins
Round self locking washers is also named self clips. it is used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place.
the round washer is with three petals in center by stamped technical. common material is stainless steel 304/316. special material is for coustomzed orders.
Material | Type | Diameter | Pin Diameter | Thickness | Package |
SS304/316,Galvanized Steel | Round | 38mm | 10Ga, 12Ga, 14Ga,3mm | 0.4mm | 2000pcs/carton |
| SS304/316,Galvanized Steel | Square | 32mm 50mm | 10Ga, 12Ga, 14Ga,3mm | 0.4mm | 2000pcs/carton |
| SS304/316,Galvanized Steel | Dome cap | 28mm,32mm | 10Ga, 12Ga, 14Ga,3mm | 0.4mm | 2500pcs /carton |
Other size also could be customed. | |||||
There is also another more safety type washer for the bi-metallic pins: SS clips +plastic cap
Packing and delivery methods of Bi-metallic blunt headed pins
Packing:500 or 1000 units per plastic bag and then put the bags into carton , also could be packed as request .
Delivery methods:
Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
