Product Details:
|
| Product Name: | 1-1/2" Copper Coated Steel CD Stud Welder Insulation Pins | Brand: | HUIHAO CUSTOM |
|---|---|---|---|
| Base Material: | Galvanized Steel | Head Dia: | 30mm |
| Pin Material: | Copper Coated Steel | Pin Diameter: | 2.7mm |

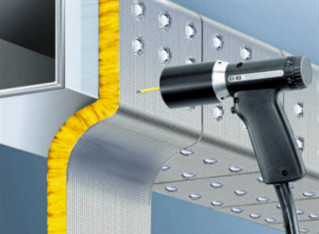

| Usage: | Fasten Foil Faced Insulation Materials | Pin Length: | 1-1/2" Etc. |
| Samples: | Supported | Customization: | Supported |
| High Light: | 1-1/2" cd weld pins,duct lining work cd weld pins,1-1/2" capacitor discharge weld pins |
||

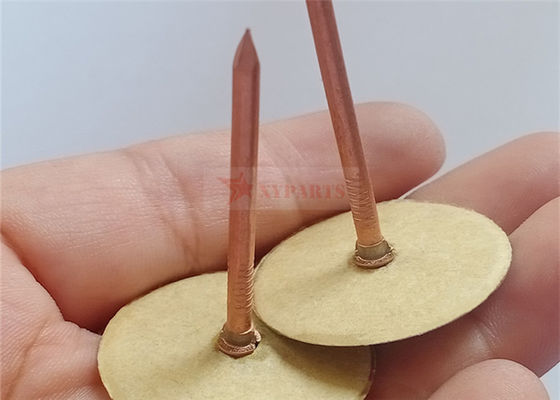

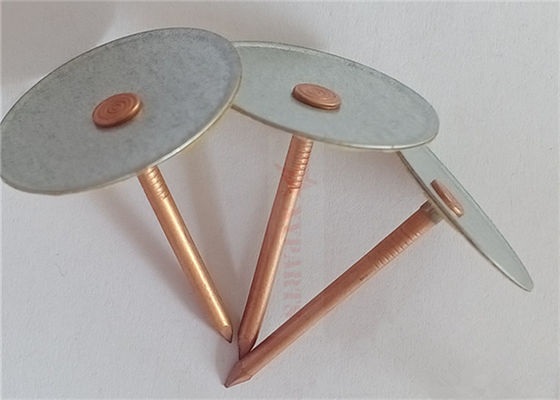

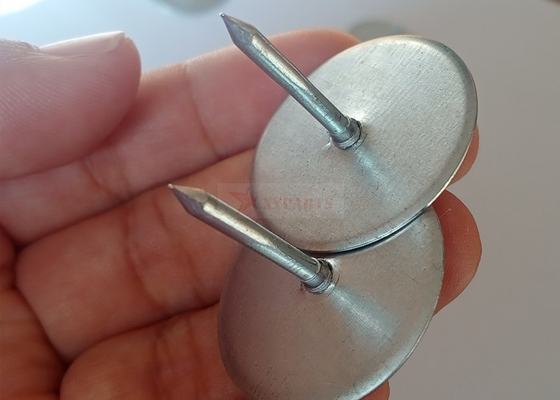

1. This CD stud welder insulation pins are made of low carbon steel with galvanized or
copper coated for standard, stainless steel is available for special order.

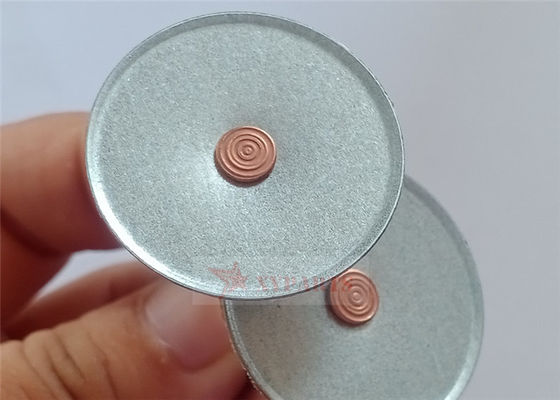

2. This CD stud welder insulation pins are assembled with a pin and a washer.
3. For US, Canada, the standard washer diameter is 1.187"(30mm), the pin diameter is

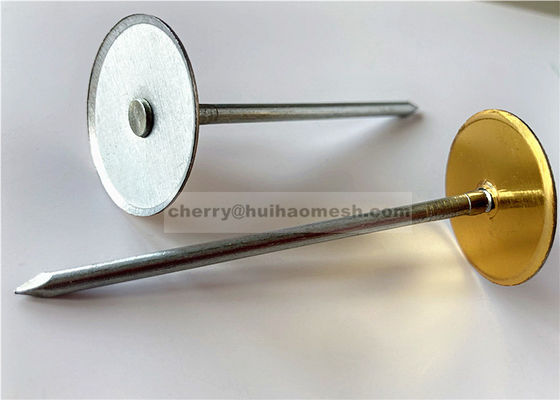

12GA(2.7mm), the washer can with or without paper. the length from 3/8" to 4-7/8" .
4. For EU countries, the washer diameter is 30mm, 38mm, The pin diameter is
12GA(2.7mm) and 14GA(2.0mm), the washer can be with or without paper, the length
from 9.5mm to 140mm.
5. We also accept the special order for other lengths.
|
Item: Copper Coated Steel CD Stud Welder Insulation Pins Type: With or without paper washer Base Material: Galvanized Steel Base Size: 30mm as standard Pin Diameter: Copper Coated Steel (Galvanized steel also could be made.) Pin Diameter: 2.7mm as standard Pin Length: as your requirement |
 |
| Material | Length | Pin Diameter | Head Diameter |
| Galvanized Steel | 3/8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 3/4" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 7/8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1-1/8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1-1/4" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1-5/8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 1-7/8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 2-1/8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 2-1/4" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 2-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 3" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 3-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 4" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 4-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 5" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 5-1/2" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 6" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Galvanized Steel | 8" | 12Ga (2.7mm) | 1-3/16" (30mm) |
| Recommended for | Pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
|
|
|
1. 1500pcs / 2000pcs / 2500pcs per carton 2. then in one pallet 3. the package can be can according to your request |
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
