Product Details:
|
| Product Name: | 2" Cup Head Pins With Paper Washer | Material: | Galvanized Steel |
|---|---|---|---|
| Brand: | HUIHAO CUSTOM | Head Dia: | 30mm |
| Usage: | Fasten Foil Faced Insulation Materials | Pin Diameter: | 2.7mm |
| Samples: | Supported | Pin Length: | 2" / 50mm |
| High Light: | 2" cup head weld pins,securing insulation cup head weld pins |
||

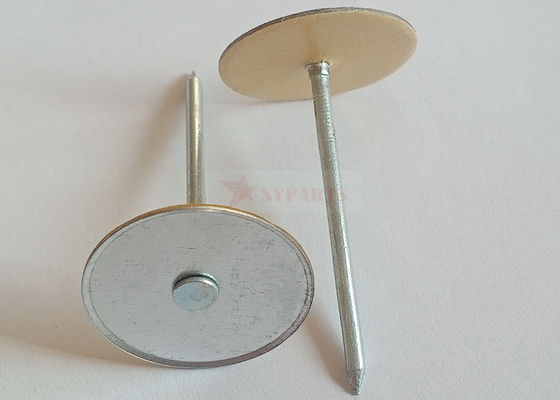

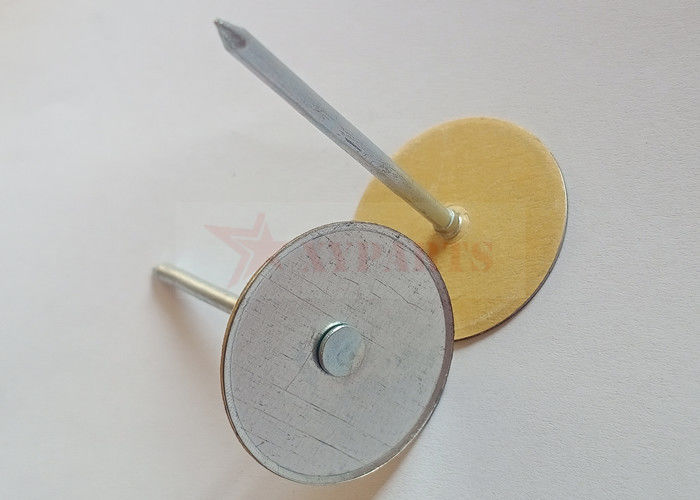

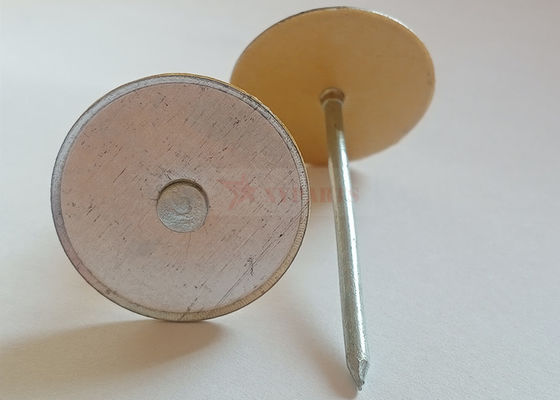

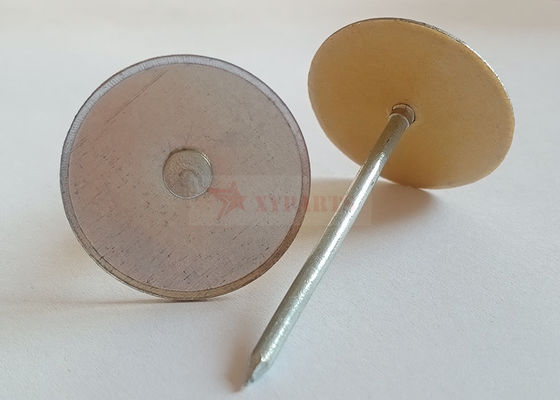

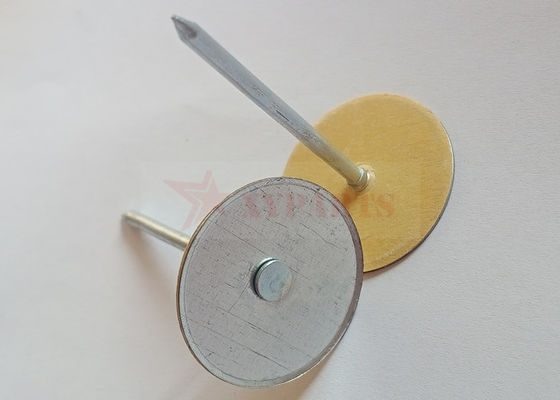

Cup Head Pins With Paper Washer installed is a fabricated part made up of a weld pin and
a staked on retaining washer. Cup Head Pins with Paper Washer installed are usually applied
with a capacitor discharge stud welder. They are commonly used for securing insulation and as
a hook-less lacing anchor to secure insulation inside fabricated blankets.
Cup Heads are widely accepted as labor-saving fasteners in the thermal and acoustic insulation
markets for use in industrial and commercial applications.
The most popular style of Cup Head Weld Pins is produced out of a mild steel weld nail with a
galvanized-coated mild steel retaining washer.
|
Item: 2" Cup Head Pins With Paper Washer Head Material: Galvanized steel with paper washer |
|
 |
| Photo | Cup head pins consist of a round washer and a nail. | |||||
|
Material | Plating | Washer size | Nail dia | Pin length | |
| Mild steel | Galvanized or copper plated | 30mm,38mm or customized |
2mm, 2.7mm, 3.0mm,3.4mm |
19mm, 25mm, 38mm, 50mm, 63mm, 76mm, 90mm, 100mm, 114mm, |
||
| Note | The washer and nail size could be customized . | |||||
| Beveled edge cap | Prevents tearing of duct liner | |||||
| Faster welds | Forged diamond point design creates more electrical resistance for faster welds. | |||||
| Better plating | Zinc and copper plating exceeds SMACNA standards and gives a more professional appearance. | |||||
| Reduced down time | Consistent point quality reduces frequency of machine adjustments. | |||||
| Stronger welds | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. | |||||
| Applied with standard equipment | Easily applied with automatic pin welder or most standard hand held or hopper fed resistance welders. | |||||
|
||||||
|
Name: Cup Head Pins With Paper Washer Application: used for aluminum foil faced insulation materials Step: 1. Hanging the insulation |
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet
3. or according to your requirement.
|
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
