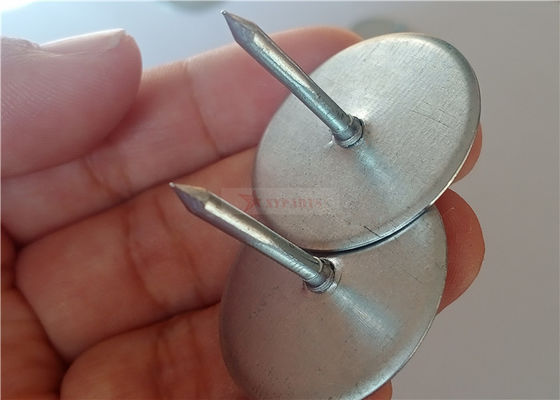

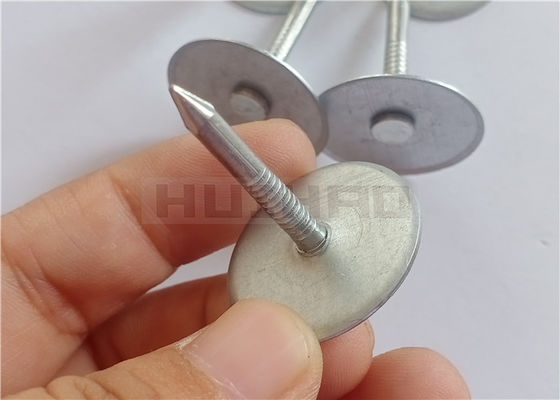

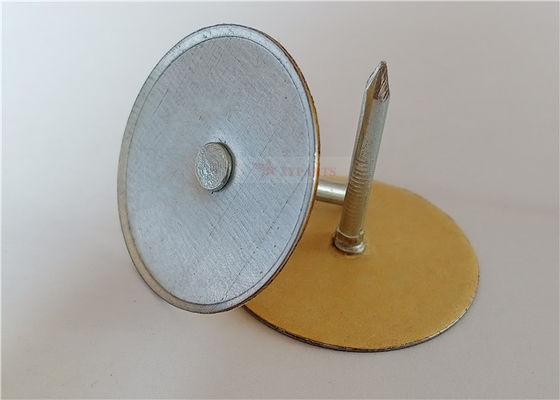

3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation

3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation
3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation
3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation

Large Image :  3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Capacitor Discharge Insulation Welding Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 36 cartons per pallet 3. or according to your requirement.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 5000000pcs per 30 days
Contact Now

3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation

Description
Product Name: Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation Brand: Huihao Custom
Material: Low Carbon Steel Or Stainless Steel Pin Dia: 0.135" / 3.4mm
Surface Treatment: Copper Plated, Galvanized Base Dia: 1" / 25mm Or 1-3/16"/30mm
Samples: Free Length: As Your Request
Highlight:

3.4mm welding insulation pins

,

exhaust air duct welding insulation pins

,

3.4mm capacitor discharge weld pins

3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation
Product name Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation
Brand Huihao Custom
Material Low carbon steel or stainless steel
Pin diameter 0.135" / 3.4mm
Surface treatment Copper plated, galvanized
Base diameter 1" / 25mm or 1-3/16"/30mm
Samples Free
Length As your request
Product Description

Cupped Head Capacitor Discharge Weld Pins are widely used for metal air duct insulation work. The pins simplify the installation of "Duct Liner" or other insulation materials to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.

Cupped Head Capacitor Discharge Weld Pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

If you are in need of Cupped Head Capacitor Discharge Weld Pins for duct insulation work, please feel free to ask me a price or sample, our cup head weld pins are with good quality. Contact us at cherry@huihaomesh.com

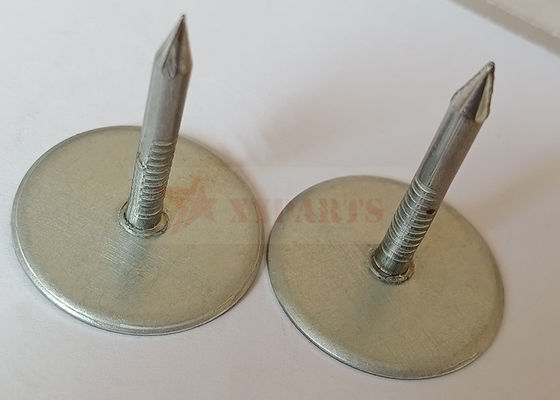

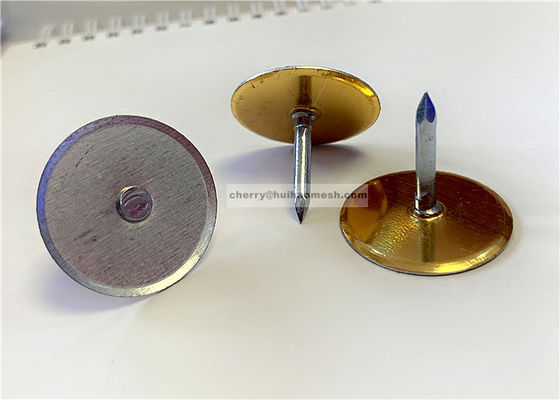

3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 0 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 1 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 2 3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 3

Head Material: Low carbon steel or stainless steel

Head Surface Finish: Galvanized is standard

Head Edge: Beveled edge washer to prevent cutting of insulation material. Flat edge washer style also standard.

Head Diameter (WD): 1" (25mm), 1-3/16" (30mm)

Pin Material: Low carbon steel or stainless steel

Pin Surface Finish: Galvanized is standard, copper plating is available upon special request.

Pin Diameter (D): 12Gauge (2.7mm), 11Gauge (3.0mm), 10Gauge (3.4mm)

Pin Length (L): As your request

Packaging Information
Item Cupped Head Capacitor Discharge Weld Pins
Brand HUIHAO Custom
Size 25mm, 38mm, 50mm, 75mm, 100mm, 130mm, etc.
Package

1. 1000 pcs / 2000 pcs/ 3000 pcs per carton

2. 36 cartons per pallet

3. Or according to your requirement.
3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 4
Installation Guide
3.4mm Cupped Head Capacitor Discharge Weld Pins For Metal Air Duct Insulation 5
Recommended for Pin length before welding
1/2" insulation (all densities) 12.67mm
1" insulation (1-1/2"ib density) 17.63mm
1" foam 25.55mm
1" insulation (3ib densities) 23.72mm
1-1/2" insulation (all densities) 28.42mm
2" insulation (1-1/2"-2" ib density) 37.95mm
2" insulation (3ib densities) 48.77mm
3" insulation (all densities) 69.85mm
4" insulation (all densities) 95.00mm
Frequently Asked Questions
1. Are you manufacturer or trader?

We are the manufacturer and we sell what we make.

2. Do you support product customization?

Yes, the material, the size, the length all could be customized according to your request.

3. Can you accept small orders?

Yes, for common size, we could accept small orders.

4. Can I get samples?

Yes, we can send you samples.

5. What is your advantages for the cup head weld pins?
  • Competitive price: We sale what we manufacture.
  • Excellent quality: We have rich experience, our products are in line with international standard.
  • Good after-sale service: We offer good after-sale service for each order.
  • Our cup head weld pins are consistent in price, quality and delivery service.
