Product Details:
|
| Product Name: | Cup Head Weld Pins | Material: | Carbon Steel ,stainless Steel ,copper |
|---|---|---|---|
| Head Diameter: | 30mm ,35mm | Pin Diameter: | 1.8mm,2.0mm,2.7mm,3.0mm,3.4mm |
| Surface Treatment: | Copper Plated Or Galvanized | Package: | Carton Or Pail |
| Factory: | Yes | ||
| High Light: | 12 gauge cuphead weld pins,duct liner cuphead weld pins,7/8" capacitor discharge weld pins |
||
The cup head weld pins is a insulation fastener used to fasten the insulation to the sheet metal of insulation
construction. through a welding process and is widely accepted as a labor-saving method during the
fabrication of removable, reusable insulation blankets.
Specifications
Standard material: Low Carbon steel, Stainless steel
Plating
Pin-Galvanized plating or cooper plating
Washer- Galvanized plating.
 |
Product name :Cup head weld pins Annealing: all steel pins are fully annealed unless otherwise specified. Washer: Low carbon steel & zinc plating. |
| base size | base material | pin diameter | pin length | pin material | finished |
| 20MM | mild steel, stainless steel, copper | 2.7MM,3MM, 3.4MM | 10MM, 25MM, 38MM | mild steel, stainless steel, copper | zinc/ copper plating |
| 25mm | mild steel, stainless steel, copper | 3mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| 30mm | mild steel, stainless steel, copper | 3.4mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| custom | custom | support custom | support custom |

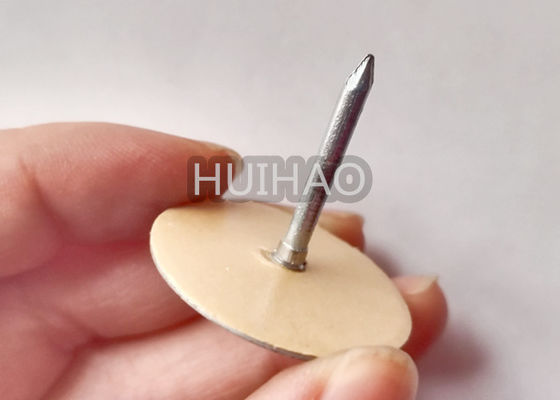

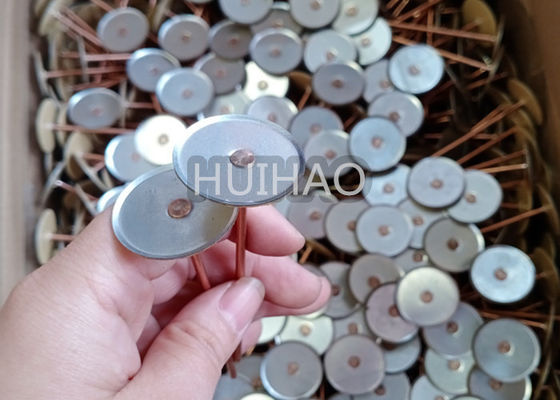

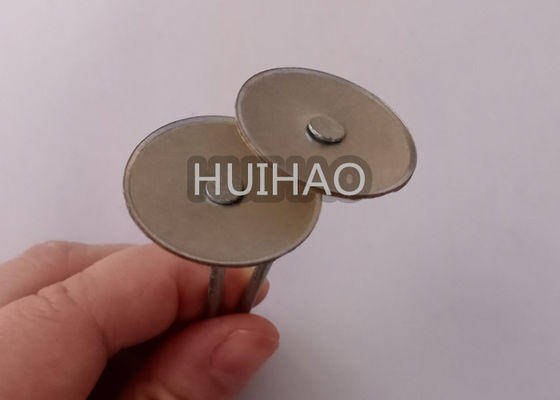

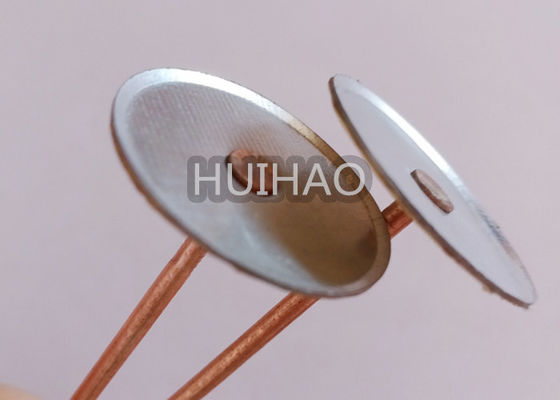

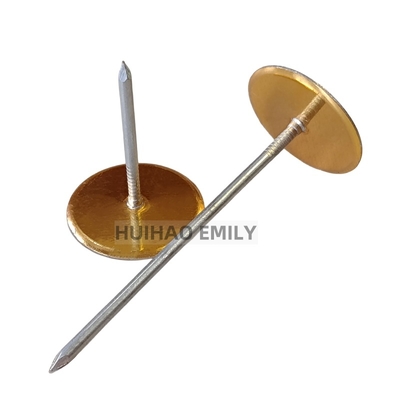

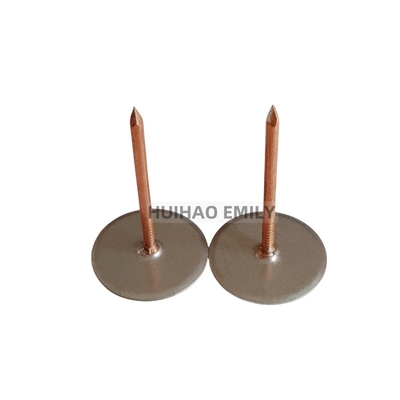

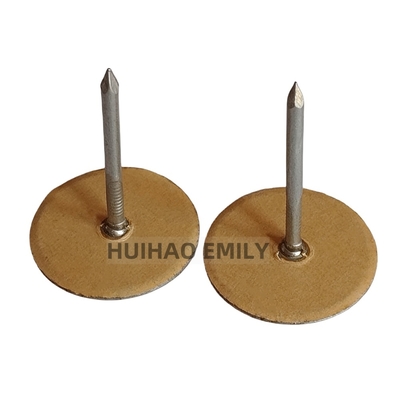

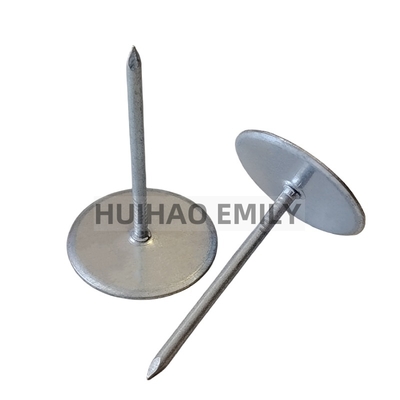

Pic of Capacitor Discharge(CD) Mini Cup Head Weld Pins
|
|
|
Head diameter:30mm |
Head diameter:30mm |
| features of Capacitor Discharge(CD) Mini Cup Head Weld Pins | |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
| Product | Quantity | Box size | Weight |
| 12Gauge 3/8” cup head weld pins | 1000Pcs | 26×26×8CM | 2.85KG |
| 12Gauge 7/8” cup head weld pins | 1000Pcs | 26×26×11CM | 3.5KG |
| 12Gauge 1” cup head weld pins | 1000Pcs | 26×26×11CM | 3.7KG |
| 12Gauge 1-1/8” cup head weld pins | 1000Pcs | 26×26×13CM | 4.2KG |
| 12Gauge 1-7/8” cup head weld pins | 1000Pcs | 26×26×18CM | 4.85KG |
| 12Gauge 2” cup head weld pins | 1000Pcs | 26×26×18CM | 4.95KG |
| 12Gauge 3” cup head weld pins | 1000Pcs | 26×26×18CM | 7.05KG |
| 12Gauge 4” cup head weld pins | 1000Pcs | 26×26×32CM | 7.6KG |
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
