Product Details:
|
| Product Name: | Capacitor Discharge (CD)weld Pins | Material: | Carbon Steel ,stainless Steel ,copper |
|---|---|---|---|
| Head Size: | 30mm ,35mm | Pin Length: | 25mm-250mm |
| Pin Diameter: | 2.0mm,2.7mm,3.4mm Is In Commom | Surface Tratment: | Copper Plated Or Galvanized |
| Package: | Carton Or Pail | Sample: | Free |
| High Light: | 1" length cuphead weld pins,galvanised cuphead weld pins,galvanised capacitor discharge weld pins |
||
1.Product Name :Cup head capacitor discharge(CD)weld pins
2.Head diameter :30mm,35mm beveled edge cap
3.Pin diameter :3.4mm,3.0mm,2.7mm,2.0mm other size to be request
4.Pin length :1/2" 1" 1 1/8" 1 1/2" 2" 3" 4" 41/2"
Material:
Cup Head Pins with Paper Washer is a fabricated part made up of a weld pin and a staked on retaining
washer. Cup Head Pins with Paper Washer installed are usually applied with a capacitor discharge
stud welder. They are commonly used for securing insulation and as a hook-less lacing anchor to
secure insulation inside fabricated blankets.
| Round base | Pin diameter | Pin length | Base type |
| 30mm | 14ga,12ga | 38-250mm | Base with paper base without paper |
| 35mm | 12ga,10ga | 25mm,38mm | |
| 25mm | 12ga,10ga,3mm | 25mm,38mm | |
| Material | Mild steel | stainless steel | Aluminum alloy |
| Surface treatment | zinc/copper coated | cleaning | No |
 |
|
|

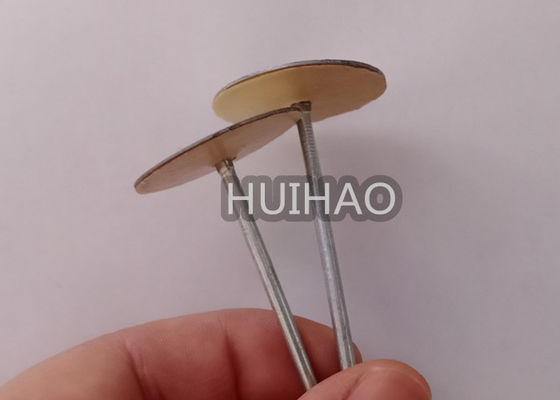

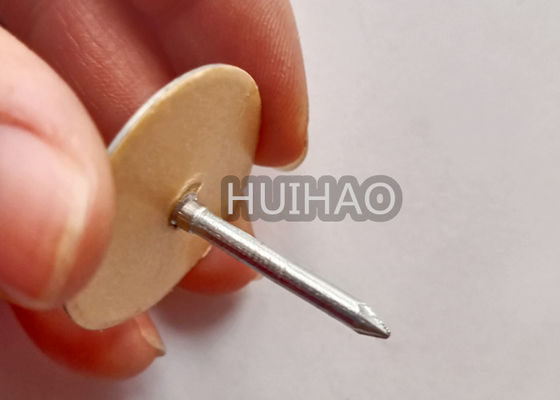

Head diameter:30mm Pin diameter:2.7mm Pin length:1" with paper washer |

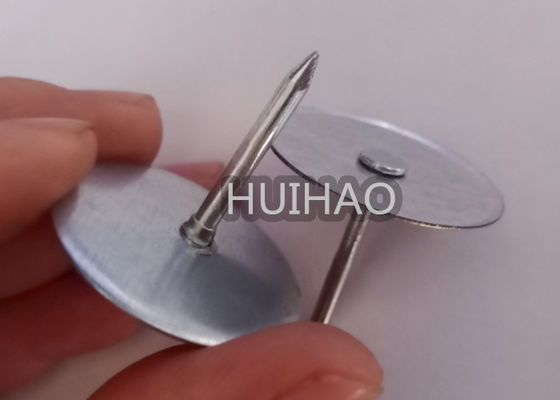

Head diameter:30mm Pin diameter:2.7mm Pin length:1" without paper washer |
| features of Cup Head Capacitor discharge(CD)weld pins | |

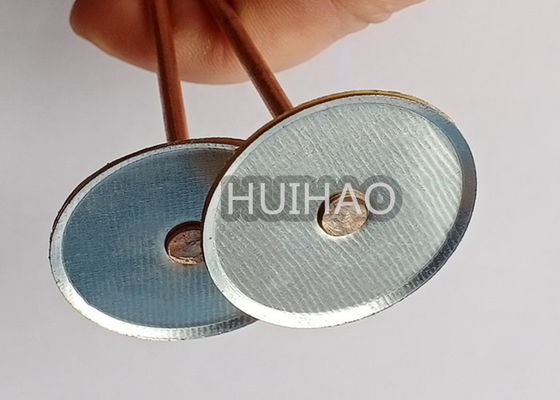

| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
| Product | Quantity | Box size | Weight |
| 12Gauge 3/8” cup head weld pins | 1000Pcs | 26×26×8CM | 2.85KG |
| 12Gauge 7/8” cup head weld pins | 1000Pcs | 26×26×11CM | 3.5KG |
| 12Gauge 1” cup head weld pins | 1000Pcs | 26×26×11CM | 3.7KG |
| 12Gauge 1-1/8” cup head weld pins | 1000Pcs | 26×26×13CM | 4.2KG |
| 12Gauge 1-7/8” cup head weld pins | 1000Pcs | 26×26×18CM | 4.85KG |
| 12Gauge 2” cup head weld pins | 1000Pcs | 26×26×18CM | 4.95KG |
| 12Gauge 3” cup head weld pins | 1000Pcs | 26×26×18CM | 7.05KG |
| 12Gauge 4” cup head weld pins | 1000Pcs | 26×26×32CM | 7.6KG |
