3mm Capacitor Discharge (CD)Weld Studs Bi-metallic Insulation Pins For Ship Repair

Large Image : 3mm Capacitor Discharge (CD)Weld Studs Bi-metallic Insulation Pins For Ship Repair

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAO
Certification:	ISO 9001
Model Number:	BI-Metallic Insulation Pins

Payment & Shipping Terms:

Minimum Order Quantity:	5,000 pcs
Packaging Details:	1.500pcs /1000 pcs in one carton 2.on pallet 3.to be request
Delivery Time:	7-10 days after confirm the order
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	100.000PCS per month

Contact Now

3mm Capacitor Discharge (CD)Weld Studs Bi-metallic Insulation Pins For Ship Repair

Description

Product Name:	BI-Metallic Insulation Pins	Shaft Material:	Stainless Steel ,carbon Steel ,aluminum,brass
Shaft Size:	3x65mm,3x90mm ,3x100mm,3x150mm	Base Material:	Aluminum
Base Size:	6x15mm	Usage:	Shipping Build
OEM/ODM:	Support	Factory:	Yes
Highlight:	3mm cd weld pins , 3mm capacitor discharge weld pins , bi metallic capacitor discharge weld pins

3mm Capacitor Discharge (CD) Weld Studs Bi-metallic Insulation Pins For Ship Repair

Product Attributes

Attribute	Value
Product name	BI-Metallic Insulation Pins
Shaft material	Stainless steel, carbon steel, aluminum, brass
Shaft size	3x65mm, 3x90mm, 3x100mm, 3x150mm
Base material	Aluminum
Base size	6x15mm
Usage	Shipping build
OEM/ODM	Support
Factory	Yes

Product Details

Product name: Bi-metallic insulation pins, CD weld pins, bimetallic pins

Base Material: Aluminum alloy

Pin material: Stainless steel 304/316, copper steel, galvanized steel

Diameter: 3mm is common size, other size to be request

Length: From 30mm to 200mm

Accessories: Self-locking washer, dome cap, 3 slots washer, plastic cap washer

Usage: It is using in shipbuilding or marine, boat accessory

Capacitor Discharge Bimetallic Insulation Pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.

BIMETAL pins have an aluminum weld base designed to be welded to thin gauge aluminum sheet material using the Capacitors Discharge welding process, but may also be welded with the Short Cycle Drawn Arc weld process on thicker aluminum plate.

Self-Locking washers are available in a variety of sizes, shapes and materials.

Specifications

Type	Base material	Base size	Pin material	Pin diameter	Pin length	Drawing
Bi-metallic weld pins	Aluminum alloy 5053	6x15mm	Stainless steel 304/316	12ga 3mm	15-500mm
Aluminum weld pins	Aluminum alloy 5053	5x12mm	Aluminum alloy 5053	12ga 3mm	15-500mm

Product Images

Features

BETTER PLATING - Weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance. Climatech weldpin shanks are copper plated.

REDUCED DOWN TIME - Consistent point quality reduces frequency of machine adjustments.

STRONGER WELDS - Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

CORROSION RESISTANCE - Plating exceeds current SMACNA standards for corrosion resistance.

TEMPERATURE RANGE - CD Weld pins function properly over normally accepted operating range of temperatures of 0°C to 121°C and are not adversely affected at temperatures of 0°C to 287°C.

VIBRATIONS - CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

Packaging Information

Material of the shaft	Material of the head	Length of the head	Total length	Packing of the Bi-metallic pins
Stainless steel	Aluminum	15mm in common	35mm	400pcs/bag, 10bags/carton
Stainless steel	Aluminum	15mm in common	45mm	350pcs/bag, 10bags/carton
Stainless steel	Aluminum	15mm in common	55mm	300pcs/bag, 10bags/carton
Stainless steel	Aluminum	15mm in common	65mm	250pcs/bag, 10bags/carton
Stainless steel	Aluminum	15mm in common	80mm	200pcs/bag, 10bags/carton
Stainless steel	Aluminum	15mm in common	95mm	150pcs/bag, 10bags/carton

Company Introduction

HUIHAO company is a insulation fasteners/insulation anchors manufacturing company, we produce all kinds of insulation pins and washers. We can make mold according to your drawing pic. Our products include:

CD weld pins Lacing Anchors
Bimetallic pin Cup head weld pins
Quilting pins perforated base pins
Self adhesive pins aluminum solar panel mesh clip
All kinds of self locking washers, Dome caps

Tag:

Contact Person: emily

Tel: 86-18032788121

Fax: 86-1336-3891298

Other Products

Different length Soft CD Weld Pin For Marine Insulation

Name: CD insulation weld pin

Material: carbon steel

Pin Dia: 2.7mm, 3mm, 3.4mm

Pin length: 15mm - 350mm

Galvanized Steel Cup Head Welded Pins Designed To Weld Through And Secure Wraps Insulation To HVAC Ducts

Product name: Galvanized Steel Cup Head Welded Pins

Material: Galvanized Steel

Brand: HUIHAO CUSTOM

Head Dia: 30mm

Ship Building M3x90mm Bimetallic Cd Pins With Aluminum Base Copper Coat Steel Nail

Name: Bimetallic CD Pins

application: used for marine industry

base material: aluminum alloy

base size: 6x15mm

3x100mm Aluminum Insulation Cd Weld Pin For Marine Building Repair

Product name: aluminum cd weld pin

Material: aluminum ,other to be request

Pin diameter: 2.7mm,3.0mm is common size

Pin length: 25-500mm

12 Ga X 38 Mm Insulation Cupped Head Weld Pins For HVAC Insulation

Product name: Insulation cupped head weld pins

Material: Galvanized steel for the pin and plate

Pin Diameter: 2.0 mm, 2.7 mm,3.0 mm,3.4 mm etc

Head type: With or without insulated paper/film

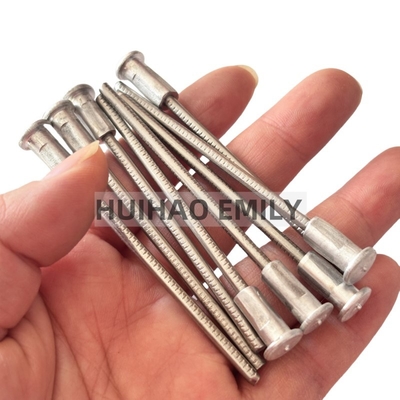

3mm Capacitor Discharge (CD)Weld Studs Bi-metallic Insulation Pins For Ship Repair

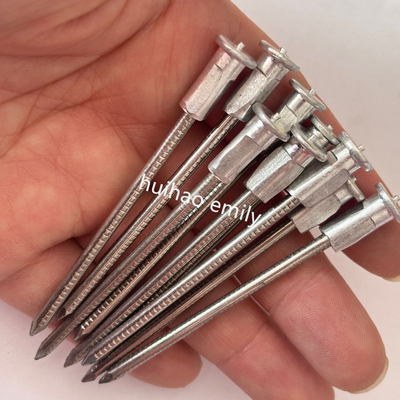

3mm Capacitor Discharge (CD)Weld Studs Bi-metallic Insulation Pins For Ship Repair

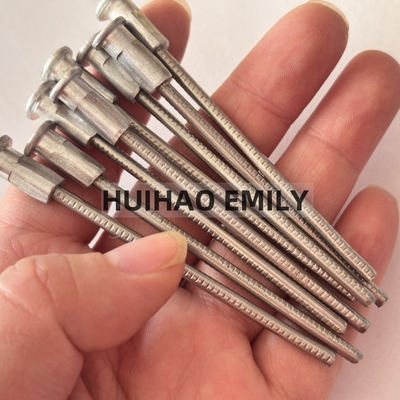

3mm Capacitor Discharge (CD)Weld Studs Bi-metallic Insulation Pins For Ship Repair
