Product Details:
|
| Product Name: | Bimetallic Insulation Pins | Base Size: | 6x15mm In Common |
|---|---|---|---|
| Base Material: | Alloy Aluminum | Pin Diameter: | 2.7mm,3.0mm |
| Pin Material: | Galvanized ,stainless Steel ,aluminum | Pin Length: | 25-250mm |
| OEM/ODM: | Support | Usage: | Marine Build |
| High Light: | 65mm cd weld pins,aluminunm base cd weld pins,65mm capacitor discharge weld pins |
||

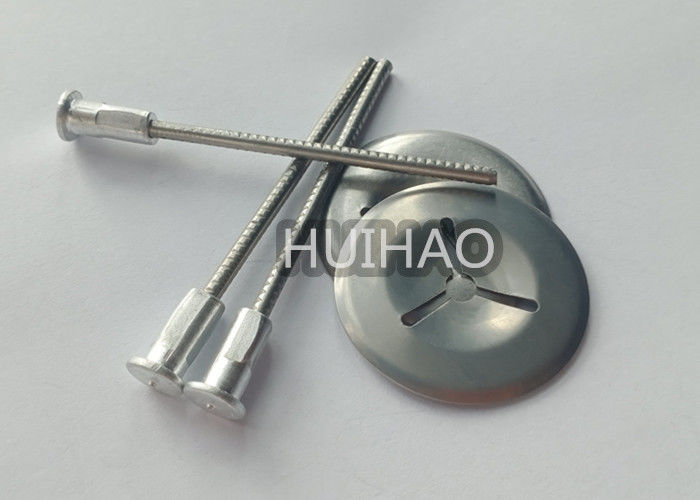

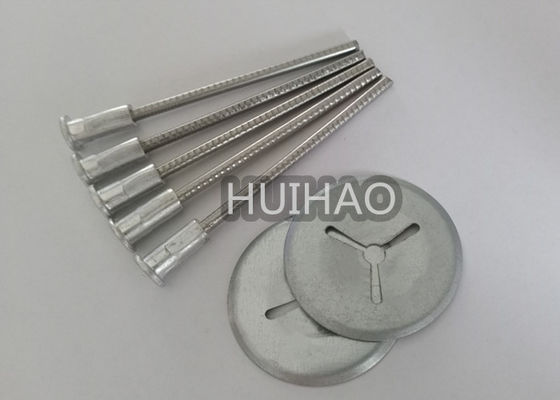

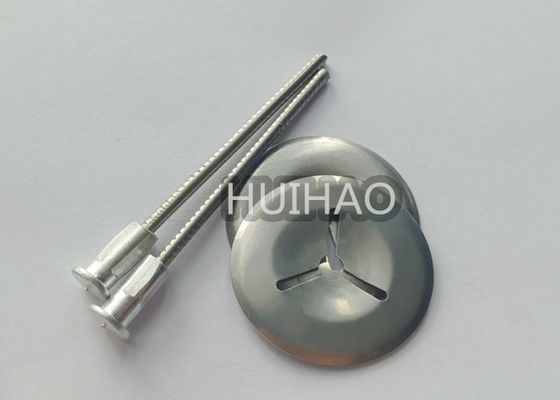

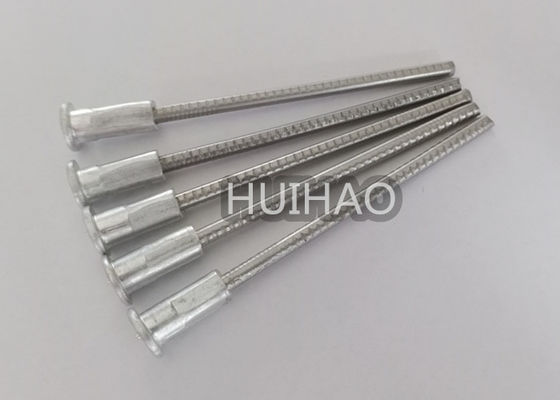

Insulation Bi-metallic Welding pins is also called capacitor diacharge weld pins ,usually used for shipping
build ,the base is aluminum weld base , the pin can be galvanized ,stainless steel,aluminum material ,as
a manufacturer ,we not noly supply standard weld studs ,but also special design studs and pins ,if you can
not the specification you are looking for ,pls contact us ,other material and design on request
Accessories is self-locking washer ,3 slots washer ,dome cap washer ,platic dome washer .all washer are
available in a variety of sizes ,shapes and material
| type | base material | base size | pin material | pin diameter | pin length |
| bi-metallic weld pins | aluminum alloy 5053 | 6x15mm | Stainless steel 304/316 | 12ga 3mm | 15-500mm |
| Aluminum weld pins | aluminum alloy 5053 | 5x12mm | aluminu m alloy 5053 | 12ga 3mm | 15-500mm |
| features of the 3mmx65mm CD weld bimetallic insulation pins | |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
| Dome cap washer | self-locking washer | |
| metal cap+clips | plastic cap +clips | 3 slots washer |
|
|
|
| Material of the shaft | Material fo the head | Length of the head | Total length | Packing of the Bi-metallic pins |
| Stainless steel | Aluminum | 15mm in common | 35mm | 400pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 45mm | 350pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 55mm | 300pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 65mm | 250pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 80mm | 200pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 95mm | 150pcs/bag,10bags/carton |
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
