3mmx65mm Ship Building Insulation Bimetallic Weld Pins With Aluminum Base

Large Image : 3mmx65mm Ship Building Insulation Bimetallic Weld Pins With Aluminum Base

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAO
Certification:	ISO 9001
Model Number:	stainless steel bimetallic pins

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Packaging Details:	usually 500pcs ,800pcs ,1000pcs per plastic bag ,then in cartons
Delivery Time:	within 15 days
Payment Terms:	L/C,,T/T,Western Union,MoneyGram
Supply Ability:	50000pcs per week

Contact Now

3mmx65mm Ship Building Insulation Bimetallic Weld Pins With Aluminum Base

Description

Product Name:	Bi-metallic Weld Pins	Pin Diameter:	3mm
Base Material:	Aluminum Alloy 6000 Series	Base Size:	6mmx15mm
Pin Material:	Stainless Steel ,galvanized ,copper Coated	Pin Length:	65mm,90mm,100mm,110mm,150mm
Install:	Self Locking Washer ,dome Cap Washer	Service:	Door To Door Service
Sample:	In Stock
Highlight:	3mm stud welding pins , stainless steel stud welding pins , 3mm insulation weld pins

3mmx65mm Ship Building Insulation Bimetallic Weld Pins With Aluminum Base

Product Specifications

Attribute	Value
Product name	bi-metallic weld pins
Pin diameter	3mm
Base material	Aluminum alloy 6000 series
Base size	6mmx15mm
Pin material	Stainless steel, galvanized, copper coated
Pin length	65mm, 90mm, 100mm, 110mm, 150mm
Installation	Self locking washer, dome cap washer
Service	Door to door service
Sample	In stock

Product Description

High-quality 3mm stainless steel insulation bi-metallic weld pins designed for shipbuilding and marine applications.

Key Features

Base material: Aluminum alloy 6xxx series
Base size: 6mmx15mm
Pin material: Stainless steel / carbon steel
Surface treatment: Polished for stainless steel, galvanized and copper coated for carbon steel
Common pin diameter: 3mm
Common pin length: 65mm (also available in 45mm, 75mm, 90mm, 100mm, 110mm, 120mm, 130mm, 150mm)
Installation options: Self locking washer, 3-slots self locking washer, metal dome cap washer, PE dome cap
Primary application: Ship/marine building and repair

Technical Specifications

Base Material	Pin Material	Base Size	Pin Diameter	Total Length
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	40mm
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	50mm
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	55mm
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	60mm
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	75mm
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	90mm
Aluminum alloy 6xxx series	Carbon steel or Stainless steel	6mmx15mm	3mm	150mm

Note: Pin material and length can be customized for large orders.

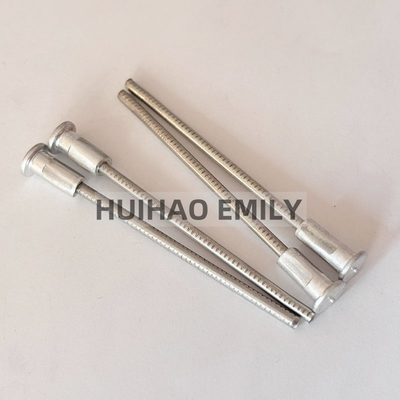

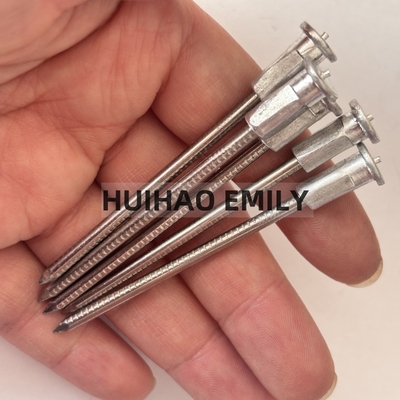

Product Images

Product Advantages

Feature	Description
Better Plating	Weldpin shanks zinc and chromate plated exceeding SMACNA standards for professional appearance. Climatech weldpin shanks are copper plated.
Reduced Downtime	Consistent point quality reduces frequency of machine adjustments.
Stronger Welds	Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Corrosion Resistance	Plating exceeds current SMACNA standards for corrosion resistance.
Temperature Range	Function properly from 0°C to 121°C and not adversely affected at temperatures up to 287°C.
Vibration Resistance	Will not fatigue or be physically affected by vibrations in high velocity air handling systems.

Packaging Options

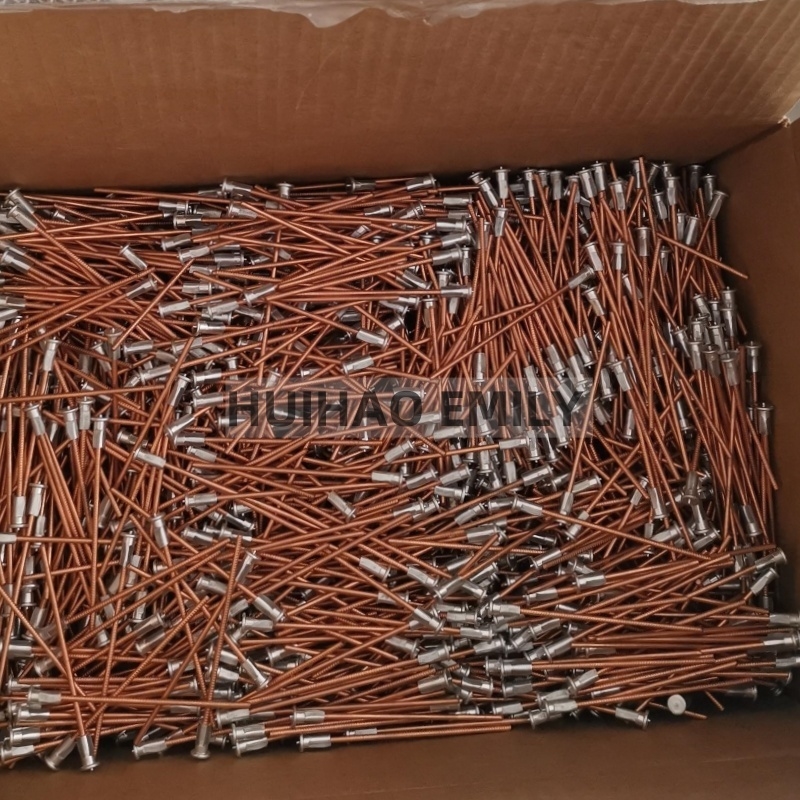

100mm insulation bimetallic pins packaging: 300pcs, 500pcs, or 800pcs in plastic bag + cartons

150mm insulation bimetallic pins packaging: 300pcs, 500pcs, or 800pcs in small carton + cartons

Delivery options: DHL, FEDEX, UPS for express shipping; door to door by sea or air freight.

Frequently Asked Questions

Are you a factory or trader?

Yes, we sell what we manufacture.

How long is your delivery time?

Usually the shipping time is within 7-15 days.

What is your quote based on?

The size of product, material with surface treatment, and the quantity.

Can you provide samples? Is it free or charged?

Yes, we can provide samples for products we have in stock. For special samples, you need to pay the mold fee, which will be returned after confirming the mass order.

How can you ensure the quality?

1. We can supply CAD drawing pictures for you.
2. Our company has ISO certification.
3. We have 20 years of experience manufacturing these products and understand the key quality points.
