4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work

4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work
4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work
4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work

Large Image :  4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Capacitor Discharge Stud Welding Insulation Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1. 1000pcs per carton, 64 cartons per pallet. 2. to be your requirements.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 5000000pcs per 30 days
Contact Now

4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work

Description
Product Name: 4" Capacitor Discharge Stud Welding Insulation Pins Brand: HUIHAO CUSTOM
Material: Carbon Steel Base Size: 30mm
Surface: Copper Plated, Galvanized Pin Diameter: 3.4mm
Samples: Support Pin Length: 4" / 100mm
Highlight:

Capacitor Discharge Stud Welding Insulation Pins

,

Stud Welding Insulation Pins

,

4" Stud Welding Insulation Pins

4" Capacitor Discharge Stud Welding Insulation Pins
Fiberglass Insulation Fasteners For HVAC Duct Work
Attribute Value
Product name 4" Capacitor Discharge Stud Welding Insulation Pins
Brand HUIHAO CUSTOM
Material Carbon Steel
Base Size 30mm
Surface Copper plated, galvanized
Pin Diameter 3.4mm
Samples Support
Pin Length 4" / 100mm
Product Description

Capacitor Discharge Stud Welding Insulation Pins, also called cup head weld pins, are widely used to fasten insulation materials onto metal ducts. Cup head weld pins are welded to the metal after they pierce through the insulation and make contact with the surface.

A Capacity Discharge Stud Welding Machine (CD) is necessary for use with these pins. Pins have a paper washer or can be plastic coated to prevent sparking caused by FRK paper.

Product Specifications
  • Item: Capacitor Discharge Stud Welding Insulation Pins
  • Brand: Huihao Custom
  • Material: Mild steel
  • Plating: Zinc coating is standard for nails and head
  • Bevel: Head edge is beveled to prevent cutting of insulation material
  • Head Size: 1-3/16" (30mm), 1" (25mm) etc.
  • Head Thickness: 0.5mm
  • Nail Diameter: 12Gauge (2.7mm), 11Gauge (3.0mm), 10Gauge (3.4mm)
  • Nail Length: Customizable to your requirements
Product Images
4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 0
Item: Stud Welding Insulation Pins
Base Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 2.7mm
Nail Length: 25mm
Custom sizes and materials available upon request
4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 1
Item: Stud Welding Insulation Pins
Base Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 3.4mm
Nail Length: 25mm
Custom sizes and materials available upon request

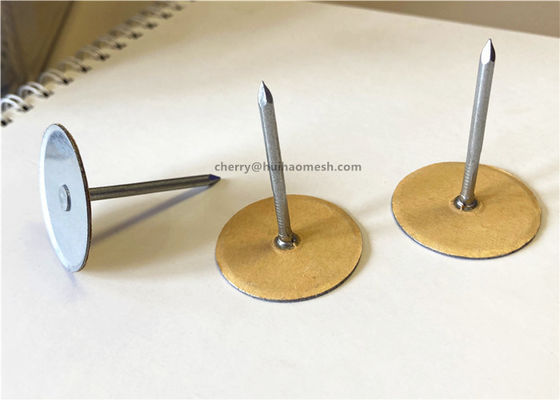

4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 2
Item: Stud Welding Insulation Pins with Paper Washers
Nail Material: Copper Coated Mild Steel
Nail Diameter: 2.7mm
Nail Length: 105mm
Custom sizes and materials available upon request
Applications

Cup Head Stud Welding Insulation Pins are widely accepted as labor-saving fasteners in the thermal and acoustic insulation markets for use in industrial and commercial applications.

4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 3
4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 4
Packaging Options
  • 1000 pcs / 2000 pcs/ 3000 pcs per carton
  • 36 cartons per pallet
  • Custom packaging available upon request
4" Capacitor Discharge Stud Welding Insulation Pins Installing Fiberglass Insulation Fasteners For HVAC Duct Work 5
Frequently Asked Questions
1. Are you a manufacturer or a trader?

We are a manufacturer, located in Hebei province, China.

2. Do you support product customization?

Yes, the material, the size, and the package all could be customized.

3. Can I get samples?

Yes, we can send you samples.

4. Can you accept small orders?

Yes, for common sizes, we could accept small orders.

5. How do you control and ensure product quality?
  • Confirm with you every detail before quoting
  • Reconfirm all details before production
  • Strictly implement "IATF 16949 Quality Management System" standard
  • Provide production and shipment updates with videos and pictures
