7mm Stainless Steel 316 Ring Mesh Curtain for Architectural Constructions - Metal Chainmail Mesh

Large Image : 7mm Stainless Steel 316 Ring Mesh Curtain for Architectural Constructions - Metal Chainmail Mesh

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO9001-2015
Model Number:	stainless steel ring mesh curtain

Payment & Shipping Terms:

Minimum Order Quantity:	5 square meters
Packaging Details:	PP bag + paper carton + wood pallet
Delivery Time:	7-10 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	100 square meters per month

Contact Now

7mm Stainless Steel 316 Ring Mesh Curtain for Architectural Constructions - Metal Chainmail Mesh

Description

Item:	7mm Stainless Steel Ring Mesh Curtains Silver Color	Material:	Stainless Steel 316 Wire
Application:	Architectural Constructions	Type:	Welded Type
Color:	Silver	Wire Diameter:	0.8mm
Surface Finish:	Polish, Titanium Coating	Ring Diameter:	7mm
Highlight:	7mm Ring Mesh Curtain , Stainless Steel Ring Mesh Curtain , Architectural Constructions Ring Mesh Curtain

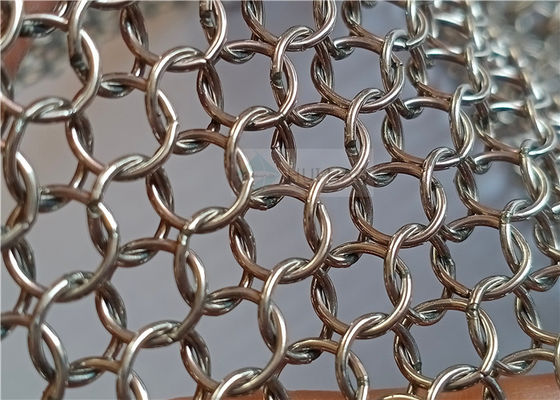

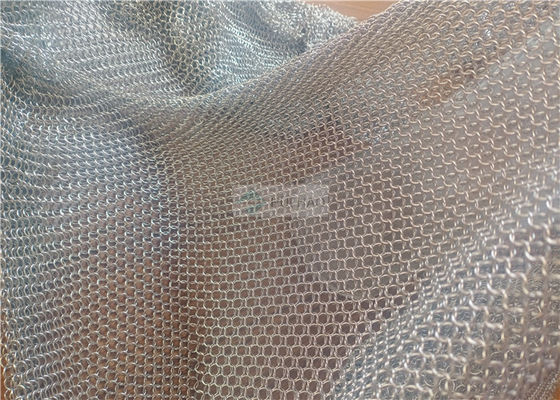

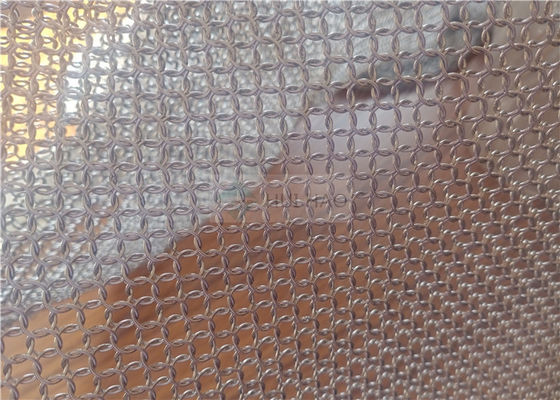

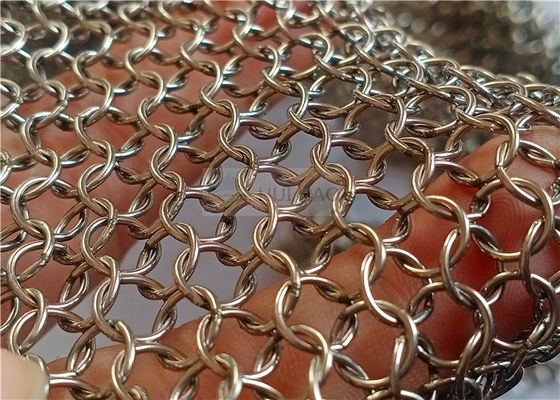

7mm Stainless Steel Ring Mesh Curtains Silver Color Used For Architectural Constructions

Product Overview

Natural Stainless Steel Color Ring Mesh Curtains are widely used for architectural constructions such as: space divider, window curtain, wall decoration, and facade cladding.

This silver metal ring mesh curtain is made of thousands of individual welded stainless steel rings with a polished surface finish. Additionally, this natural stainless steel color ring mesh curtain can be titanium coated into different colors such as gold, brass, bronze, and copper.

Product Specifications

Item	7mm Stainless Steel Ring Mesh Curtains Silver Color
Material	Stainless steel wire
Wire Diameter	0.8mm
Ring Diameter	7mm
Type	Welded type
Color	Silver color (other colors can be customized)
Surface Finish	Polish (titanium coating)
Usage	Space divider, window curtain, wall decoration, facade cladding, etc.
Features	Soft as traditional curtains Easy installation and easy maintenance Corrosion resistance, high temperature resistance and does not fade Unique metallic gloss presents rich visual effects in different light, environments, time periods, and viewing angles

Available Specifications

The following table shows common sizes of metal ring mesh we manufacture. Natural stainless steel color can be electro plated or titanium plated into different colors, with gold, brass, bronze, and rose gold being the most common.

Type	Material	Wire Diameter	Outer Diameter	Weight/m²
Weld	Stainless steel	0.53mm	3.81mm	3.2kgs
Weld	Stainless steel	0.80mm	7.00mm	2.8kgs
Weld	Stainless steel	1.50mm	15.00mm	4.8kgs
Weld	Copper/brass	1.50mm	15.00mm	5.5kgs
Weld	Stainless steel	2.0mm	20.00mm	6.8kgs
Weld	Copper/brass	2.0mm	20.00mm	7.8kgs
Non-welding	Stainless steel	1.0mm	8.00mm	4.7kgs
Non-welding	Stainless steel	1.2mm	10mm	4.8kgs
Non-welding	Copper/brass	1.2mm	10mm	5.5kgs
Non-welding	Aluminum alloy	1.2mm	10mm	2.0kgs
Non-welding	Stainless steel	1.2mm	12mm	4.8kgs
Non-welding	Copper/brass	1.2mm	12mm	5.5kgs
Non-welding	Aluminum alloy	1.2mm	12mm	2.0kgs
Non-welding	Stainless steel	1.5mm	15mm	4.8kgs
Non-welding	Stainless steel	2.0mm	20mm	6.8kgs

Applications

The ring mesh curtains installed with curved tracks create pleasant visual effects through harmonious and orderly curved or straight geometric patterns. Widely used for exterior architectural design.

Metal ring mesh curtains can also be installed with curved rods. The reflection of light through the chain mail mesh forms a continuous overall space. Widely used in the decoration of hotels, museums, discos, stair handrails, concert halls, office buildings, exhibition halls, shopping malls, and upscale resorts.

The ring mesh curtain installed with folding mechanism allows the ring mesh to stretch left and right like a curtain. Often used as sunshading, wall decoration, screens, and shop windows.

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a manufacturer, located in Hebei province, China.

Do you support product customization?

Yes, the material, color, wire diameter, and ring diameter can all be customized.

Can I get samples?

Yes, samples for quality confirmation are supported by our company.

How do you control and ensure product quality?

Confirm every detail with you before quoting
Before production, we reconfirm all details again
During production, we strictly implement "IATF 16949 Quality Management System" standard
We send you videos and pictures during production and shipment process

Advantages of Huihao Mesh:

Competitive price: we sell what we manufacture
On-time delivery: we have auto-production lines to ensure on-time delivery
Excellent quality: we have rich experience, our products meet international standards
Good after-sale service: we offer excellent after-sale service for each order
