Product Details:
|
| Name: | Capacitor Discharge (CD) Welding Pins | Material: | Mild Steel |
|---|---|---|---|
| Nail Dia: | 3mm, 4mm,5mm , Etc 3mm In Common | Length: | 20mm-350mm As Request . |
| Surface Treatment: | Copper Coating Or Zinc Plated | Trail Order: | Support |
| Sample: | Available | ||
| High Light: | 3 x 60 mm stud welding insulation pins,copper coated stud welding insulation pins,3 x 60 mm capacitor discharge weld pins |
||

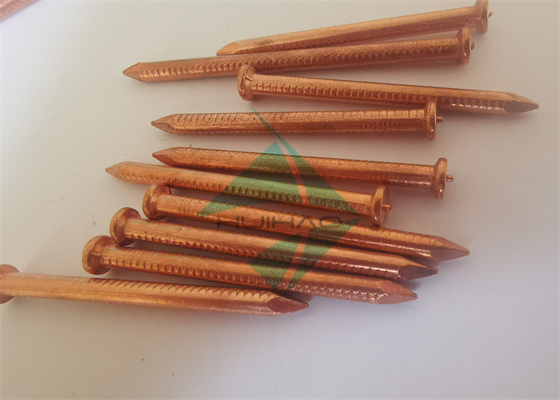

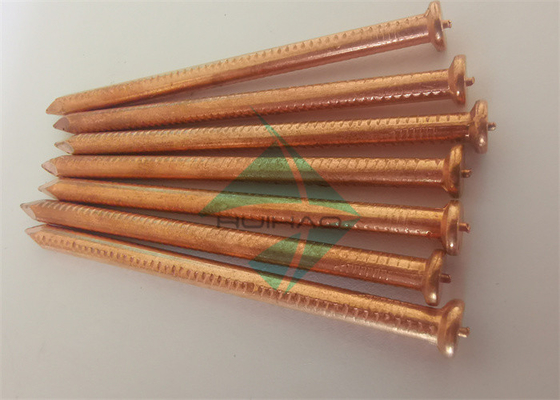

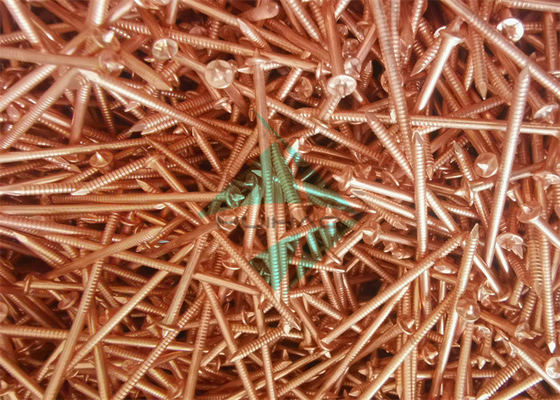

Name : Capacitor Discharge (CD) Welding Pins , also named insulation welding pins .
Material:Mild steel in common , also could be other metal steel , such as stainless steel , aluminum , etc
Pins diameter: 3mm diameter in common , also could be customized diameter, such as 10Ga, 12Ga,14Ga,4mm,5mm, etc
Pins Length : 20mm-350mm , the length could be customized according to the customer's requirements.
Surface treatment:Copper colated in common , also cvould be zinc plated for the mild steel .
MOQ:10,000 pcs
Application:Capacitor Discharge (CD) Welding Pins are used for attaching insulation to various metals, with the use of a CD Welder. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer
>>> Common types for Capacitor Discharge (CD) Welding Pins
| Capacitor Discharge (CD) Welding Pins | ||
| Material of the Capacitor Discharge (CD) Welding Pins |
Pin diameter of the Capacitor Discharge (CD) Welding Pins |
Length of the Capacitor Discharge (CD) Welding Pins |
|
MIld steel in common, or aluminum material , also could be stainless ssteel 304/316 material |
1mm,1.5mm | 10mm,15mm,20mm ,30mm or customized |
| 1.5-2.0mm |
15mm,20mn,30mm,40mm,45mm,50mm or customized |
|
| 2.0-3.0mm |
25mn,30mm,40mm,45mm,50mm or customized |
|
| 3.0-6.0mm |
30mm,40mm,45mm,50mm,60mm, 80mm, 90mm, 110mm, 150mm, etc or customized |
|
| Pins Diameter & Length is as your requirement. | ||
| surface finished | copper plated or zinc coated for mild steel weld pins. | |
| Fixing parts | Speed clips , self locking washers, dome cap washers , etc | |
| Application | blanket insulation to ducts, ovens, boilers and hot/cold equipment. | |
Features of the the Capacitor Discharge (CD) Welding Pins
| Advantages Of the Capacitor Discharge (CD) Welding Pins | |
|
Better Plating |
Plating exceeds SMACNA standards and providing a professional appearance |
|
Reduced Down Time |
Consistent point quality reduces frequency of machine adjustments. |
|
Stronger Welding |
Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
|
Corrosion Resistance |
Plating exceeds current SMACNA standards for corrosion resistance. |
|
Temperature Range |
CD Weld pins function properly over normally accepted operating range of temperatures of 0℃ to 121℃ and are not adversely affected at temperatures of 0℃ to 287℃. |
| Vibrations | CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
