Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Large Image :  Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Product Details:
Place of Origin: CHINA
Brand Name: no brand
Certification: ISO
Model Number: AUCUSTOM-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD600-USD860/SET
Packaging Details: EXPORT STANDARD WOODEN BOX
Delivery Time: 7 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500SETS PER MONTH
Contact Now

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Description
Name: Double Guns Welder Size: 420X230X270MM
Voltage: Ac220V 50HZ Application: Duct Weld Pins
PROTECT GRATE: IP21S Weld Speeds: 20-30 PCS /MIN
Output Voltage: DC36-95V Charging Voltage: 30-200
Highlight:

double guns pin stud welder

,

air duct ventilator pin stud welder

,

double guns stud pin welder

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Gun Welder

Specifications of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

voltage ac220V 50HZ
Charging voltage 30-200
Equipment power 450W
Capacitance 94000UF
PROTECT GRATE IP21S
SIZE 420X230X270MM
WEIGHT <19KGS
Capacitor Set to Bear Electric Pressure <DC95V
output voltage DC36-95V
NAIL LENGTH RANGE 5MM-270MM
WELDING SPEED 20-30 PCS /MIN
POWER TYPE Capacitance Energy Storage



Images details of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 0Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 1

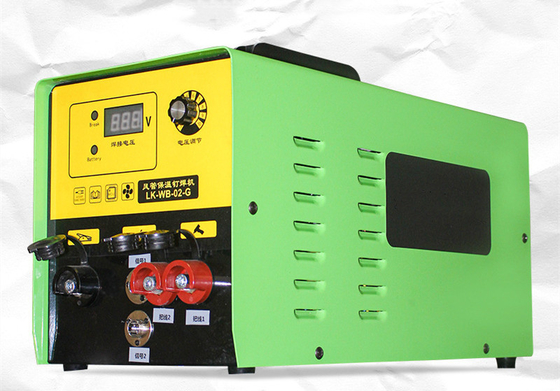

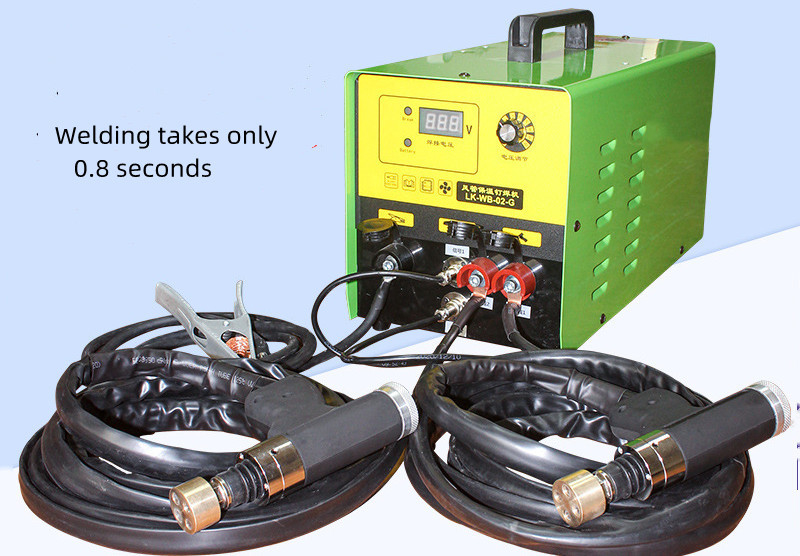

Details of  Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

  • The welding gun has 1 second back pressure time during operation.
  • Knob adjustment, high-definition digital display, simple fabrication, improved efficiency and more firm welding
  • Metal shell, plastic spraying process, dustproof and waterproof.
  • Inclined air outlet design and waterproof and dustproof cover design of the interface effectively prevent damage and corrosion of internal components
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 2 DIGITAL CONTROL IS MORE EFFICIENT Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 3
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 4 All copper ring transformer
High temperature resistant copper wire
Non burning machine with temperature control protection
Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 5 Flat thyristor
Greatly improve welding performance



Applications of Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder

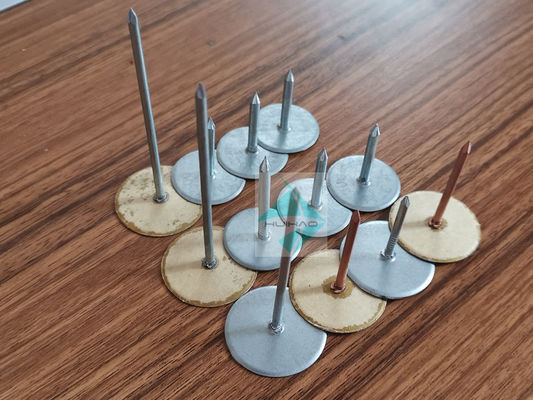

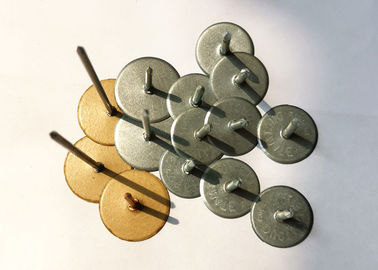

Name CD Weld Pins For Insulation
Pin Material Low carbon steel or stainless steel
Pin Surface Finish galvanized is standard, copper plating is available upon special request.
Head Material Low carbon steel or stainless steel
Head Surface Finish galvanized is standard
Head Edge

Beveled edge washer to prevent cutting of insulation material.

Flat edge washer style also standard.
Head Diameter 1" (25mm), 1-1/2" (38mm), 1-3/16" (30mm)
Head Thickness 0.4mm or 0.5mm
Pin Diameter 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm)
Pin Length 3/8” 7/8” 1” 1-1/8” 1-3/8” 1-1/2” 1-7/8” 2” 3” 4” etc.
Application Duct insulation, metal building insulation

Air Duct Ventilator Weld Pin Capacitance Energy Storage Double Guns Welder 6
