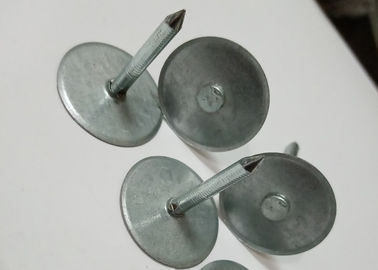

Galvanized Steel Cuphead Weld Pins Used In Capacitor Discharge Stud Welding Processes For Metal Ductwork Insulation

Large Image : Galvanized Steel Cuphead Weld Pins Used In Capacitor Discharge Stud Welding Processes For Metal Ductwork Insulation

Product Details:

Place of Origin:	China
Brand Name:	huihao
Certification:	ISO
Model Number:	stud welding insulation pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	1. 1000pcs/2000pcs/3000pcs per carton, 48 cartons per pallet. 2. to be your requirements.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	5000000pcs per 30 days

Contact Now

Galvanized Steel Cuphead Weld Pins Used In Capacitor Discharge Stud Welding Processes For Metal Ductwork Insulation

Description

Product Name:	Cuphead Weld Pins For Metal Ductwork Insulation	Brand:	Huihao Custom
Material:	Carbon Steel	Pin Dia:	2.7mm, 3.0mm, 3.4mm Etc.
Surface Treatment:	Copper Plated, Galvanized	Base Dia:	25mm, 30mm
Samples:	Available	Length:	As Your Request
Highlight:	Stud Welding Insulation Pins , Cup Head Stud Welding Insulation Pins , Galvanized Steel Stud Welding Insulation Pins

Galvanized Steel Cuphead Weld Pins Used In Capacitor Discharge Stud Welding Processes For Metal Ductwork Insulation

Attribute	Value
Product name	Cuphead Weld Pins For Metal Ductwork Insulation
Brand	Huihao Custom
Material	Carbon Steel
Pin diameter	2.7mm, 3.0mm, 3.4mm etc.
Surface treatment	Copper plated, galvanized
Base diameter	25mm, 30mm
Samples	Available
Length	As your request

Description Of Cuphead Weld Pins For Metal Ductwork Insulation

Cuphead weld pins are used to fixing the insulation materials to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.

For pricing or samples, please contact: cherry@huihaomesh.com

Pin Material: Low carbon steel or stainless steel
Pin Surface Finish: Galvanized is standard, copper plating available
Base Material: Low carbon steel or stainless steel
Base Surface Finish: Galvanized is standard
Base Edge: Beveled edge washer to prevent cutting of insulation material
Application: Duro-Dyne auto feed resistance welding equipment
Head Diameter (WD): 25mm, 30mm
Pin Diameter (D): 2.7mm, 3.0mm, 3.4mm
Length (L): As your request

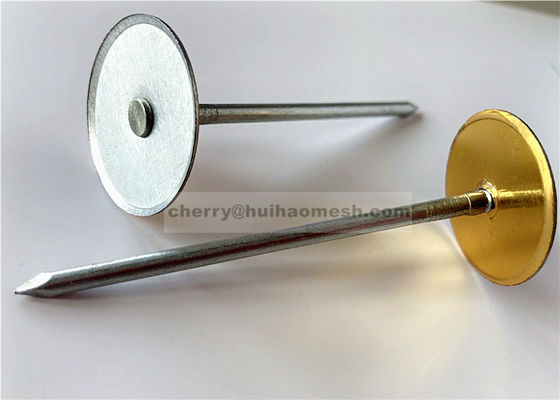

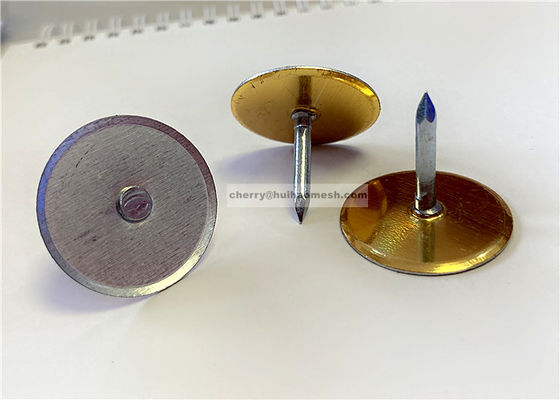

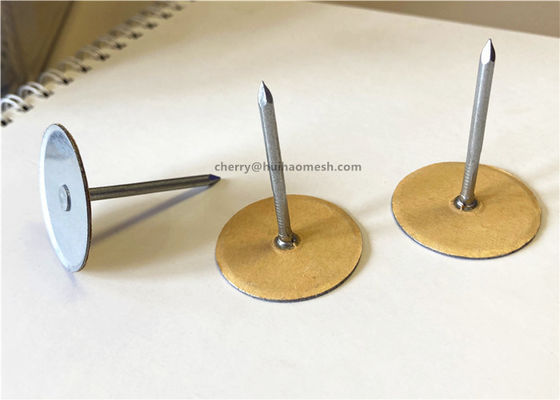

Detailed Images Of Cuphead Weld Pins

Item: Cuphead Weld Pins
Material: Mild Steel
Surface Finish: Galvanized
Head Size: 30mm
Pin Diameter: 2.7mm
Pin Length: As your request

Item: Cup Head Weld Pins
Material: Mild Steel
Surface Finish: Galvanized
Head Size: 30mm
Head Thickness: 0.4mm
Pin Diameter: 3.4mm
Pin Length: As your request

Item: Cup Head Weld Pins
Material: Mild Steel
Surface Finish: Galvanized
Head Size: 30mm
Head Thickness: 0.4mm
Pin Diameter: 2.7mm
Pin Length: As your request

Application Of Cuphead Weld Pins

Cuphead weld pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for the use of in commercial, residential and industrial buildings. The cuphead weld pins are welded to the metal after they pierce through the insulation and make contact with the surface. A capacity discharge stud welding machine (CD) is necessary for the use of the cuphead weld pins.

Frequently Asked Questions

1. Are you manufacturer or trader?

We are the manufacturer and we sell what we make.

2. Do you support product customization?

Yes, the material, the size, the length all could be customized according to your request.

3. Can you accept small orders?

Yes, for common size, we could accept small orders.

4. Can I get samples?

Yes, we can send you samples.

5. What is your advantages for the cup head weld pins?

Competitive price: we sale what we manufacture
Excellent quality: we have rich experience, our products are in line with international standard
Good after-sale service: we offer good after-sale service for each order
Our cup head weld pins are consistent in price, quality and delivery service
