Copper Plated Low Carbon Steel Capacitor Discharge Insulation Weld Pins 3mm

Quick Details Of The Capacitor Discharge Insulation Weld Pins

Capacitor Discharge Insulation Weld Pins are used for attaching insulation to various metals,
with the use of a CD welder. After the pin is welded in place, the insulation is impaled on the
pin and secured with a self-locking washer.

Material
Low carbon steel, Aluminum, Stainless steel
Plating
Cooper plating for low carbon steel
No Plating for Aluminum or stainless steel
Self-locking washer
Available in all kinds of shapes, sizes and materials
Size
Pin Diameter: 10GA( 3.4mm), 3mm, 12GA( 2.7mm) 14GA(2.0mm)
Pin Length
3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 6-1/2" 7" etc
Features
1. Standard weld points, easy welding
2. Pins soft, easy bending over
3. Sharp points,easy going through any insulation blanket
Application
1: weld pins in place
2: install insulation on pins
3: press washers on pins
4: bend over the pin or clip off the pins

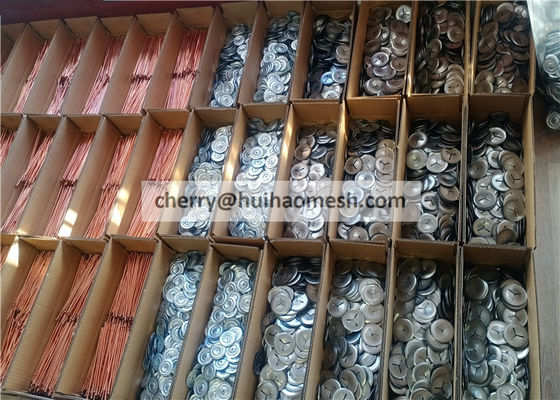

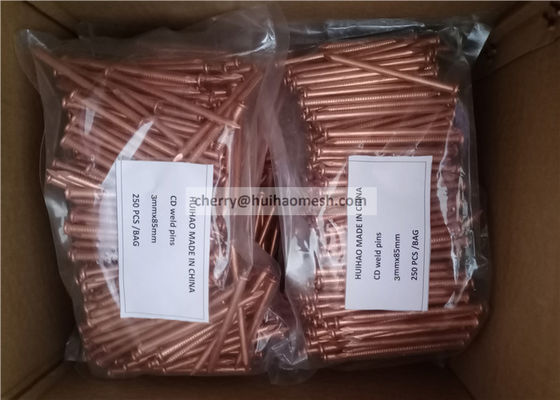

Package
1. 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ),
2. 10 bags in one carton box,
3. then in one pallet
4. the package can be can according your request



Detailed Images Of The Capacitor Discharge Insulation Weld Pins

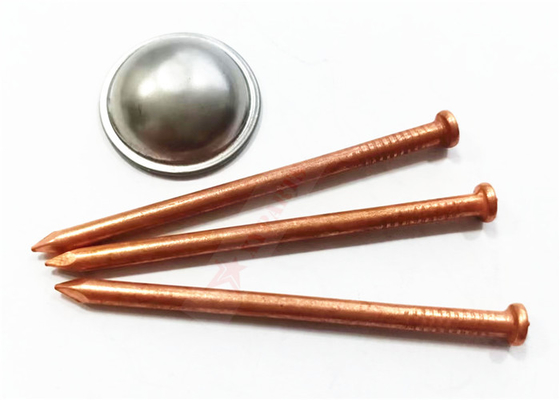

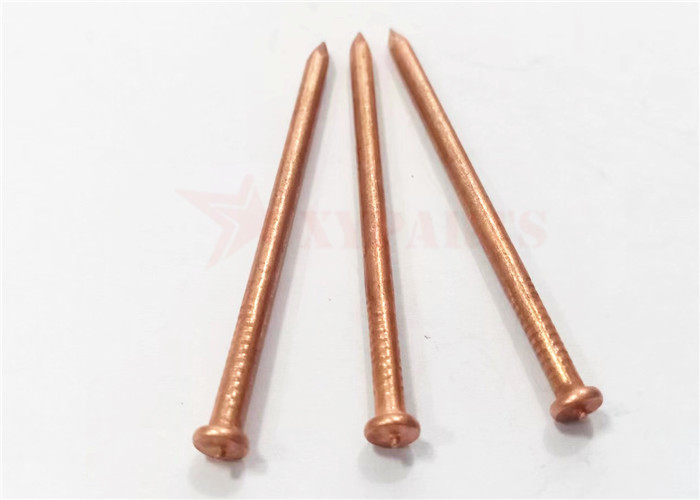

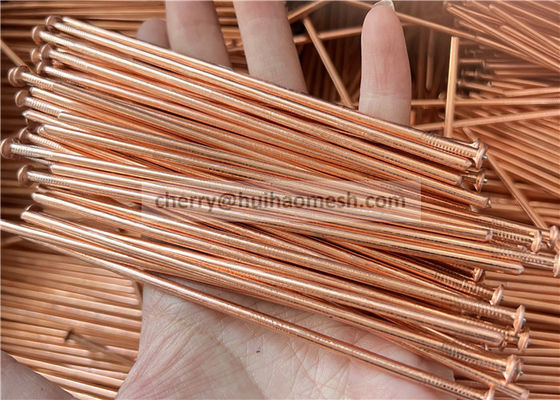

	Item: Capacitor Discharge Insulation Weld Pins Material: Low  carbon steel Surface: Copper coating Wire Diameter: 3mm Length: 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 6-1/2" 7" etc.
Item: Capacitor Discharge Insulation Weld Pins Material: Aluminum Wire Diameter: 3mm Length: 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 6-1/2" 7" etc.
	Item: Capacitor Discharge Insulation Weld Pins Material: Stainless steel Wire Diameter: 3mm Length: 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 6-1/2" 7" etc.
