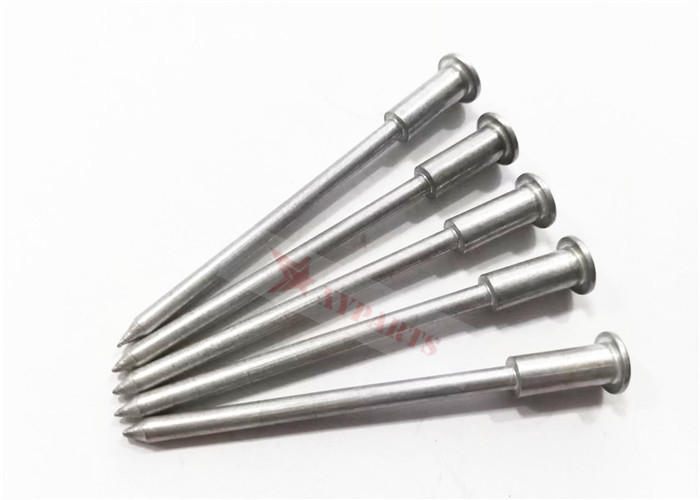

3mm X 60mm Stud Welding Pins Bi Metallic 5000 Aluminum Material

Large Image : 3mm X 60mm Stud Welding Pins Bi Metallic 5000 Aluminum Material

Product Details:

Place of Origin:	china
Brand Name:	HUIHAOCUSTOM
Certification:	ISO9001-2015
Model Number:	aluminum stud welding pins

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	500 pcs per pp bag, 10 bags per carton for stud welding pins
Delivery Time:	8 work days
Payment Terms:	L/C,T/T
Supply Ability:	30000pcs per day

Contact Now

3mm X 60mm Stud Welding Pins Bi Metallic 5000 Aluminum Material

Description

Name:	Bi-Metallic Capacitor Discharge (CD) Stud Welding Pins	Application:	For Marine Insulation
Base Material:	5000 Series Aluminum	Base Size:	6x15mm
Pin Material:	Aluminum	Pin Size:	3mm X 60mm
Install Parts:	Self Locking Washers	Sample:	Free For Size In Stock
Highlight:	3mm x 60mm stud welding pins , bi metallic stud welding pins , aluminum 5053 capacitor discharge weld pins

3mm X 60mm Stud Welding Pins Bi Metallic 5000 Aluminum Material

Product Specifications

Attribute	Value
Name	Bi-Metallic Capacitor Discharge (CD) Stud Welding Pins
Application	For marine insulation
Base Material	5000 series aluminum
Base Size	6x15mm
Pin Material	Aluminum
Pin Size	3mm x 60mm
Install Parts	Self locking washers
Sample	Free for size in stock

Product Description

Bimetallic Pins are suitable for drawn arc and capacitor discharge stud welding. It is an insulation pin pressed into an aluminum bushing, allowing welding of the insulation pin on aluminum ground material.

We offer various self-locking washers/clips to fasten the insulation material on the insulation pins. Other materials and dimensions are available upon request.

For inquiries about insulation pins or self-locking washers, please contact us for pricing or samples:

Email: cherry@huihaomesh.com

Manufacturer: Huihao Hardware Mesh Product Limited

Key Features

High welding quality
Easy to weld
Quick mounting
Installable in all positions
Fire-resistant

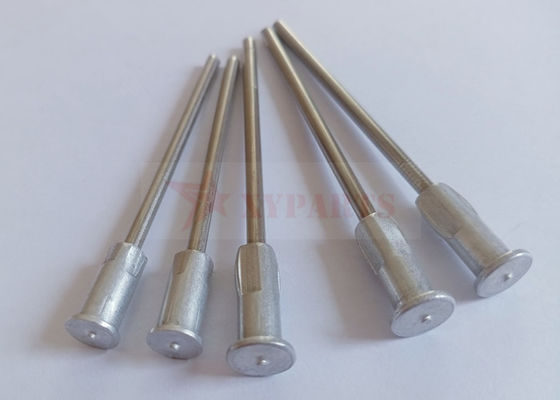

Item: Bimetallic Capacitor Discharge (CD) Stud Welding Pins
Base Material: aluminum alloy
Pin Material: stainless steel
Pin Diameter: 3mm
Pin Length: 30-300mm
Self Locking Washer: 38mm standard

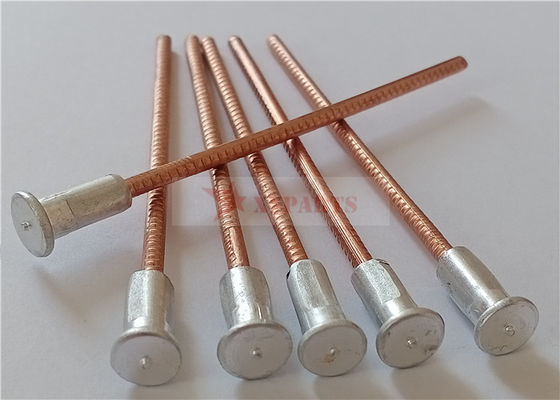

Item: Bimetallic Capacitor Discharge (CD) Stud Welding Pins
Base Material: aluminum alloy
Pin Material: copper coated carbon steel
Pin Diameter: 3mm
Pin Length: 30-300mm
Self Locking Washer: 38mm standard

Item: Bimetallic Capacitor Discharge (CD) Stud Welding Pins
Base Material: aluminum alloy
Pin Material: aluminum alloy
Pin Diameter: 3mm
Pin Length: 30-300mm
Self Locking Washer: 38mm standard

Frequently Asked Questions

For technical data and specifications of stud welding pins & accessories, contact us by email for immediate response.

Small orders are welcome - we maintain common sizes of stud welding pins & accessories in stock.

Samples are available to confirm product details.

We offer door-to-door delivery service - contact us for delivery time estimates.

Our factory meets ISO9001-2008 Quality Management Certification System, ensuring raw material quality and products that meet international standards.

Accessories

Item: Self Locking Washers with or without dome caps
Available Sizes: 22mm, 25mm, 28mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.

Packaging Options

100 pcs, 200 pcs, 300 pcs, or 500 pcs in one plastic bag (depending on pin length)
10 bags in one carton box
Packed on pallets
Custom packaging available upon request
