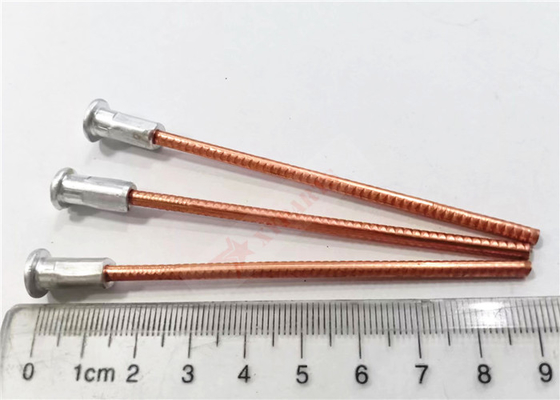

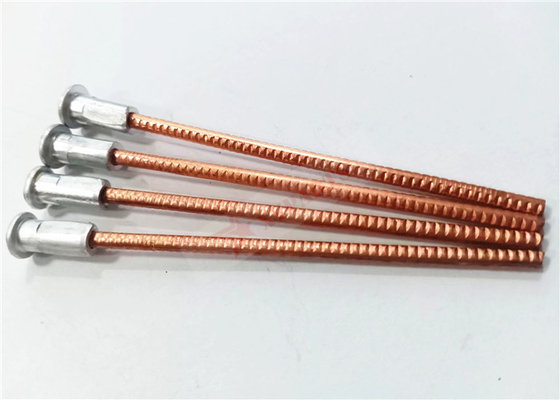

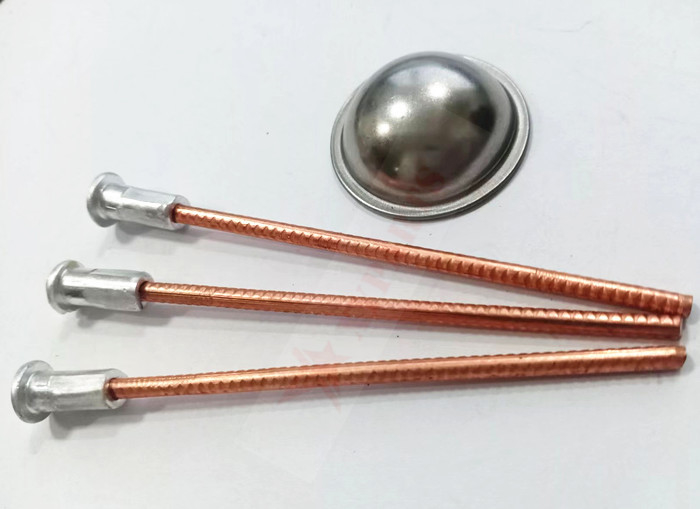

Product Details:
|
| Name: | Capacitor Discharge (CD) Bimetallic Weld Pins | Application: | For Marine Insulation |
|---|---|---|---|
| Base Material: | 5000 Series Aluminum | Base Size: | 6x15mm |
| Pin Material: | Mild Steel With Copper Coating | Pin Size: | 3mm X 90mm |
| Install Parts: | Self Locking Washers | Sample: | Free For Size In Stock |
| High Light: | 3mm x 90mm capacitor discharge weld pins,marine insulation capacitor discharge weld pins |
||
The Bimetallic Weld Pins are primarily designed as welded fasteners to secure blanket and
board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or
cold equipment.
|
|
 |
|
|
| Base Material | Pin Material | Diameter | Length |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 50mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 65mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 70mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 85mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 90mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 100mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 110mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 130mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 150mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 160mm |
| 5000 Series Aluminum | Stainless steel/copper coated mild steel | 3,4,5,6mm | 180mm |
|
1. The pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment. welding process. 5. The base material is 5000 series aluminum alloy with enough hardness. 6. The pins material is stainless steel or copper coated mild steel |
|||
Cooperate with us, we can ensure:
1: Competitive price: we sale what we manufacture.
2: On-time delivery: we have the auto-production line to ensure the on-time delivery.
3: Excellent quality: we have rich experience for the cd weld pins, our products are in line with
international standard.
4: Good after-sale service: we offer good after-sale service for each order.
1. 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ),
2. 10 bags in one carton box,
3. then in one pallet
4. the package can be can according your request
