Product Details:
|
| Product Name: | Stainless Steel CD Welding Pins | Diameter: | 10GA 12GA 14GA 3mm |
|---|---|---|---|
| Length: | As Your Request | Material: | Mild Steel Or Stainless Steel Or Aluminum |
| Surface Finish: | Copper Plated | Washer Type: | Dome Caps |
| High Light: | 10ga cd weld pins,insulation hanging cd weld pins,12ga stud welding pins |
||
Materal: mild steel, stainless steel and aluminum
Plating:mild steel pins are copper plated
Washers:various types of steel, stainless steel and aluminum self locking washers
Standard nail point is used for most applications, nut also available
The CD welding pins is a Low Carbon Steel, Stainless Steel or Aluminum weld pin
that is ideal to apply with pin welding or stud welding equipment.
Manufactured with a standard capacitor discharge weld tip and flange, the CD welding pins
is popularly used as an insulation fastener, in combination with self locking washers
(or “speed clips”) to secure insulating material.
We recommend Capacitor Discharge Pins for welding to clean surfaces.
 |
Size | D | FD(Steel) | FD(Aluminum) | L |
| 14GA | 0.08" | 0.160" | --- | 3/4" | |
| 1" | |||||
| 1-1/2" | |||||
| 2" | |||||
| 2-1/2" | |||||
| 3" | |||||
| 12GA | 0.105" | 0.180" | 0.230" | 3/4" | |
| 1" | |||||
| 1-1/2" | |||||
| 2" | |||||
| 2-1/2" | |||||
| 3" | |||||
| 3-1/2" | |||||
| 4" | |||||
| 4-1/2" | |||||
| 5" | |||||
| 5-1/2" | |||||
| 6" | |||||
| 7" | |||||
| 8" | |||||
| 3mm | 0.118" | 0.190" | 0.240" | 25mm | |
| 30mm | |||||
| 35mm | |||||
| 40mm | |||||
| 45mm | |||||
| 50mm | |||||
| 55mm | |||||
| 60mm | |||||
| 65mm | |||||
| 70mm | |||||
| 75mm | |||||
| 100mm | |||||
| 125mm | |||||
| 150mm | |||||
| 10GA | 0.135" | 0.195" | 0.250" | 1" | |
| 1-1/2" | |||||
| 2" | |||||
| 2-1/2" | |||||
| 3" | |||||
| 3-1/2" | |||||
| 4" | |||||
| 4-1/2" | |||||
| 5" | |||||
| 5-1/2" | |||||
| 6" | |||||
| 7" | |||||
| 8" | |||||
| 9" |
| MATERIAL | MILD STEEL | STAINLESS STEEL | ALUMINUM |
|---|---|---|---|
| C - 0.23% max. P - 0.04% max. Mn - 0.90% max. S - 0.05% max. |
AISI Grade: 302/304/305 Standard Other grades are available. |
Alloy 1110-H14 standard. Other alloys available by request. |
|
| MECHANICAL PROPERTIES |
Tensile- 60,000 psi (min.) Elongation: 20% (in 2 inches) |
---------- | ---------- |
| PLATING | Galvanized and copper plating are available for low carbon steel. | ---------- | |
| ANNEALING | Pins are annealed where required. | ---------- |
1) Length of this style pin should exceed the thickness of the insulation, in order to securely
attach the self-locking washer.
2) Nail point is standard - available with "blunt end" as special order.
3) Insulation CD welding pins simplify the permanent attachment of insulation to just about
any kind of construction metal surface.
4) They can be applied quickly and easily using standard CD or Arc stud welding equipment.
5) Weld pins are available in different styles to cover a wide variety of applications.
6) Some factors to consider regarding the pin style needed for your job would be the base
metal type size and surface condition, and also the welding equipment to be used.
1. Aluminum Insulation CD Welding Pin

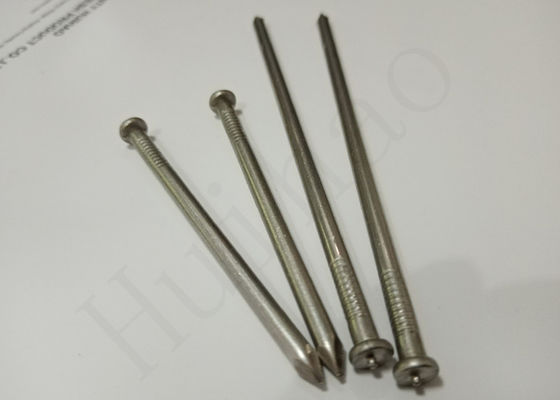

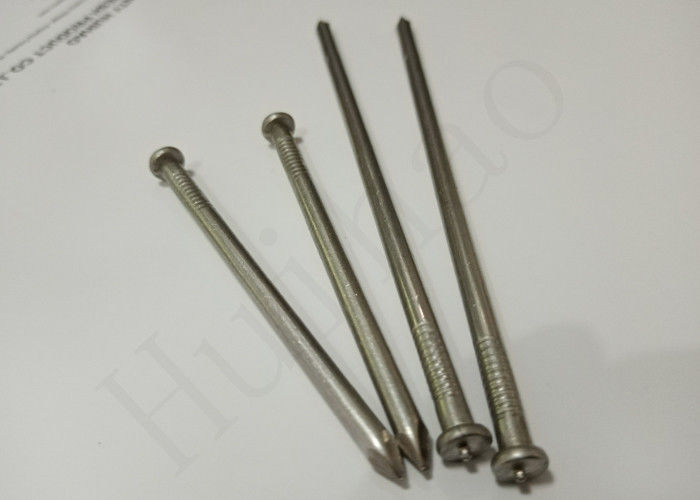

2.Stainless Steel CD Weld Pins

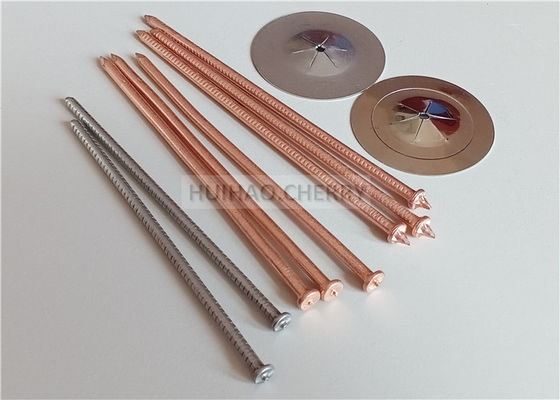

3. Copper Coated Mild Steel Insulation CD Weld Pins
