Galvanized Steel Conical Tip Capacitor Discharge (CD) Weld Pins

Introduction To The Conical Tip Capacitor Discharge (CD) Weld Pins:



Capacitor Discharge (CD) Weld Pins are commonly used to attach blanket insulation to ducts, ovens, boilers and hot or cold equipment. The pins are welded in place, the insulation impaled over the pin and then self locking washers are installed over the pin to secure the insulation.



1. Mild Steel Conical Tip Capacitor Discharge (CD) Weld Pins:



Materal: Mild Steel

Finish: Zinc coated or copper plated

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.

Pin Dia: 11GA Or 10GA

Flange Size: 0.165" Or 0.188"

Flange Height: 4mm

Length: 1/2"-10"



	D	FD Width	FD Height	L
	11 Ga	0.165"	4mm	1/2"-8"
	10 Ga	0.188"	4mm	1"-10"

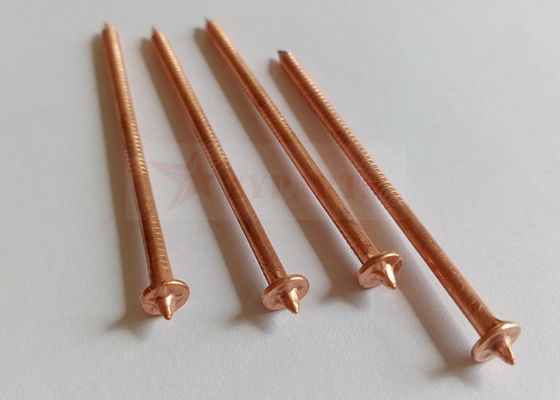

	Copper Coated Mild Steel Conical Tip CD Weld Pins Pin Diameter: 12GA Pin Length:1/2"-8" Flange Width:0.165" Flange Height: 4mm Pin Diameter:10GA Pin Length:1"-10" Flange Width:0.188" Flange Height:4mm

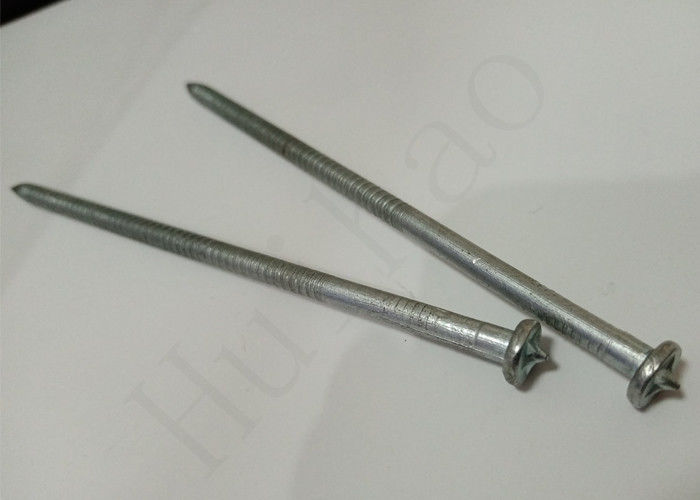

	Galvanized Steel Conical Tip Capacitor Discharge (CD) Weld Pins Pin Diameter: 12GA Pin Length:1/2"-8" Flange Width:0.165" Flange Height: 4mm Pin Diameter:10GA Pin Length:1"-10" Flange Width:0.188" Flange Height:4mm



2. Specification Of The Aluminum Alloy 1100-H14 Capacitor Discharge (CD) Weld Pins



Materal: Aluminum Alloy 1100-H14

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.

Pin Dia: 11GA Or 10GA

Flange Size: 0.220" Or 0.250"



	Size	D	FD	L
	11GA	0.105"	0.220"	As Your Request
	10GA	0.135"	0.250"	As Your Request

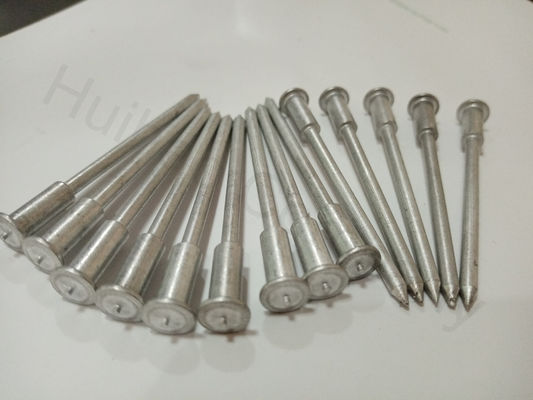

Aluminum Alloy 1100-H14 Capacitor Discharge (CD) Weld Pins Pin Diameter: 12GA Pin Length:1/2"-8" Flange Width:0.165" Flange Height: 4mm Pin Diameter:10GA Pin Length:1"-10" Flange Width:0.188" Flange Height:4mm



3. Specification Of Stainless Steel Capacitor Discharge (CD) Weld Pins



Materal: Stainless Steel 304, 316, 316L

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.

Pin Dia: 11 Ga or 10 Ga etc.

Flange Size: 0.220" Or 0.250"



	Size	D	FD	L
	11GA	0.105"	0.220"	As Your Request
	10GA	0.135"	0.250"	As Your Request

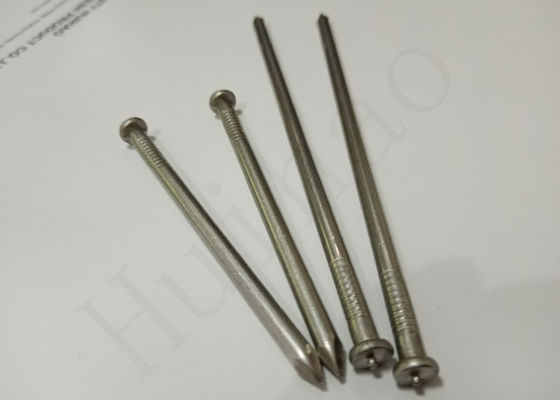

Aluminum Alloy 1100-H14 Conical Tip Capacitor Discharge (CD) Weld Pins Pin Diameter: 12GA Pin Length:1/2"-8" Flange Width:0.165" Flange Height: 4mm Pin Diameter:10GA Pin Length:1"-10" Flange Width:0.188" Flange Height:4mm



Stud Welding System Of Conical Tip Capacitor Discharge (CD) Weld Pins:

the standard, portable CD system consists of:

> The Controller or (Power Unit) which is plugged into the one-hundred-and-ten-volt outlet.

> The CD Gun with Cables is used to command the power unit and deliver weld current, with the Gun also serving as the Pin holder to properly place the pin during welding.

> Then, on the other side of “the circuit” a ground cable and clamping connection is attached to the work-surface to complete our Capacitor Discharge connections.

> And finally, special Accessories are used to hold the Pin in the Gun.
