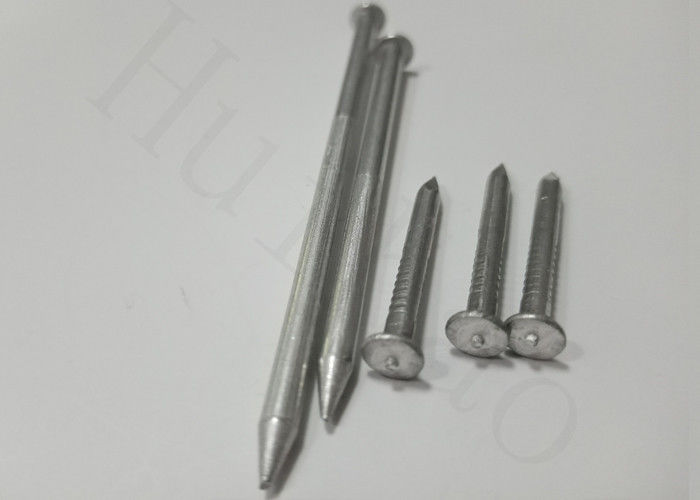

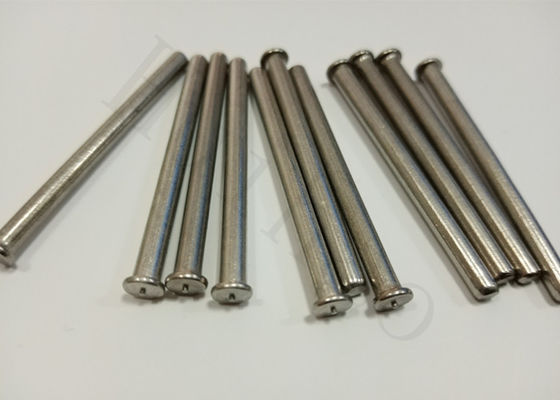

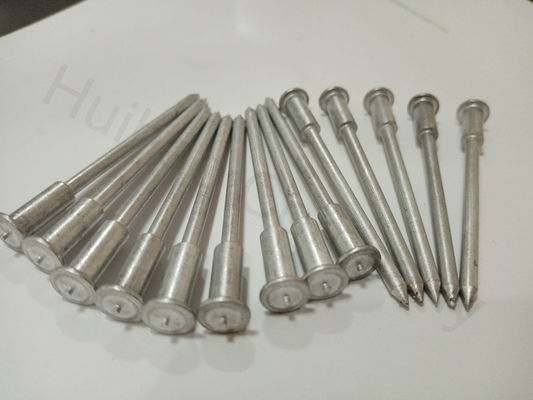

Introduction Of CD Welding Insulation Pins:
Hi, it's Cherry from Huihao Company, we are the manufacture of CD Welding Insulation Pins, CD Welding Insulation Pins are used for attaching insulation to various metals, with the use of a CD welder. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
We choose high standard stainless steel or copper coated steel, or aluminum alloy material to make CD Welding Insulation Pins, they are with good welding performance and easy to be bent.
For the CD Welding Insulation Pins, we have fully automatic production line and strict quality control system to make sure the quick delivery and good quality.
If you are in need of CD Welding Insulation Pins, please feel free to ask me a price or sample.
1. The CD welding pins is a low carbon steel, stainless steel or aluminum weld pin that is ideal to apply with pin welding or stud welding equipment.
2. Manufactured with a standard capacitor discharge weld tip and flange, the CD welding pins are popularly used as an insulation fastener, in combination with self locking washers (or “speed clips”) to secure insulating material.
3.Materal: mild steel, stainless steel and aluminum

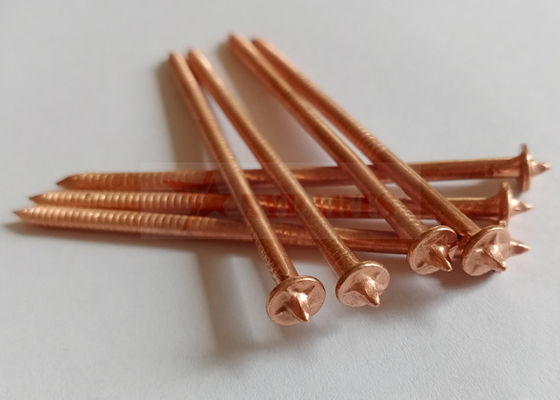

4.Plating:mild steel pins are copper plated
5.Washers:various types of steel, stainless steel and aluminum self locking washers
6.Standard nail point is used for most applications, nut also available
Specification Of CD Welding Insulation Pins:
1.Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
2. Nail point is standard - available with "blunt end" as special order.
3. Insulation CD welding pins simplify the permanent attachment of insulation to just about any kind of construction metal surface.
4. They can be applied quickly and easily using standard CD or Arc stud welding equipment.
5. Weld pins are available in different styles to cover a wide variety of applications.
6. Some factors to consider regarding the pin style needed for your job would be the base metal type size and surface condition, and also the welding equipment to be used.
 |
Size |
D |
FD(Steel) |
FD(Aluminum) |
L |
| 14GA |
0.08" |
0.160" |
--- |
3/4" |
| 1" |
| 1-1/2" |
| 2" |
| 2-1/2" |
| 3" |
| 12GA |
0.105" |
0.180" |
0.230" |
3/4" |
| 1" |
| 1-1/2" |
| 2" |
| 2-1/2" |
| 3" |
| 3-1/2" |
| 4" |
| 4-1/2" |
| 5" |
| 5-1/2" |
| 6" |
| 7" |
| 8" |
| 3mm |
0.118" |
0.190" |
0.240" |
25mm |
| 30mm |
| 35mm |
| 40mm |
| 45mm |
| 50mm |
| 55mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 100mm |
| 125mm |
| 150mm |
| 10GA |
0.135" |
0.195" |
0.250" |
1" |
| 1-1/2" |
| 2" |
| 2-1/2" |
| 3" |
| 3-1/2" |
| 4" |
| 4-1/2" |
| 5" |
| 5-1/2" |
| 6" |
| 7" |
| 8" |
| 9" |
Material Technical Data Of CD Welding Insulation Pins:
| MATERIAL |
MILD STEEL |
STAINLESS STEEL |
ALUMINUM |
C - 0.23% max.
P - 0.04% max.
Mn - 0.90% max.
S - 0.05% max. |
AISI Grade: 302/304/305 Standard
Other grades are available. |
Alloy 1110-H14 standard.
Other alloys available by request. |
| MECHANICAL PROPERTIES |
Tensile- 60,000 psi (min.)
Yield - 50,000 psi (min.)
Elongation: 20% (in 2 inches)
|
---------- |
---------- |
| PLATING |
Galvanized and copper plating are available for low carbon steel. |
---------- |
|
| ANNEALING |
Pins are annealed where required. |
---------- |
