Product Details:
|
| Product Name: | Copper Plated Mild Steel Flanged Capacitor Discharge (CD) Weld Studs | Material: | Mild Steel Or Stainless Steel Or Aluminum Or Brass |
|---|---|---|---|
| Surface Finish: | Copper Plated | Size: | M3-M10 |
| High Light: | m3 flanged capacitor discharge studs,copper plated flanged capacitor discharge studs,m10 cd weld stud |
||
1) Capacitor Discharge weld studs are designed to be welded to thin gauge sheet material
using tip ignition according to the capacitors discharge welding process.
2) Capacitor Discharge weld studs are available in many different sizes, from a base diameter
of a 2 mm stud up to 12 mm.
3) Standard material for CD Studs are: Low Carbon Copper Flashed Steel, Stainless Steel,
Aluminum Alloy, and Brass.
4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.
5) The stud flange is designed according to EN ISO 13918.
6) Studs made of steel 4.8 are protected against corrosion by copper coating.
(Thickness : 3 to 5 µm)
 |
Stud (Inches) | ||
| D | FD | MIN L | |
| 2-56 | 0.156 | 0.250 | |
| 4-40 | 0.187 | 0.250 | |
| 6-32 | 0.218 | 0.250 | |
| 8-32 | 0.250 | 0.250 | |
| 10-32 | 0.255 | 0.250 | |
| 10-24 | 0.255 | 0.250 | |
| 1/4-20 | 0.325 | 0.375 | |
| 5/16-18 | 0.390 |
0.500 |
|
| 3/8-16 | 0.437 | 0.500 | |
|
Stud (Metric) | ||
| D | MAX FD | MIN L | |
| M3x0.5 | 5.3 | 6mm | |
| M4x0.7 | 6.3 | 6mm | |
| M5x0.8 | 7.3 | 6mm | |
| M6x1.0 | 8.3 | 10mm | |
| M8x1.25 | 10.8 | 10mm | |
| M10x1.5 | 11.9 | 16mm | |
| MATERIAL | MILD STEEL | STAINLESS STEEL | ALUMINUM | BRASS |
|---|---|---|---|---|
| C - 0.23% max. P - 0.04% max. Mn - 0.90% max. S - 0.05% max. |
AISI grade 302 standard 304/316 available upon request |
Alloy 1100 & 5000 Series Other alloys available upon request |
Alloy (lead free) 70 - 30 std. Other alloys available upon request |
|
| MECHANICAL PROPERTIES | Tensile- 60,000 psi (min.) Yield - 50,000 psi (min.) |
Tensile - 85,000 psi (min.) Yield - 40,000 psi (min.) |
Values for various alloys available upon request | Tensile - 70,000 psi (min.) Yield - 50,000 psi (min.) |
| PLATING | Copper plating is standard | Does not apply to Stainless | ||
| ANNEALING | Studs are annealed where required | Studs are annealed where required | ||

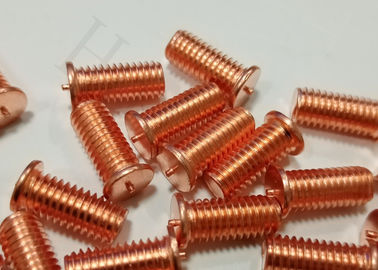

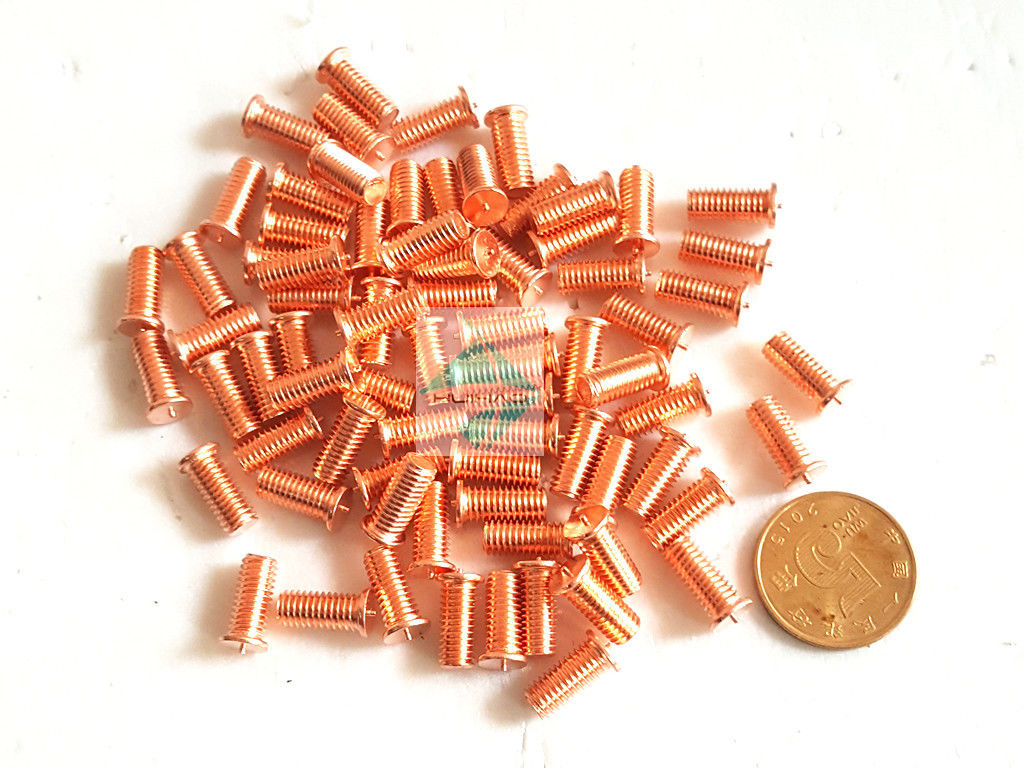

1. M5x12 Copper Plated Mild Seel Flanged Capacitor Discharge (CD) Weld Studs

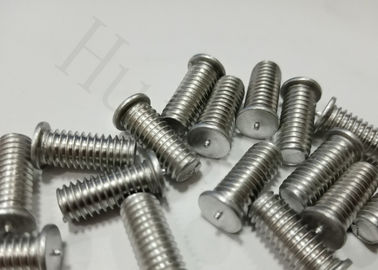

2. M6x15 Aluminum Flanged Capacitor Discharge (CD) Weld Studs

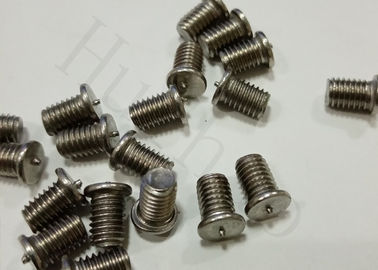

3. M5x8 Stainless Steel 304 Flanged Capacitor Discharge (CD) Weld Studs
Packing:
50pcs per cases,
6 small cases in a box,
48 boxes on a pallet.
Delivery:
Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
