Product Details:
|
| Name: | Insulation Weld Pins Welder Machine | Voltage: | Single Phase AC110/220V |
|---|---|---|---|
| Rated Duty Cycle: | 32% | Current: | 10-160A |
| Weight: | 18kgs | Size: | 410x245x290mm (LxWxH) |
| High Light: | copper plated insulation pins,cd weld pins |
||
We can be your country standard to custome the power,we accept small order an supply door to door services

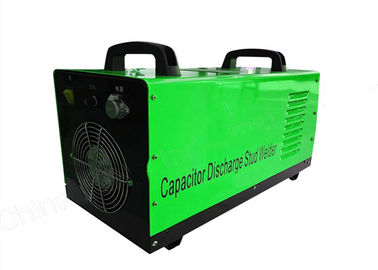

Insulation Weld Pins Welder Machine For Insulation Welding Construction
The main circuit of the third generation optimized design controls the welding process, the work is stable, the charging time is short, the welding
efficiency is high, and the perfect protection circuit is provided to ensure the safety of the operators and equipment and the welding quality is high.
The charging voltage is continuously adjustable and the welding parameters can be preset to the optimum state.

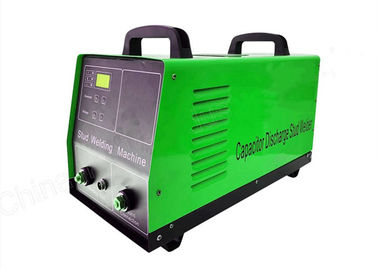

Insulation Weld Pins Welder Machine For Insulation Welding Construction
|
Parameter
|
Insulation Weld Pins Welder Machine/ Insulation Pin Welding Machine
|
|
|
Model
|
SB-1250
|
|
|
Stud Range
|
Φ1-5mm
|
|
|
Timing Control
|
3s
|
|
|
Duty Cycle (Stud Qty./Stud Dia./Per Minute)
|
20pcs/5mm/min
|
|
|
32pcs/2mm/min
|
||
|
Applied Patent
|
Invention patent CD STUD MACHINE
|
|
|
Allowable Input Voltage Fluctuation
|
±10%
|
|
|
Standard Supply Scope
|
1. Machine (1pc) 2. Stud gun with cable (1pc) 3. Extended gun cable (1pc) 4. Earth clamp with earth lead (1pc) 5. Crescent spanner (1pc)
|
|
|
Max. Length of Extended Welding Cable
|
20M
|
|
|
Max. Length of Extended Earth Lead
|
5M
|
|
|
Protection Class
|
IP21
|
|
|
Machine Weight
|
18KG
|
|
|
Standard Gun (Heavy Duty)
|
SRQ4
|
|

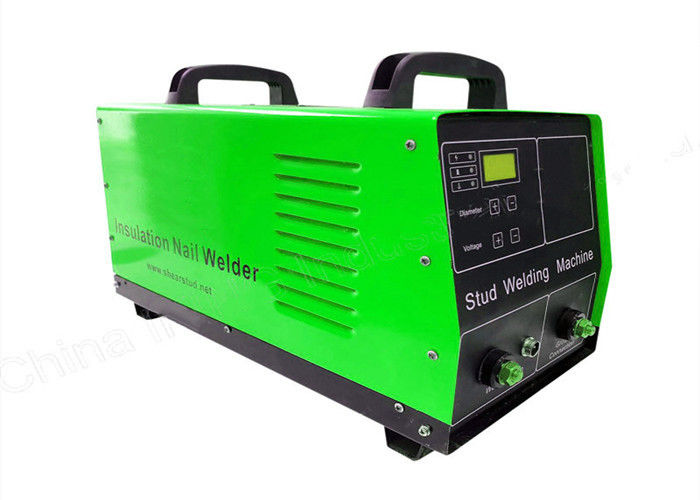

Insulation Weld Pins Welder Machine For Insulation Welding Construction
|
Accessories Item
|
Specification
|
Total Quantity
|
|
Anti-spatter Stud gun with cable
|
SRQ4
|
1 Set
|
|
Extended gun cable
|
8M
|
1Pcs
|
|
Earth clamp with earth lead
|
N/A
|
1Pcs
|
|
Crescent Spanner
|
N/A
|
1Pcs
|
|
Enclosed Documents
|
N/A
|
1Set
|
