Cup Head Pins For Duro-dyne Auto Feed Resistance Welding Equipment

Description Of Cup Head Pins For Duro-dyne Auto Feed resistance Welding Equipment:

Cup head weld pins are used to fasten insulation materials onto duct work or other steel surfaces. The cup head pins are welded to the metal after they pierce through the insulation and make contact with the surface. A capacity discharge stud welding machine (CD) is necessary foruse with these pins.

Drawing	D	WD	Min L
	2.7mm, 3.0mm, 3.4mm etc.	25mm, 30mm etc.	25-300mm

Pin Material: Low carbon steel

Pin Surface Finish: galvanized is standard, copper plating is available upon special request.
Base Material: Low carbon steel

Base Surface Finish: galvanized is standard

Base Edge: Base edge is beveled to prevent cutting of insulation material. Flat washer style also standard.

                    Both styles auto-feed quality.

Application: This cup head pin is for use with Duro-Dyne auto feed resistance welding equipment.

If you are in need of cup head weld pins for duct insulation work, please feel free to ask me a price or sample, our cup head weld pins are with good quality, any my email address is cherry@huihaomesh.com

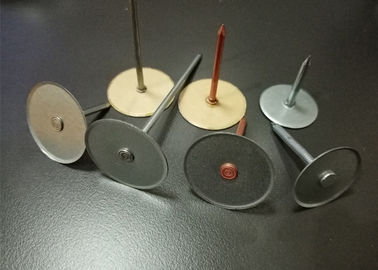

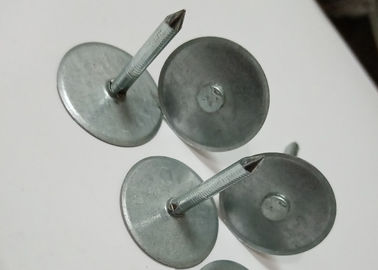

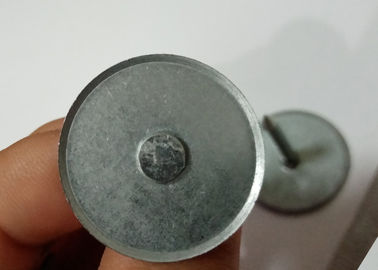

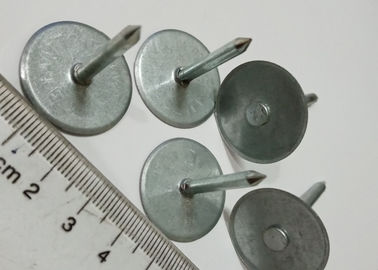

Detailed Image Of Cup Head Pins For Duro-dyne Auto Feed resistance Welding Equipment:

Application Of Cup Head Pins For Duro-dyne Auto Feed resistance Welding Equipment:

1. Cupped Head Insulation Pins simplify the permanent installation of "Duct Liner" or other insulation materials by securing this insulation to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings. 2. They are made up of a weld pin and a staked on retaining washer. This product is usually applied with a capacitor discharge stud welder. 3. Cup Head Pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

Related Products Of Cup Head Pins For Duro-dyne Auto Feed resistance Welding Equipment:

	Item: Self Adhesive Insulation Hangers Material: galvanized steel or stainless steel or aluminum Base: 50x50mm Pin Dia: 2.7mm is standard Pin Length: As your requirement
	Item: Perforated Insulation Hangers Material: galvanized steel or stainless steel or aluminum Base: 50x50mm Pin Dia: 2.7mm is standard Pin Length: As your requirement

Package Of Cup Head Pins For Duro-dyne Auto Feed resistance Welding Equipment:

1. 1000pcs per carton, 2000 pcs per carton, 3000 pcs per carton according to the length

2. 48 cartons per pallet

3. to be your requirements
