3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads

3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads
3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads 3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads 3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads 3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads

Large Image :  3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Bi-metallic pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Plastic bags+cartons
Delivery Time: 7 work days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 50000pcs per day

3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads

Description
Product Name: Bi-metallic Pins Material Of The Shaft: Carbon Steel Or Stainless Steel
Shaft Dia: 3mm Or 4mm, Etc Head Material: Aluminum
Head Size: 6*15mm In Common Total Length: 25mm-300mm
Highlight:

cd weld pins

,

threaded stud welder

3mm X 65mm Stud Welding Pins Bi-Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads
Product Specifications
Attribute Value
Product name Bi-metallic pins
Material of the shaft Carbon steel or stainless steel
Shaft diameter 3mm or 4mm, etc
Head material Aluminum
Head size 6*15mm in common
Total length 25mm-300mm
Product Description

3mm X 65mm Bi-metallic Pins with 6 X 15 mm Aluminum Insulated Heads. The studs and raw material specifications mentioned conform with EN ISO 13918 and EN ISO 14555.

Huihao company as a manufacturer offers not only standard Weld Studs, but also special design studs and pins. If you don't find the specific information you're looking for, please contact us.

Detailed Specifications
Material Pin Diameter Insulated Head Size Total length
Pin is Stainless Steel 304/316, copper/zinc plated steel; Base is Aluminum 10 Ga, 0.135 (3.4mm) 6mm*15mm 25mm-300mm
Product Images

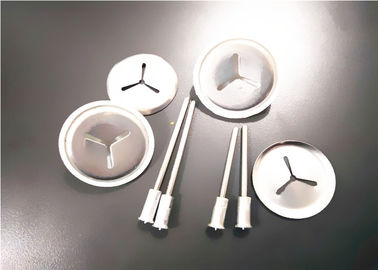

3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads 0
Washers for Bi-metallic Pins

Round self locking washers (also named self clips) are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place. The round washer features three petals in center created by stamped technique.

Common material is stainless steel 304/316. Special material is available for customized orders.

Material Shape Diameter Pin Diameter Thickness Package
SS304/316, Galvanized Steel Round 38mm 10Ga, 12Ga, 14Ga 0.4mm 2000pcs/carton
Other sizes also available for custom orders.
Safety Washer Option
SS clips with plastic cap for enhanced safety:

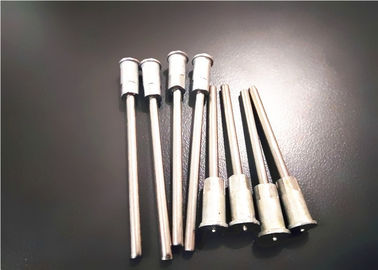

3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads 1
Packaging & Delivery

Packaging: 500 or 1000 units per plastic bag, then packed into cartons. Custom packaging available upon request.

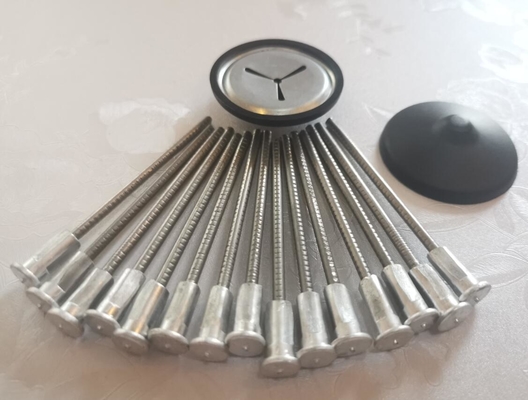

3mm X 65mm Stud Welding Pins Bi- Metallic Pins With 6 X 15 Mm Aluminum Insulated Heads 2

Delivery methods:

  • Samples or small orders: DHL/EMS/UPS/TNT/EXPRESS
  • Large orders: Recommended by sea, or by air for urgent requirements
