Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building Rock Wool

Large Image : Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building Rock Wool

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO
Model Number:	Stud Welding Insulation Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable

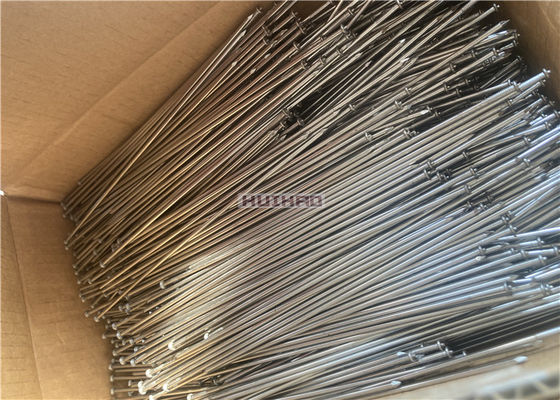

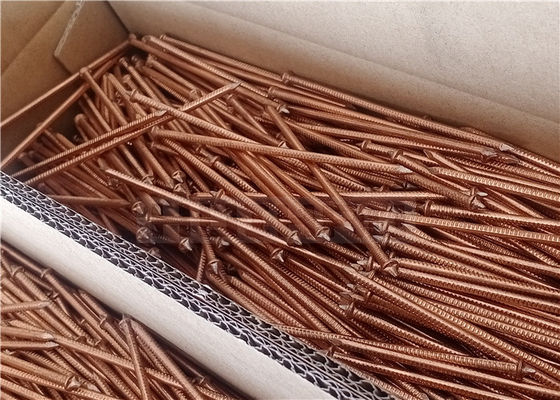

Packaging Details:	1.500pcs per bags, 10 bags per carton, if the length too long, we will be according your requirements to pack.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	500000pcs per 20 days

Contact Now

Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building Rock Wool

Description

Product Name:	Stud Welding Insulation Pins	Pin Thickness:	1-5mm
Material:	Mild Steel (stainless Steel Or Aluminum Still Available)	Length:	10-475mm
Surface:	Copper Plated Or Galvanized Or Polished	Washer Type:	Round Or Square Or Capped
Highlight:	mild steel copper plated insulation pins , ship building copper plated insulation pins , rock wool stud welding insulation pins

Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building Rock Wool

Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building:

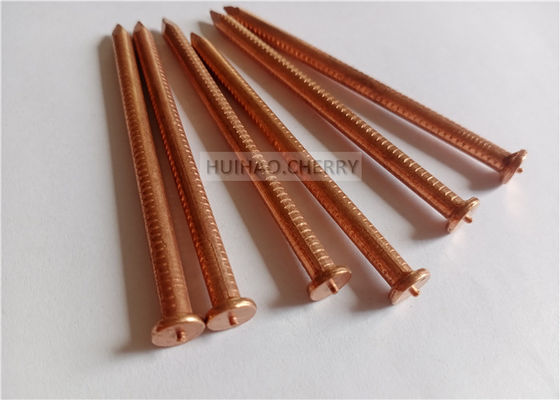

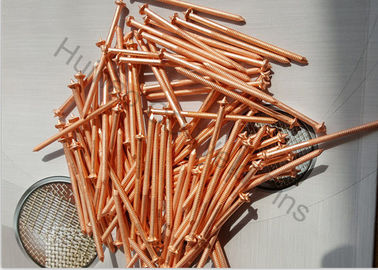

Stud Welding Insulation Pins are are used with pin welding or stud welding equipment to secure fiberglass, rockwool etc. insulation materials onto various metals for ship building industry. Stud Welding Insulation Pins could be mild steel material, stainless steel material, or aluminum, among which, Copper Plated Mild Steel Stud Welding Insulation Pins are very popular.

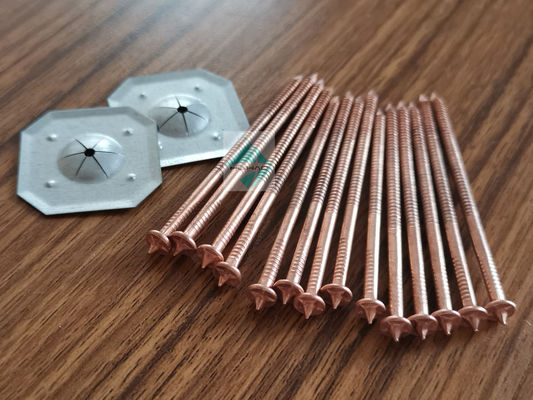

Stud Welding Insulation Pins are used in combination with self locking washers (or "speed clips") to secure insulating materials. HUIHAO's Stud Welding Insulation Pins choose good quality raw materials, anti-corrosion, and easy to be welded on metal surface, and HUIHAO's self locking washers are with enough hardness to firmly and quickly lock insulation pins.

Huihao Hardware Mesh Product Limited is a professional manufacture of insulation pins and washers, our insulaiton pins and washers are widely used for industrial insulation, commercial insulation, and marine insulation etc. in many countries. If you are in need of insulation pins or washers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Thank you for your time, and hope you have a nice day.

Product Description Of Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building:

Product name	Stud Welding Insulation Pins
Pin thickness	1-5mm
Material	Mild steel
Surface	Copper plated
Type	Soft steel nails
Length	10mm-475mm
Washer type	Round Self Locking Washers, Square Self Locking Washers, Capped Self Locking Washers

Stud Welding Insulation Pins Specifications:

Capacitor Discharge Stud Welding Insulation Pins simplify the permanent attachment of insulation to just about any kind of construction metal surface.
Stud Welding Insulation Pins can be applied quickly and easily using standard CD or Arc stud welding equipment.
Stud Welding Insulation Pins are available in different styles to cover a wide variety of applications.
Self Locking Washers are available in different styles: round, square or capped.

Item	Material	Diameter	Length
Stud Welding Insulation Pins	Mild Steel, Stainless Steel, Aluminum	1-5mm	10-475mm
Stud Welding Insulation Pins	Mild Steel, Stainless Steel, Aluminum	1-5mm	10-475mm
Stud Welding Insulation Pins	Mild Steel, Stainless Steel, Aluminum	1-5mm	10-475mm
Stud Welding Insulation Pins	Mild Steel, Stainless Steel, Aluminum	1-5mm	10-475mm

Mild Steel Copper Plated Stud Welding Insulation Pins For Ship Building Rock Wool 2

Material Technical Data Of Stud Welding Insulation Pins:

MATERIAL	LOW CARBON STEEL	STAINLESS STEEL	ALUMINUM
Composition	C - 0.23% max Mn - 0.90% max.	P - 0.04% max. S - 0.05% max	Alloy - 1100-H14 standard. Other alloys available upon request.
MECHANICAL PROPERTIES	Tensile - 60,000 psi (min) Yield - 50,000 psi (min.) Elongation - 20% (in two inches)	Values for various grades available upon request.	Values for various alloys available upon request.
PLATING	Copper coating is standard on pins. Copper and other platings available upon customer request.	Does not apply to stainless.
ANNEALING	Pins are annealed where required	Does not apply

Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
Nail point is standard - available with "blunt end" as special order.

Stud Welding Systems:

The standard, portable Stud Welding System consists of:

A Controller [or Power Unit] which is plugged into the two-hundred-and-twenty-volt outlet.
A CD Gun with Cables is used to command the power unit and deliver weld current, with the Gun also serving as the Pin holder to properly place the pin during welding.
Then, on the other side of "the circuit" a ground cable and clamping connection is attached to the work-surface to complete our Capacitor Discharge connections.
And finally, special Accessories are used to hold the Pin in the Gun.
