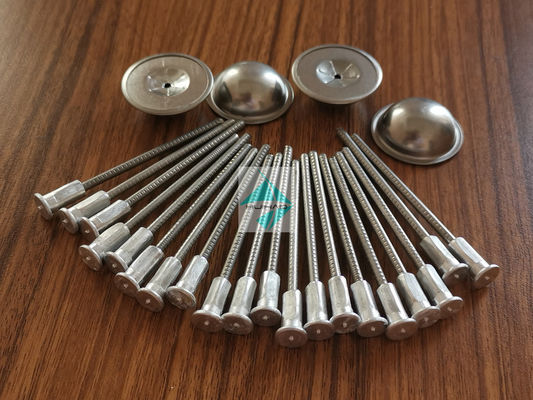

3mm BIMetallic Insulation Pins with Aluminum Weld Base Fix Self Locking Washers
BIMetallic Insulation PinsThe studs and raw material specifications mentioned conform with EN ISO 13918 and EN ISO 14555.
As a manufacturer, we are able to offering not only standard Weld Studs, but also special design studs and pins. If you do not find the specific information you are looking for, please contact us.
Other materials are available on request.
Self-Locking washers (clips) are available in a variety of sizes, shapes and materials.

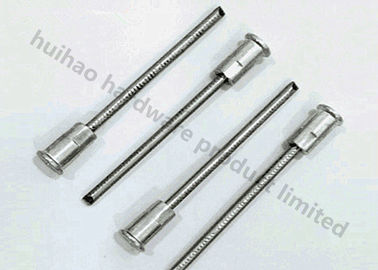

BIMetallic Insulation Pins specification
| 10 Ga. Bi-Metallic Pins |
| Material |
Pin Diameter |
Pin...Stainless Steel
Base...Aluminum |
10 Ga, 0.135" (3.4mm) |
| Length |
Part Number |
| 1.1/2" |
2372-1048 |
| 2.0" |
2372-1064 |
| 2.1/2" |
2372-1080 |
| 3.0" |
2372-1096 |
| 3.1/2" |
2372-10112 |
| 4.0" |
2372-10128 |
| 4.1/2" |
2372-10144 |
| 5.0" |
2372-10160 |
| 6.0" |
2372-10192 |
| Annular Groove (Navy) Bi-Metallic Pins |
| Material |
Pin Diameter |
Pin...stainless steel
Base...aluminum |
Annular Groove
0.175 - 0.180" (4.4 - 4.6mm) |
| Length |
Part Number |
| 7/8" |
2382-0628 |
| 1.0" |
2382-0632 |
| 1.7/8" |
2382-0660 |
| 2.7/8" |
2382-0692 |
| 3.7/8" |
2382-06124
|
BIMetallic Insulation Pins drawing as follows:

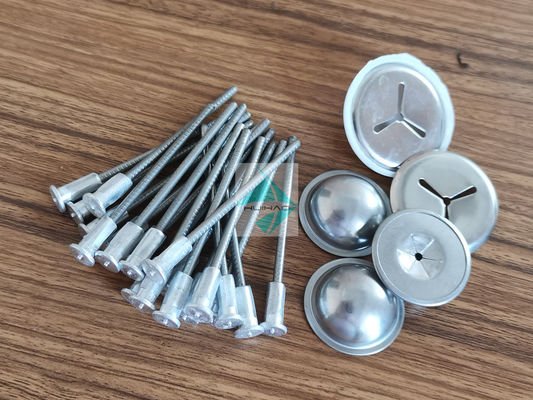

self locking washer for BIMetallic Insulation Pins
Specification Of The Dome Cap Washers
Material: Stainless Steel AISI 304
With Stainless Steel Insert
| B |
A |
C |
| 14 Ga (2mm) |
7/8" (22mm) |
9/32" (7.2mm) |
| 12 Ga (2.7mm) |
7/8" (22mm) |
9/32" (7.2mm) |
| 10 Ga |
7/8" (22mm) |
9/32" (7.2mm) |
| 3mm |
7/8" (22mm) |
9/32" (7.2mm) |

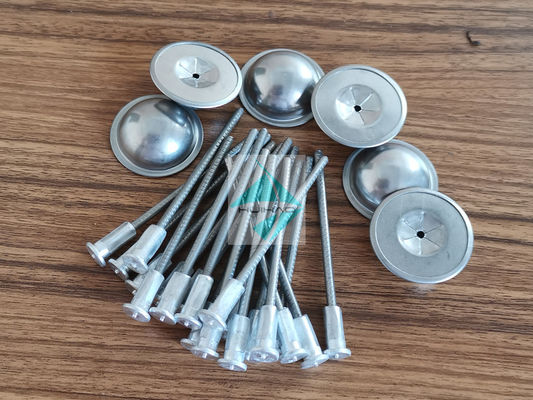

Detailed Pictures Of The Dome Cap Washers
Dome cap washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating blankets or pads. The caps are used to cover the nail point on weld pins, hangers, lacing anchors & quilt pins.
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
Specification
Material: stainless steel or galvanized steel or aluminum
Size: 1" or 1-3/16" or 1-1/2" or 2"
Thickness: 28ga (0.4mm)
| Diameter: |
1" |
1-3/16″ |
1-1/2” |
| Thickness: |
0.015" |
0.015" |
0.015" |
| Plating: |
Galvanized |
Galvanized |
Galvanized |
| Material: |
Mild Steel /SS 304 |
Mild Steel /SS 304 |
Mild Steel /SS 304 |
| Edge: |
Beveled or Flat |
Beveled or Flat |
Beveled or Flat |
Other material / plating combinations and hole sizes are available by special order
Square Self Locking Washers
Material: stainless steel or galvanized steel or aluminum
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Pin Diameter |
2-1/2" |
1-1/2" |
1-1/4" |
1-1/2" |
| 14 Ga (2mm) |
square |
square |
square |
round |
| 12 Ga |
square |
square |
square |
round |
| 10 Ga |
square |
square |
square |
round |
| 3mm |
square |
square |
square |
round |
