Product Details:
|
| Material: | Q195/Q235/1045/A36/S45C | Length: | 3/4"-4" |
|---|---|---|---|
| Shank Diameter: | 3mm | Head Diameter: | 6mm |
| Highlight: | cd weld pins,threaded stud welder |
||
BIMetallic stud welding Pins,The studs and raw material specifications mentioned conform with EN ISO 13918 and EN ISO 14555.
Huihao company As a manufacturer, we are offering not only standard Weld Studs, but also special design studs and pins. If you do not find the specific
information you are looking for, please contact us. whats app (+86-13363891298); skype (eastgzj); e-mail (admin@huihaomesh.com)
1. specification of BIMetallic stud welding pins
|
10 Ga. Bi-Metallic Pins specification |
|
|
Material |
Pin Diameter |
|
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum |
10 Ga, 0.135 (3.4mm) |
|
length of Bi-Metallic Pins |
package details |
|
1.1/2" |
1000pcs per bag/3bags per carton |
|
2.0 |
1000pcs per bag/3bags per carton |
|
2.1/2 |
1000pcs per bag/2bags per carton |
|
3.0" |
1000pcs per bag/2bags per carton |
|
3.1/2 |
1000pcs per bag/2bags per carton |
|
4" |
1000pcs per bag/2bags per carton |
|
4.1/2" |
1000pcs per bag/2bags per carton |
|
5" |
500pcs per bag/3bags per carton |
|
6" |
500pcs per bag/3bags per carton |
|
Annular Groove (Navy) Bi-Metallic Pins specification |
|
|
Material |
Pin Diameter |
|
Pin is stainless steel, Base is aluminum |
Annular Groove 0.175 - 0.180" (4.4 - 4.6mm) |
|
Length of Bi-Metallic Pins |
packages details |
|
7/8" |
1000pcs per bag/5bags per carton |
|
1.0" |
1000pcs per bag/5bags per carton |
|
1.7/8" |
1000pcs per bag/3bags per carton |
|
2.7/8" |
1000pcs per bag/3bags per carton |
|
3.7/8" |
1000pcs per bag/2bags per carton |

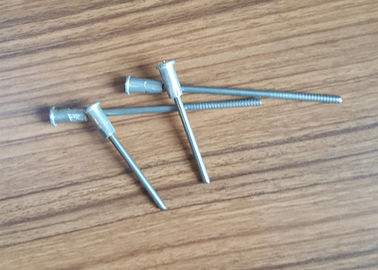

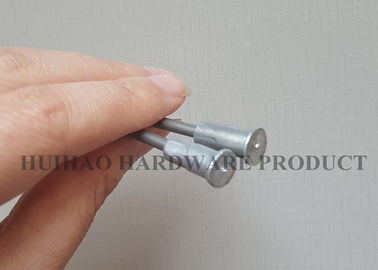

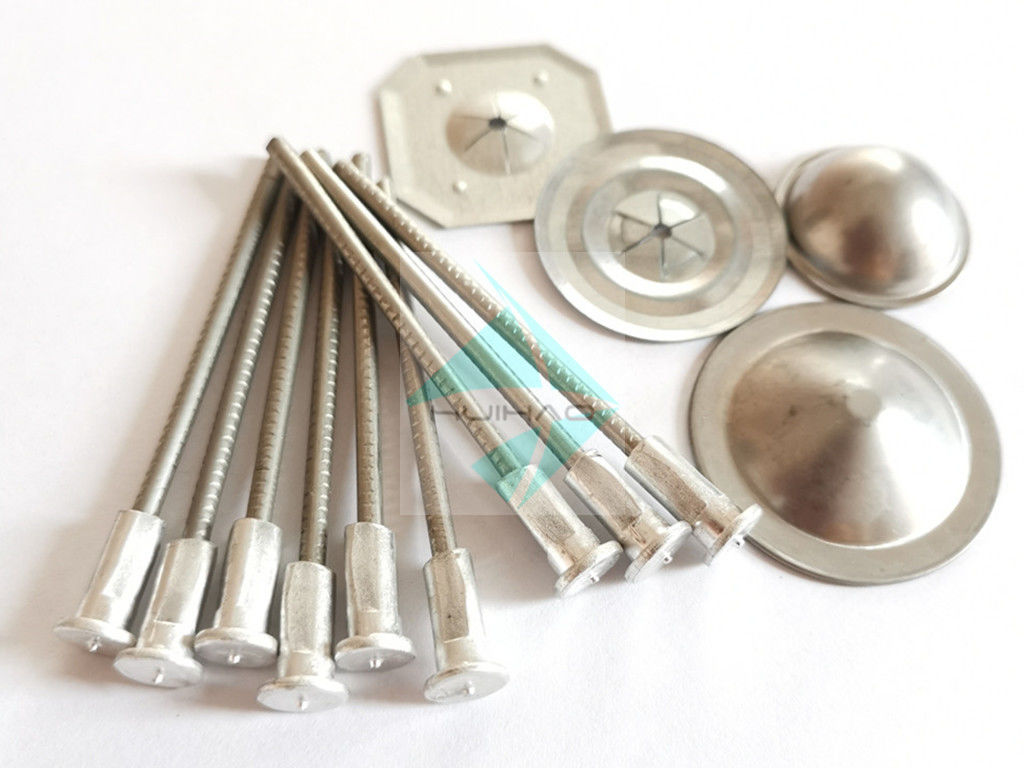

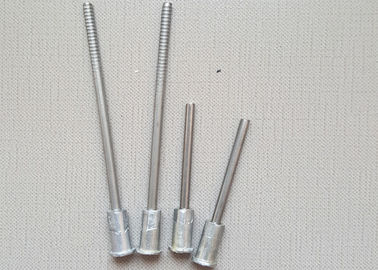

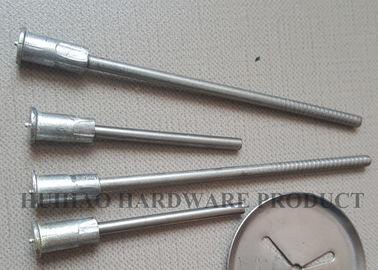

2. images of BIMetallic stud welding pins
3.Parts - self locking washers
Round self locking washers is also named self clips. it is used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place.
the round washer is with three petals in center by stamped technical. common material is stainless steel 304/316. special material is for coustomzed orders.
|
Material
|
Shape
|
Diameter
|
Pin Diameter
|
Thickness
|
Package
|
|
SS304/316,Galvanized Steel
|
Round
|
38mm
|
10Ga, 12Ga, 14Ga
|
0.4mm
|
5000pcs/carton
|
|
Other size also could be customed.
|
|||||
4.huihao company advantages
Insulation fixing pins,Self adhesive insulation pins, Insulation hangers, Insulation anchors, Lacing anchor, Lacing ring
Cup head weld pins, Perforated base pins,
Quilting pins&Duct liner pins, CD weld pins, Self locking washers & dome caps Insulation Impaling Clips, drive pins
ISO9001-2008 , SGS,BV, offical material certification, CE and accept thirty party test
we accept small order for common size in stock. min order quantity is 30000pcs for coustomzed sizes
supply free samples for common sizes.
supply Customs clearance documents, certificate of origin Form A, Form E, CO, FORM F, FORM R,FORM S, FORM M, FAT,FORM L, FK, CCPIT and SASO
goods with standard export carton and pallets by sea, by air or door to door service
