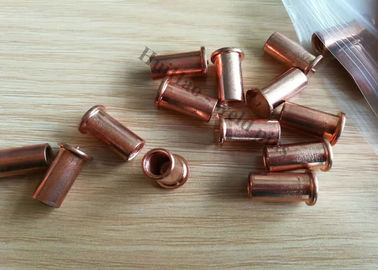

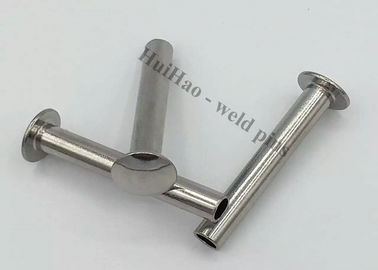

Flanged No Thread Stud Welding Pins 0.312" Length Used Drawn Arc Stud Welder

Large Image : Flanged No Thread Stud Welding Pins 0.312" Length Used Drawn Arc Stud Welder

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Model Number:	Stud Welding Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	No Thread Stud Welding Pins packing:50pcs per cases,6 small cases in a box 48 boxes on a pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union,PAYPAL
Supply Ability:	100000pcs per 20 days

Contact Now

Flanged No Thread Stud Welding Pins 0.312" Length Used Drawn Arc Stud Welder

Description

Material:

Mild Steel , Stainless Steel , Aluminum

Finished:

Copper Coating , Zinc Coat

Diameter:

0.115" - 0.375"

Length:

As Your Requirement

High Light:

copper plated insulation pins

threaded stud welder

Flanged No Thread Stud Welding Pins 0.312" length used Drawn Arc Stud Welder

>>> Introduction To The Stud Welding Pins

Flanged / No Thread

Diameter "D"	Flange* Diameter "FD"	Minimum Length "L"
.115	.187	.312
.125	.187	.312
.141	.218	.312
.156	.250	.312
.161	.250	.375
.187	.250	.500
.215	.312	.625
.250	.312	.625
.274	.375	.750
.312	.375	.750
.375	.437	.750

* Approximate values,Contact us if you have a special requirement.

Flanged No Thread Stud Welding Pins 0.312" Length Used Drawn Arc Stud Welder 0

	Low Carbon Steel	Stainless Steel
Material:	C1008-C1020 C-0.23% Max; P-0.04% Max Mn-0.90% Max; S-0.05% Max	18-8 302Hq/304/304L Standard
Mechanical Properties:	Min. Tensile Type A .....61,000 Psi (420 Mpa) Min. Yield Type A .....49,000 Psi (340 Mpa)	Other Grades Available Upon Request
Plating:	Copper Plating Is Standard	Plating Does Not Apply To Stainless Steel
Annealing:		Studs Are Annealed Where Required
Aluminum:	1100, 6061 And 5000 Series	Brass Alloy - Lead Free 70-30 In Standard

Stud welding pins are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
Stud welding pins are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
Standard material for stud welding pins are: copper plated steel, stainless steel, aluminum
The stud flange is designed according to EN ISO 13918.
Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)

Plating

Galvanized and Copper plating are available - Low Carbon Steel
Does not apply to Stainless - Stainless Steel

Annealing

Studs are annealed where required. - Low Carbon Steel / Stainless Steel

Advantages Of The Stud Welding Pins

Welding process becomes fast and time saving
Saves material as the component to which the studs are welded is not weakened by drilling
Plate thickness can be reduced
Saves labor increase design and production flexibility
Improved quality and wider choice of metals etc.

Usage Of The Stud Welding Pins
