Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625"

Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625"
Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625"
Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625"

Large Image :  Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625"

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO
Model Number: Stud Welder Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 50pcs per cases,6 small cases in a box 48 boxes on a pallet
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 100000pcs per 20 days

Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625"

Description
Material: Steel Or Stainless Steel Or Aluminum Finished: Copper Coating
Diameter: M3 To M10 Length: As Your Requirement
Product Name: Stud Weld Pins, Stud Welder Pins Standard: DIN
Grade: 4.8,A2-70 Factory: Anping Huihao
High Light:

copper plated insulation pins

,

threaded stud welder



Flanged Drawn Arc Stud Welder Pins with Imperial Thread or Metric Thread 0.625"



>>> Introduction To The Flanged Drawn Arc Stud Welder Pins

  • Threaded Stud Welder Pins are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.

  • Threaded Stud Welder Pins are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.

  • Standard material for Stud Welder Pins are: Copper Plated Steel, Stainless Steel, Aluminum

  • The stud flange is designed according to EN ISO 13918.

  • Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)

Stud Welder Pins Specification:



Material: Aluminum, Copper Plated Steel, Stainless Steel

M3

M4

M5

M6

M8

M10

M3×6mm

M4×6 mm

M5×6 mm

M6×8 mm

M8×10 mm

M10×15 mm

M3×8 mm

M4×8 mm

M5×8 mm

M6×10 mm

M8×12 mm

M10×20 mm

M3×10 mm

M4×10 mm

M5×10 mm

M6×12 mm

M8×15 mm

M10×25 mm

M3×12 mm

M4×12 mm

M5×12 mm

M6×15 mm

M8×18 mm

M10×30 mm

M3×15 mm

M4×15 mm

M5×15 mm

M6×16 mm

M8×20 mm

M10×35 mm

M3×16 mm

M4×16 mm

M5×16 mm

M6×18 mm

M8×22 mm

M10×40 mm

M3×18 mm

M4×18 mm

M5×18 mm

M6×20 mm

M8×25 mm

M10×45 mm

M3×20 mm

M4×20 mm

M5×20 mm

M6×22 mm

M8×30 mm

M10×50 mm

M3×22 mm

M4×22 mm

M5×22 mm

M6×25 mm

M8×35 mm



M3×25 mm

M4×25 mm

M5×25 mm

M6×30 mm

M8×40 mm



M3×30 mm

M4×30 mm

M5×30 mm

M6×35 mm

M8×45 mm



M3×35 mm

M4×35 mm

M5×35 mm

M6×40 mm

M8×50 mm



M3×40 mm

M4×40 mm

M5×40 mm

M6×45 mm





M3×45 mm

M4×45 mm

M5×45 mm

M6×50 mm





M3×50 mm

M4×50 mm

M5×50 mm









Stud Welder Pins​ Material





Low Carbon Steel

Stainless Steel

Material:

C1008-C1020
C-0.23% Max; P-0.04% Max
Mn-0.90% Max; S-0.05% Max

18-8
302Hq/304/304L Standard

Mechanical
Properties:

Min. Tensile Type A .....61,000 Psi (420 Mpa)
Min. Yield Type A .....49,000 Psi (340 Mpa)

Other Grades Available Upon Request

Plating:

Copper Plating Is Standard

Plating Does Not Apply To Stainless Steel

Annealing:



Studs Are Annealed Where Required

Aluminum:

1100, 6061 And 5000 Series

Brass
Alloy - Lead Free 70-30 In Standard

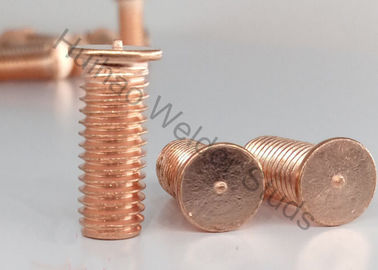

Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" 0

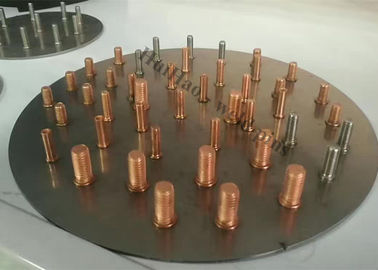

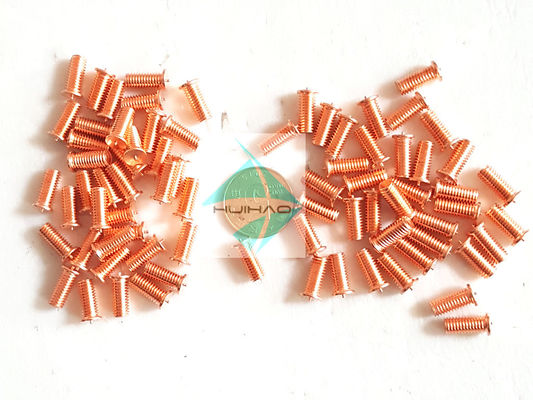

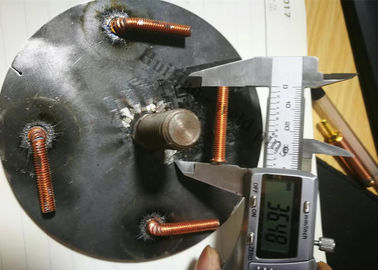

>>> Detailed Image Of The Threaded Stud Welder Pins



Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" 1Copper Plated Steel Flanged Drawn Arc Stud Welder Pins With Imperial Thread Or Metric Thread 0.625" 2



Stud Welder Pins Advantages

  • Welding process becomes fast and time saving
  • Saves material as the component to which the studs are welded is not weakened by drilling
  • Plate thickness can be reduced
  • Saves labor increase design and production flexibility
  • Improved quality and wider choice of metals etc.

Stud Welder Pins Used In

  • Automotive Industry
  • Construction Industry
  • Electronics Industry
  • Electrical Industry
  • Engineering Industry

>>>Stud Welder Pins Package



50pcs per cases,6 small cases in a box 48 boxes on a pallet



>>> Stud Welder Pins Delivery



Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
