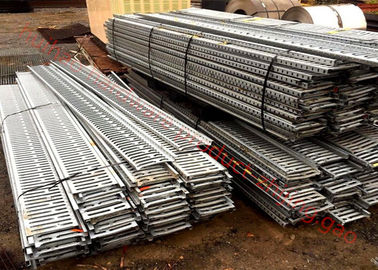

FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways

FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways
FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways

Large Image :  FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Grtp Strut Grating
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1.packing on a pallet and then wrapped with plastic film, 2.wrapped with plastic film then put into wodden cases 3.Packaging as the customer's request
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 1500000pcs per year

FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways

Description
Gauge: 14 Gauge, 18 Gauge Steel Or 16 Gauge (special) Finished: Mill Galvanized Before Fabrication
Flange Option: FM (female/male), MM (male/male), Or FF (female/female) Height: 30 Mm / 40 Mm / 50 Mm / 75 Mm.
Width: 150 Mm / 200 Mm / 250 Mm / 300 Mm. Name: Safety Grip Strut Grating
High Light:

aluminum safety grating

,

aluminum plank grating





FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways



what is Lock Interlocking Safety Grip Strut Grating?

____________________________________________________________________



Lock Interlocking Safety Grip Strut Grating is also named safety grating, it is made of steel plated, galvanized steel plate,

stainless steel plate and hard aluminum alloy plate by CNC machines with mould.



Because the surface is composed of serrated holes, it has a good anti-slip effect. At the same time, because of its beautiful

hole shape and light weight, it is widely used in the field of decoration. Gradually replacing the tradition steel bar grating.



Specification Of Lock Interlocking Safety Grip Strut Grating

______________________________________________________________________________



Maximum lengths of safety grating

  • steel: 6,000 mm.
  • 304 or 316 stainless steel: 2,000 mm.
  • Aluminium: 6,000 mm.
FM and MM Types Lock Interlocking Perforated Grtp Strut Grating Used Commercial Area
Material Thickness (mm) Length (mm) Width (mm) Height (mm)
In mild steel, hot-dip galvanized or coated 2, 2.5, 3 Max.6000 200, 250, 300, 350, 400 30, 40, 50, 75
galvanized 2, 2.5, 3 Max.6000 200, 250, 300, 350, 400 30, 40, 50, 75
aluminum 2.5, 3 Max.6000 200, 250 30, 40, 50, 75
304/316 stainless steel 2, 2.5, 3 Max.6000 200, 250, 300, 350, 400 30, 40, 50, 75



Stable diamond/cone
Material Thickness Length Width Height
Mild steel 2.0mm 2.5mm 3.0mm 6000mm 120mm-300mm 40mm, 50mm, 75mm
galvanized 2.0mm, 2.5mm, 3.0mm
Stainless steel 2.0mm, 2.5mm, 3.0mm
Aluminum 5754 2.0mm, 2.5mm, 3.0mm



Drawing of  Lock Interlocking Safety Grip Strut Grating

________________________________________________________________________



FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways 0

FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways 1



Application of  Lock Interlocking Safety Grip Strut Grating

__________________________________________________________________________



Lock Interlocking Safety Grip Strut Grating is an easy-to-install system of interlocking grating planks, treads and accessories

that provides safe, sturdy footing for mezzanine floors, platforms, walkways and other applications where non-slip performance

is required. Lock Interlocking Safety Grip Strut Grating is include three types:FM, FF and MM type (see the below drawing as follows).

the installation accessoties include side kick-plate, end kick-plate,hold down clamp,kick clip plate, J bolt, tap screw and hex head

screw. our satefy grating is Easy to install, easy to remove and replace if damaged.



FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways 2





FM Type Lock Interlocking Safety Grip Strut Grating For Platforms And Walkways 3



Huihao Lock Interlocking Safety Grip Strut Grating advantages

___________________________________________________________________________



1.production time guarantee: Huihao has advanced CNC punching equipment, automatic bending machine and welding

equipment to ensure efficient work rate. Experienced production team capable of solving various technical problems



2.Quality Assurance: First, 9000 certification, official material certification, sgs product testing certification. Second, we

provide drawing confirmation for each order, and third, the error complies with international implementation standards.



3. Service Guarantee: First, we accept small orders, second, sales team, no language barriers. Third, accept OEM, ODM. Four,

24-hour service hotline 0086-13363891298 (same as whatsapp) or email admin@huihaomesh.com



4.Packing freight guarantee: First, the standard export tray, easy to load and unload. Second, accept shipping, air and express delivery



5.If you are a brand reseller, we will provide an installation guide, selection data tape and load tape
