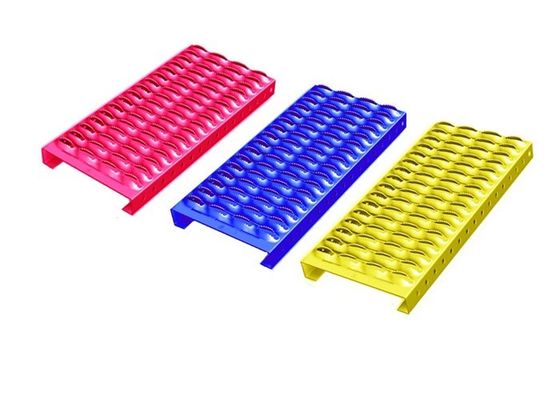

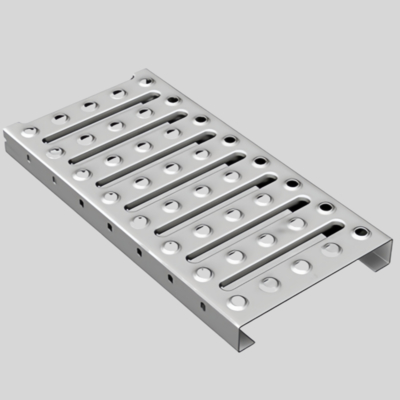

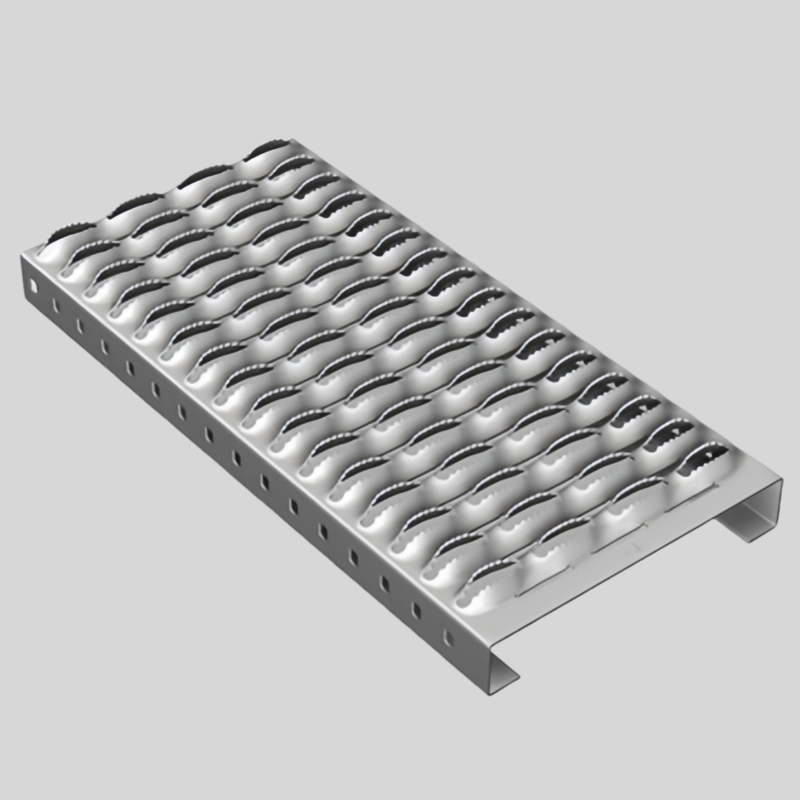

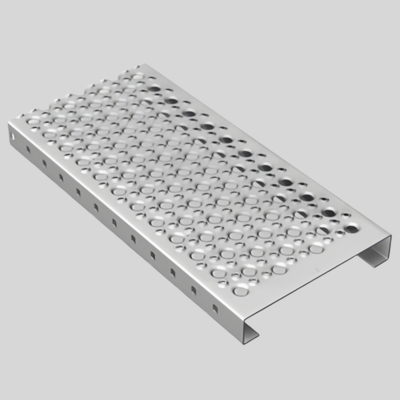

Perforated Aluminum Architectural Mesh Panels For Grip Strut Grating Platforms

Large Image : Perforated Aluminum Architectural Mesh Panels For Grip Strut Grating Platforms

Product Details:

Place of Origin:	China
Brand Name:	huihaoKASITE
Certification:	ISO9001-2015
Model Number:	HH- Platforms

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	USD28/PC
Packaging Details:	pallet or case
Delivery Time:	7 work days
Payment Terms:	L/C,T/T
Supply Ability:	3000 pcs per month

Contact Now

Perforated Aluminum Architectural Mesh Panels For Grip Strut Grating Platforms

Description

Name:	Perforated Aluminum Architectural Mesh Panels	Material:	Aluminum Alloy, GS, SS
Thickness:	2mm, 2.5mm, 3mm	Height:	50mm, 75mm, 100mm
Aperture:	75mmx30mm	Width:	300mm-800mm
Length:	Less Than 6000mm	Color:	Support
Highlight:	grip strut grating platforms , aluminum alloy grip strut grating , 50mm Grip Strut Grating

Perforated Aluminum Architectural Mesh Panels for Grip Strut Grating Platforms

Product Specifications

Material: Aluminum Alloy, GS, SS

Thickness: 2mm, 2.5mm, 3mm

Height: 50mm, 75mm, 100mm

Aperture: 75mm × 30mm

Width: 300mm-800mm

Length: Up to 6000mm

Grip Strut Safety Grating Platforms provide durable, rust-resistant solutions with various material options. Standard mill-galvanized finish resists corrosion for long-lasting surfaces. Available in high-strength aluminum and Types 304/316L stainless steel for maximum corrosion resistance. Black unpainted steel is available for installations requiring hot-dipped galvanized finish after fabrication.

Material Options

Pre-galvanized carbon steel
HRPO carbon steel
5052-H32 mill finish aluminum
Stainless steel 304 or 316

Applications

Ideal for working platforms, catwalks, walkways, stair treads, floors, and mezzanines.

Design & Specifications

Standard Specifications

Diamond Pattern	Width	Channel Depth	Galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9 Ga.	12 Ga. (.080), 10 Ga. (.100)
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9 Ga.	12 Ga. (.080), 10 Ga. (.100)
5 Diamonds	23-1/4"	2"	11 Ga., 10 Ga., 9 Ga.	12 Ga. (.080), 10 Ga. (.100)
6 Diamonds	27-3/4"	2"	11 Ga., 10 Ga., 9 Ga.	12 Ga. (.080), 10 Ga. (.100)
8 Diamonds	36"	1-1/2"	11 Ga., 10 Ga., 9 Ga.	12 Ga. (.080), 10 Ga. (.100)

Weight Specifications (per meter)

Material	Stainless Steel			Galvanized Steel			Aluminum Alloy 5754
Height	50mm	75mm	100mm	50mm	75mm	100mm	50mm	75mm	100mm
300mm	6.2kg	7.0kg	7.8kg	7.7kg	8.7kg	9.7kg	3.1kg	3.6kg	4kg
400mm	7.6kg	8.4kg	9.2kg	9.4kg	10.4kg	11.4kg	3.8kg	4.2kg	4.7kg
500mm	8.9kg	9.7kg	10.5kg	11kg	12kg	13kg	4.5kg	4.9kg	5.3kg
600mm	10.3kg	11.1kg	11.9kg	12.7kg	13.7kg	14.7kg	5.2kg	5.6kg	6.0kg
700mm	11.6kg	12.4kg	13.2kg	14.4kg	15.4kg	16.4kg	5.9kg	6.3kg	6.7kg
800mm	12.9kg	13.7kg	14.5kg	16.1kg	17.1kg	18.1kg	6.6kg	7.0kg	7.4kg

Installation Details

Clamp system prevents grating from shifting on supports and holds pieces together with or without clearance between panels. All bolts are positioned below the top surface of grating, with no need to drill holes in supporting members. Assembly includes anchor plate, 2 J-bolts, nuts and washers, all electro zinc plated. Standard finish is hot-dipped galvanized before fabrication.
