Galvanized Safety Grating Plank 182-356mm Width Industrial Flooring

Large Image : Galvanized Safety Grating Plank 182-356mm Width Industrial Flooring

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKASITE
Certification:	ISO9001-2015
Model Number:	HH-O

Payment & Shipping Terms:

Minimum Order Quantity:	30 pieces
Price:	USD32/PC
Packaging Details:	pallet or case
Delivery Time:	7 work days
Payment Terms:	L/C,T/T
Supply Ability:	2700pcs per month

Contact Now

Galvanized Safety Grating Plank 182-356mm Width Industrial Flooring

Description

Name:	Galvanized Safety Grating Plank	Length:	Less Than 6000mm
Width:	182mm-356mm	Height:	30mm, 50mm, 75mm
Naterial Thickness:	2mm, 2.5mm, 3mm	Material:	Alu Alloy, GS, SS
Surface Treatment:	Colored Finished	Custom:	EDGE DEISGN, FIXING DESIGN
Highlight:	anti skid Grip Strut Grating , industrial flooring Grip Strut Grating , 182mm Grip Strut Grating

Galvanized Safety Grating Plank For Industrial Flooring

Product Specifications

Attribute	Value
Name	Galvanized Safety Grating Plank
Length	Less than 6000mm
Width	182mm-356mm
Height	30mm, 50mm, 75mm
Material Thickness	2mm, 2.5mm, 3mm
Material	Aluminum Alloy, Galvanized Steel, Stainless Steel
Surface Treatment	Colored Finished
Custom Options	Edge Design, Fixing Design

Product Description

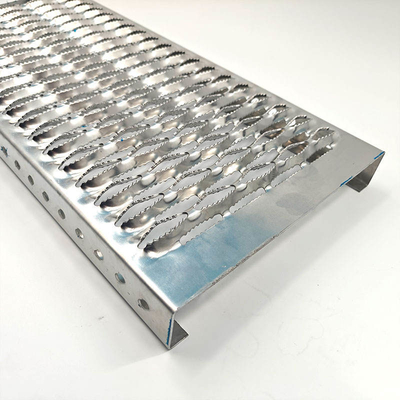

Anti Skid Metal Grip Strut Safety Grating Planks feature large debossed holes surrounded by smaller embossed traction buttons, providing superior slip resistance under all conditions and in every direction.

Material Specifications

Material	Thickness	Standard Width	Max Length	Standard Height
Galvanized Steel	2.0mm, 2.5mm	182mm-356mm	6000mm	30mm, 50mm, 75mm
Stainless Steel	2.0mm	182mm-356mm	6000mm	30mm, 50mm, 75mm
Aluminum Alloy	2.0mm, 2.5mm, 3mm	182mm-356mm	6000mm	30mm, 50mm, 75mm

Technical Drawing

Detailed Specifications

Catalog	Width (inches)	Material	Span (inches)	Depth (inches)
SST-5 SST-7 SST-10 SST-12	5", 7", 10", 12"	13 gauge steel	Up to 30	1-1/2"
		11 gauge steel	31-48	2"
		0.125 Aluminum	Up to 42	2"

Weight Details

Material	Thickness	Weight per Meter (kg)
Stainless Steel/Galvanized Steel	2mm	3.9kg (30mm)	4.6kg (50mm)	5.4kg (75mm)
Stainless Steel/Galvanized Steel	2.5mm	4.9kg (30mm)	5.7kg (50mm)	6.7kg (75mm)
Aluminum Alloy	3mm	2.0kg (30mm)	2.4kg (50mm)	2.8kg (75mm)

Applications

Anti Skid Metal Grip Strut Safety Grating Planks are manufactured with welded end carrier plates using the same materials as the plank. Available in standard versions and versions with nosing for enhanced slip resistance, these planks are ideal for industrial applications requiring superior safety and durability.
