Aluminum Perforated Anti -Slip Grip Strut Walkway 3 Diamond 2" Channel Depth

Large Image : Aluminum Perforated Anti -Slip Grip Strut Walkway 3 Diamond 2" Channel Depth

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO9001-2008
Model Number:	Grip Strut walkway

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	wrapped with plastic film then put into wodden cases ;Packaging as the customer's request
Delivery Time:	7 work days
Payment Terms:	L/C, T/T, Western Union,paypal
Supply Ability:	150000pcs per year

Contact Now

Aluminum Perforated Anti -Slip Grip Strut Walkway 3 Diamond 2" Channel Depth

Description

Material:	Aluminum Alloy	Standard Widths:	13-3/4"
Standard Height:	2"	Maximum Lengths:	6000mm
Applicatiom:	Safety Grating Stair Treads, Walkways	Custom Service:	Support
Highlight:	aluminum safety grating , safety grating walkway

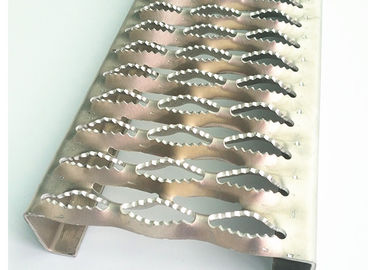

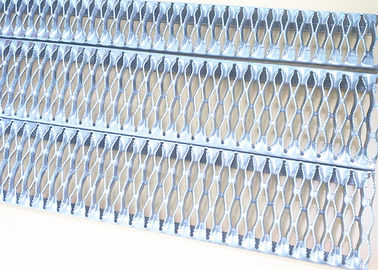

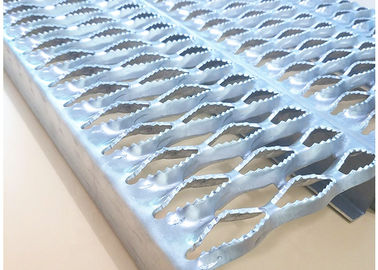

Aluminum Perforated Anti -Slip Grip Strut Walkway 3 Diamond 2" Channel Depth

Aluminum safety grating , Grip Strut Stair Treads are manufactured with welded end carrier plates, pre-punched with holes,

which allow the treads to be bolted to the stair stringers. In many cases, the side margin of the standard huihao channel

provides a defined visible nosing. Where increase visibility and safety are required, specify products with supplementary cast

abrasive nosings.

Aluminum Perforated Anti -Slip Grip Strut Walkway Specification

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

material: aluminum 1100 grade, 3001 grade, 5003 grade

length of Aluminum Perforated Anti -Slip Grip Strut Walkway : 1m, 2m, 2.5m, 3.0m, 3.66m

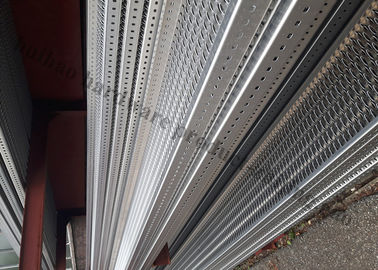

Aluminum Perforated Anti -Slip Grip Strut Walkway Application:

Aluminum Perforated Anti -Slip Grip Strut Walkway is widely used in industry and commerce,

platforms,
mezzanines,
racking,
shelving,
billboard catwalks,
highway signs,
rooftop walkways,
crossovers and ramps,
vented vertical partitions

Aluminum Perforated Anti -Slip Grip Strut Walkway Installation Wizard
