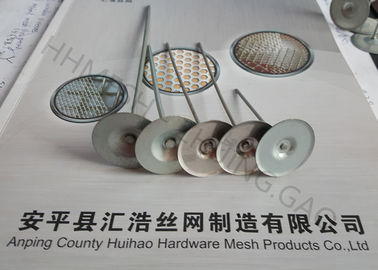

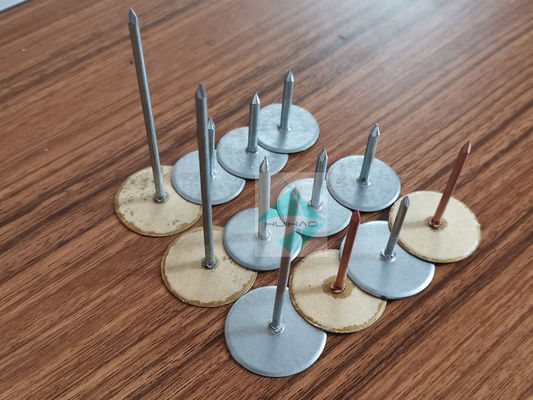

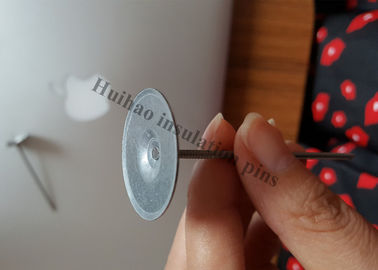

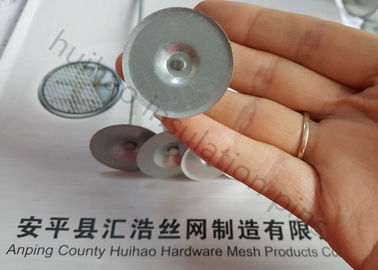

38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins

38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins
38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins
38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins

Large Image :  38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins

Product Details:
Place of Origin: China
Brand Name: Huihao
Model Number: Cup Head (CD) Weld Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1.500pcs per bag, 10 bags per carton.72 cartons per pallet 2.1000pcs per carton, 48 cartons per pallet. 3. to be your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 500000 pcs per 15 days

38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins

Description
Material: Carbon Steel Finished: Copper Coating Or Galvanized Steel
Pin Diameter: 2.7mm Etc. Head Diameter: 30mm Or 38mm
High Light:

cd weld pins

,

threaded stud welder



Galvanized Steel Cupped Head 38mm , Mini Cupped Head CD Weld Pins 12Gauge Dia



>>> Introduction To The Cup Head (CD) Weld Pins



This type of cup head Capacitor Discharge (CD) weld pins are welded through the insulation, allowing the fabrication to be done

in one easy step. The head of the pin is attached to the nail, so there is no need to add a washer. It reduces the labor time by

making a neat, finished appearance.



>>>Specification Of The Cup Head (CD) Weld Pins



Galvanized Steel Cupped Head 38mm , Mini Cupped Head CD Weld Pins 12Gauge Dia



Cup Head (CD) Weld Pins



Material Length Pin Diameter Head Diameter
Galvanized Steel 3/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 3/4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 7/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-1/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-1/4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-5/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-7/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2-1/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2-1/4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 3" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 3-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 4-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 5" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 5-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 6" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 8" 12Ga (2.7mm) 1-1/2" (38mm)



MATERIAL PIN WASHER
LOW CARBON STEEL LOW CARBON STEEL
C - 0.23% max P - 0.04% max. C - 0.23% max P - 0.04% max.
Mn - 0.90% max. S - 0.05% max Mn - 0.90% max. S - 0.05% max
MECHANICAL PROPERTIES Values available upon request Values available upon request
PLATING Standard Pin is Galvanized Standard Washer is Galvanized
Copper Plated is available
BEVEL Washer edge is beveled to prevent cutting of insulation material
STAINLESS STEEL Not standard, but available by special order
PAPER INSULATING WASHERS Available, upon request, for welding through foil faced insulation



Application


1: Position insulation
2: Press cup head pin through insulation
3: Weld in place to complete installation



38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 0

38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 1



38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 2

38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 3



>>> Package



1.500pcs per bag, 10 bags per carton.72 cartons per pallet

2.1000pcs per carton, 48 cartons per pallet.

3. to be your requirements



38MM Galvanized Steel Cupped Head Weld Pins , Mini Washer Duct Liner CD Weld Pins 4
