Product Details:
|
| Material: | Mild Steel | Finished: | Copper Coating Or Galvanized |
|---|---|---|---|
| Diameter: | 10 Gauge / 12Gauge / 14 Gauge / 3mm | Length: | 25.4 -250mm |
| Type: | Capacitor Discharge Weld Pins | Machine: | Arc |
| Highlight: | copper plated insulation pins,threaded stud welder |
||
>>> Introduction To The Capacitor Discharge Weld Pins
CD weld insulation pins are used for attaching insulation to various metals, with the use of a CD welder. After the pin is
welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
10 Ga. (0.135") Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
---> Nail point is standard - available with "blunt end" as special order.

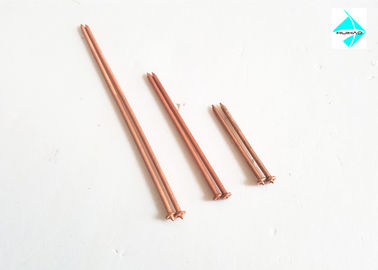

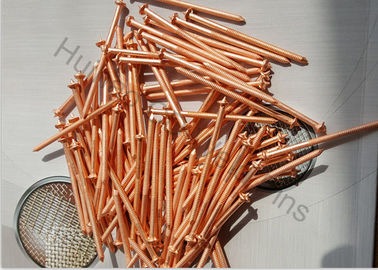

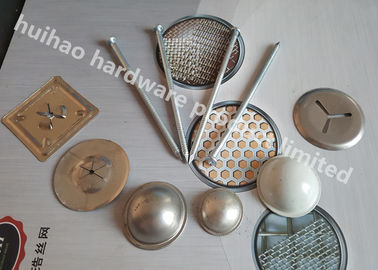

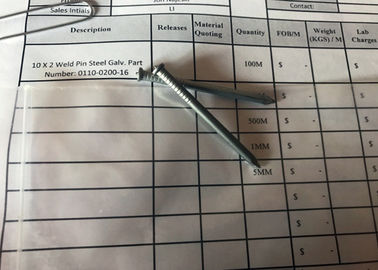

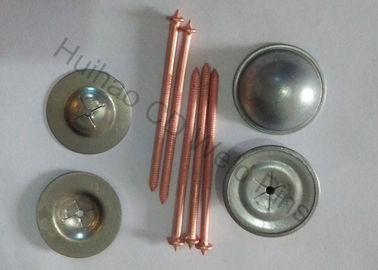

Images of Capacitor Discharge Weld Pins
>>> Application Of The Capacitor Discharge Weld Pins
Being in use of car manufacturing, train stations, Industrial building, shipbuilding, household adornment, high stress
environment such as off road construction, large expansion bridges, skyscrapers, power plant, military defense vehicles,
and equipment in high temperature environment.
