Product Details:
|
Product Name: | Aluminium CD Pins | Material: | Aluminum, Steel, Ss |
---|---|---|---|
Surface Treatment: | Copper Plated, Galvanized | Weld Pin Length: | 25mm-250mm |
Pin Diameter: | 10 Ga ,12 Ga | Application: | Military Defense Vehicles, Shipping Building |
Highlight: | copper plated insulation pins,threaded stud welder |
what is weld CD pins?
The Stud Welding Nails is a capacitor discharge weld insulation fastener, It also named CD pins, welded nails ans stud pins.
include three types:
key words:Insulation Pin /stud pin / welding pin/ stud welding accessories / weld pins / stud welder pins
Material : Copper Plated , Stainless Steel, special order is aluminum alloy material
surface treatment: copper plated, zinc plated for mild steel, polish is for stainless steel 304/316/316l
fixing part: round type self locking washer, suqare type self locking clips and dome caps
Stud Welding Nails/CD pins specification
Size(D) |
Pin Diameter(D) |
FD (Steel) |
FD (Aluminum) |
14GA |
0.080'' |
0.160'' |
- |
12GA |
0.105'' |
0.180'' |
0.235'' |
3MM |
0.118'' |
0.190'' |
0.240'' |
10GA |
0.135'' |
0.195'' |
0.255'' |
Application of the Stud Welding Nails/CD pins
![]() |
these Stud Welding Nails work with a stud welding machine, weld the pins on the sheet metal, then put the insulation through the welding pins, press a self locking washer onto the pin, bend over or clip off the pin to finish fastening insulation installation. |
![]() |
CD pins is used in Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment . |

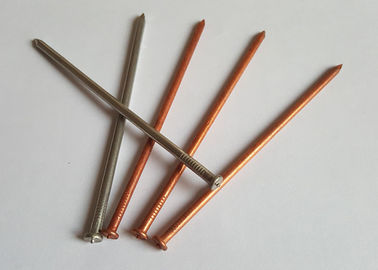

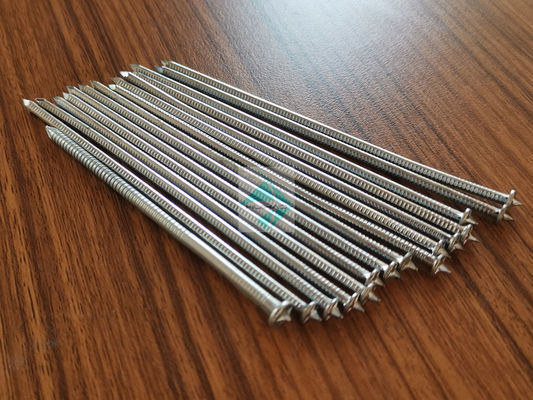

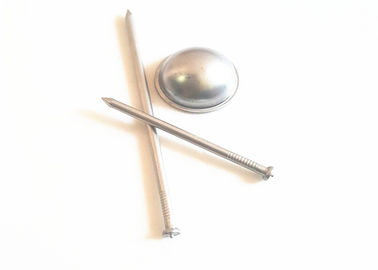

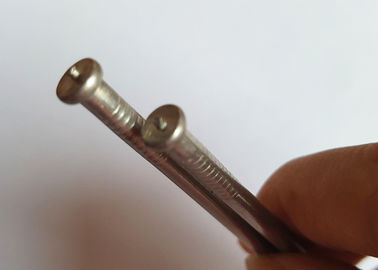

Images of CD pins
Packaging of the Stud Welding Nails/CD pins
Plastic bags and cartons +wooden case
product details |
box size |
quantity / box |
weight / box |
11ga 2" long CD pins |
26x26x8cm |
4000pcs |
10.8kgs |
11ga 3" long CD pins |
26x26x8cm |
2500pcs |
4.70kgs |
11ga 3-1/2" long CD pins |
26x26x8cm |
2500pcs |
5.50kgs |
11ga 4" long CD pins |
26x26x8cm |
2500pcs |
6.20kgs |
11ga 5" long CD pins |
26x26x11cm |
2500pcs |
7.60kgs |
we can't list every size for packing, we can list some sizes for indoemation
huihao company advantages
Fully automatic production line, technical R&D team, marketing team, after-sales service team, packaging design team
