Product Details:
|
| Name: | Insulation Spindle | Material: | Mild Steel |
|---|---|---|---|
| Surface Treatment: | Copper Plate | Size: | 2.0mmx50mm |
| Small Order: | Available | Sample: | Support |
| High Light: | copper plated insulation pins,threaded stud welder |
||

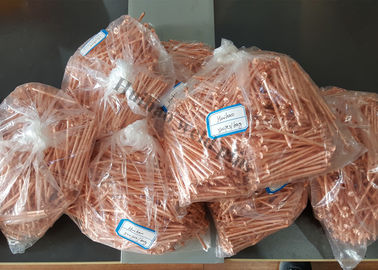

Insulation Spindle are used for attaching insulation to various metals, with the use of a CD welder. After the pin is welded
in place, the insulation is impaled on the pin and secured with a self-locking washer.
Insulation Spindle Other specifications:
Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
Nail point is standard - available with "blunt end" as special order.
|
Size |
D |
FD (Steel) |
FD (Aluminum) |
|
14GA |
0.080 |
0.160 |
- |
|
12GA |
0.105 |
0.180 |
0.230 |
|
3MM |
0.118 |
0.190 |
0.240 |
|
10GA |
0.135 |
0.195 |
0.250 |
Mild Steel Insulation Spindle Materials
Low Carbon Steel
|
C - 0.23% max. |
P - 0.04% max. |
|
Mn - 0.90% max. |
S - 0.05% max. |
Stainless Steel AISI grade - 302/304/305 std.Other grades available upon request.
Aluminum Alloy - 1110-H14 std. Other alloys
welding machine- capacitor discharge CD stud welder welding machine M3-M8 220V
Custom Self Locking Washers Caps
stainless steel and galvanized Insulation Clips with plastic coating
d1 = 40mm
d2 = 2mm, 2,7mm, 3mm,4mm, 5mm, 6mm
andere Abmessungen,sind lieferbar,other dimensions
Available for all of our different insulation pins diameters!
Colours: White, grey or black
Self-extinguishing
