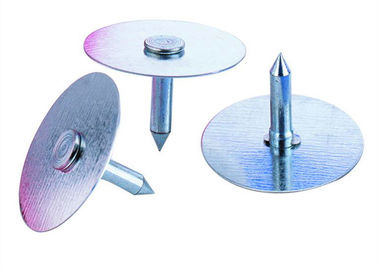

DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC

DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC
DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC
DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC

Large Image :  DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Quilting Weld Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Quilting Weld Pins / Cup Head Pin1. 1000pcs per carton, 64 cartons per pallet. 2. to be your requirements.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 300000pcs per 20 days

DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC

Description
Product Name: Quilting Weld Pins Material: MILD STEEL, STAINLESS STEEL
Pin Thickness: 3.5mm Length: More Than 1/2"
Head Diamter: 25.4mm Surface Treatment: Copper Platede, Galvanized
High Light:

cd weld pins

,

threaded stud welder



1/2" Quilting Weld Pins , Cup Head Pin for DuroDyne Resistance Welding Equipment



Quilting Weld Pins , Cup Head Pin Materials


Low Carbon Steel - Pin / Washer

  • C - 0.23% max. P - 0.04% max.
  • Mn - 0.90% max. S - 0.05% max.

Quilting Weld Pins , Cup Head Pin Plating


Galvanized is standard. Copper plating is available upon special request.
Standard Washer is galvanized.


Quilting Weld Pins , Cup Head Pin Bevel


Washer edge is beveled to prevent cutting of insulation material. Flat washer style also standard. Both styles Auto-Feed quality.


Quilting Weld Pins , Cup Head PinApplication
This cup head pin is for use with Duro-Dyne auto feed resistance welding equipment.




Type D WD Min. L
CM10 0.135 1.000 0.500

Cup Head:
Reduces jams and machinery down time while preserving the insulation.

Contact Head:
Oversized head increases the welding surface, resulting in a reduction in misfires and superior strength.

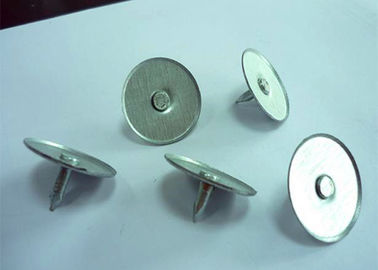

DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC 0

Point:
Forged diamond point for strength and weld consistency.

Shaft:
High tempered shaft for strength and consistency.

stainless steel Quilting Weld Pins , Cup Head Pin



Each Quilting Weld Pins , Cup Head Pin is precisely formed to provide optimum electrical resistance and each cap and shank assembly is securely

swaged so that pins ill feed without jamming, even in older welders. The result is continuous production without the expense of clearing track jams or

refastening where other pins could fail.

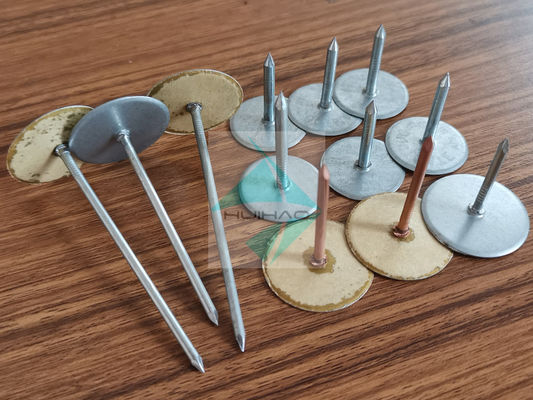

DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC 1

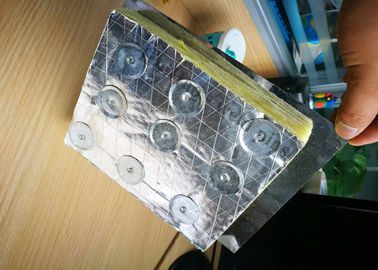

DuroDyne Resistance Welding Equipment Beveled Head 3/8" Quilting Weld Pins For HVAC 2
What Quilting Weld Pins , Cup Head Pin


PowerPoint Weld pins permanently attach insulation to galvanized steel in the fabrication of ductwork. PowerPoint Weld pins withstand a tensile pull

of at least 120 pounds in sheet metal and can be used in conjunction with adhesives on any galvanized sheet metal with lock forming qualities of 26

gauge and heavier.


Composition and Materials


The fastener head, shank and point are manufactured from a special carbon alloy steel. A 1" diameter retaining cap fabricated from cold rolled steel

is mechanically affixed to the driven end of the fastener.



Industry Standards


PowerPoint Weld pins meet and exceed the latest SMACNA (Sheet Metal and Air Conditioning Contractors National Association) standards, published

in their HVAC DUCT CONSTRUCTION STANDARDS 1995, for low and high velocity ductwork. They are used by leading air-conditioning, sheet metal

and mechanical contractors for ductwork in commercial buildings.


Technical Data


Corrosion Resistance
PowerPoint Weld pins are plated with .0002" to .0003" of zinc and receive a final chromate dip. This plating exceeds

current SMACNA standards for corrosion resistance.


Retaining Cap


The beveled edge retaining cap is sufficient in size and design to depress the surface of the insulation without tearing

or cutting it. The cap does not protrude into the air stream to create noise or interfere with air movement in the duct.


Temperature Range


PowerPoint Weld pins function properly over normally accepted operating range of temperatures of 32 degrees F to 250 degrees F and are not adversely

affected at temperatures of 0 degrees F to 550 degrees F.
